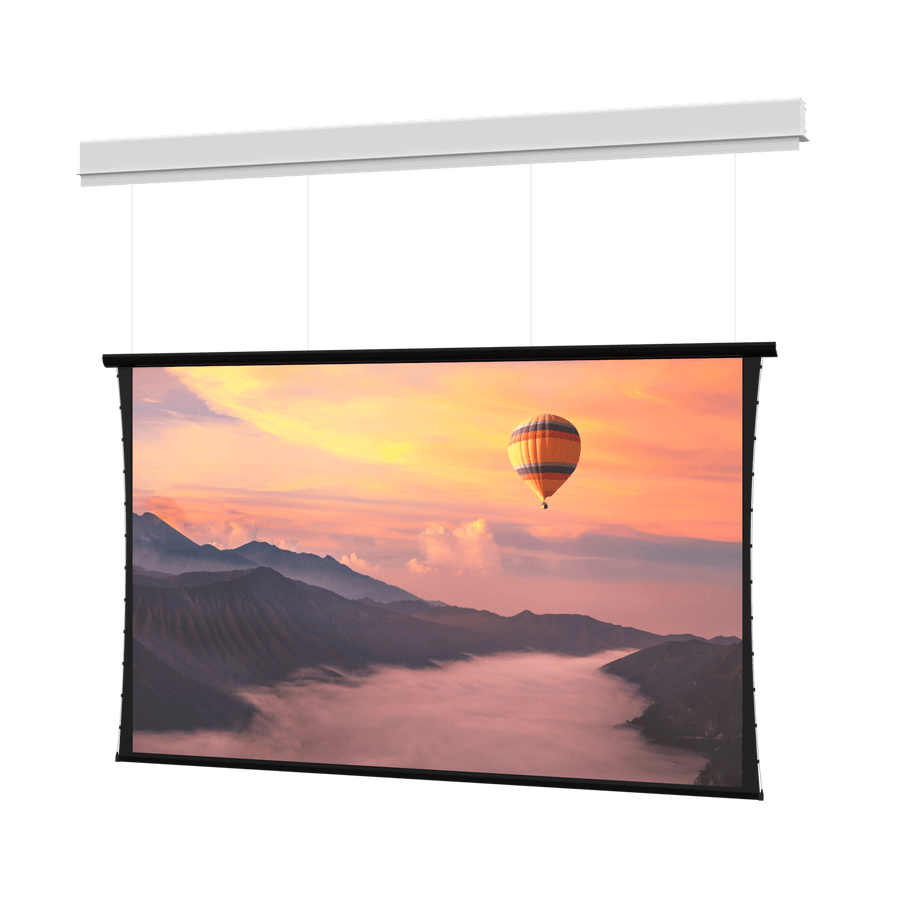

Da-Lite Myriad Conceal, 108" x 192" with HD Progressive 1.3 - DL100278LB
Ceiling recessed electric screen, 108" x 192" (220" diagonal) with HD Progressive 1.3 surface and SightLine cable drop
The Da-Lite DL100278LB is a Myriad Conceal series ceiling recessed electric screen designed for high-performance front projection. Measuring 108" x 192" with a 220 in (558.8 cm) diagonal, this 16:9 HDTV format screen utilizes an HD Progressive 1.3 surface for high-resolution imagery. This SKU is a Case/Box Only for Rough-In, allowing for a two-stage installation: the screen case can be installed during the rough-in construction phase, while the screen surface assembly is added during the finishing stage. This model features Da-Lite's SightLine cable drop, which elegantly suspends the screen surface and eliminates the black drop typically seen above the projection area. This feature provides a variable vertical placement for the screen with a standard cable drop distance of up to 16’ (5 m) between the ceiling and the top of the screen, preserving architectural interests and allowing for camera or speaker placement in the space above. The unit operates on a standard 120V (60Hz) motor and includes low voltage control. This TAA compliant product is manufactured in the US.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 220 in (558.8 cm) |
| Screen Height | 108 in (274.3 cm) |
| Screen Width | 192 in (487.7 cm) |
| Shipping Weight | 572 lbs (259.5 kg) |
| Size | 108" x 192" or 220" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Low Voltage Control |
| Drop Type | SightLine Cable Drop |
All other specifications 10
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Case/Box Only for Rough-In |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Surface | HD Progressive 1.3 |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Will the Da-Lite DL100278LB fit my ceiling setup?
This is a ceiling recessed application designed for Myriad Conceal series installations. It is a Case/Box Only for Rough-In, allowing the case to be installed during the construction phase.
What is the benefit of the SightLine cable drop on this screen?
The SightLine feature elegantly suspends the surface to eliminate black drop. It allows for variable vertical placement between the ceiling and the top of the screen up to 16' (5 m).
What do I need to buy to control this screen?
This unit features built-in low voltage control. Compatible control options include the Da-Lite DL16622 Smart Low Voltage Wall Switch or various Da-Lite Screen Controllers like the DL16522.
Is the DL100278LB TAA compliant?
Yes, this product is TAA compliant and is manufactured in the US.
What kind of motor does this screen use?
The screen is equipped with a standard 120V (60Hz) motor for electric operation.
