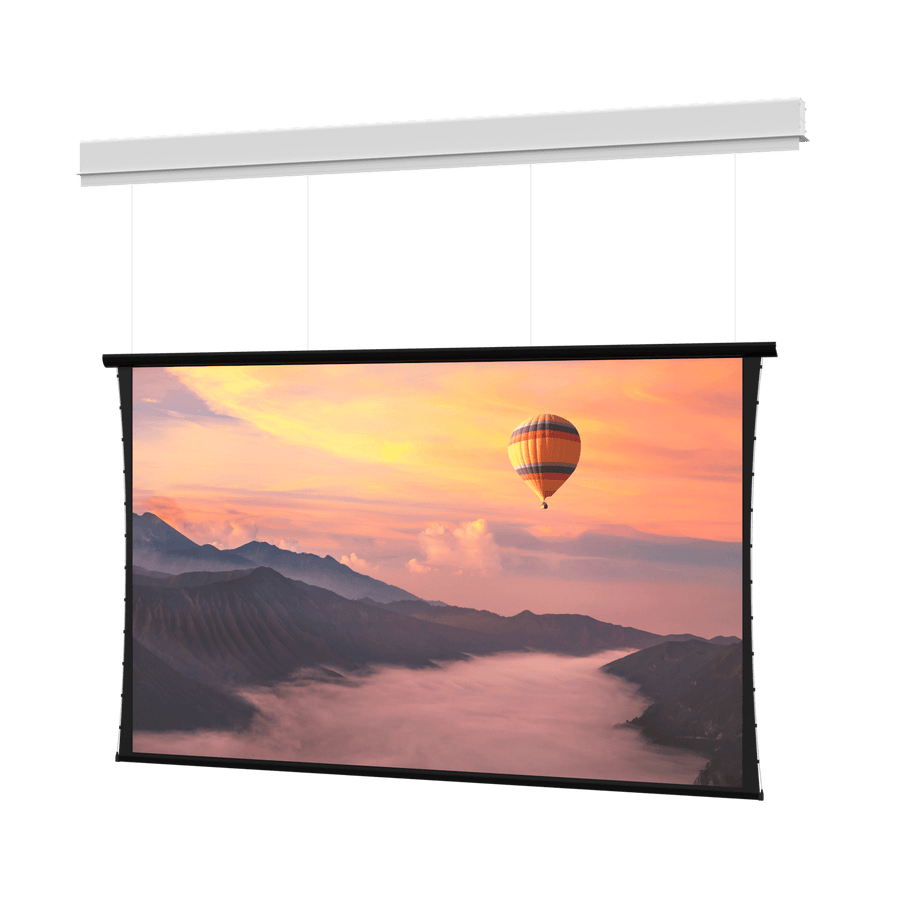

Da-Lite Myriad Conceal, 108" x 192" with HD Progressive 1.1 Contrast - DL100277ELB
Ceiling recessed electric screen with HD Progressive 1.1 Contrast surface, 108" x 192" size, and 220" diagonal
The Da-Lite DL100277ELB is a ceiling recessed electric screen designed for high-impact professional environments like lecture halls, conference centers, and large classrooms. This 220 in (558.8 cm) diagonal model features an HDTV (16:9) format with a 108 in (274.3 cm) height and 192 in (487.7 cm) width. It is equipped with an HD Progressive 1.1 Contrast surface, optimized for front projection. This unit utilizes SightLine Cable Drop technology, which elegantly suspends the screen surface to eliminate black drop, creating a clean look while preserving architectural space for speakers or cameras. The DL100277ELB is a Case/Box Only for Rough-In selection, allowing the screen case to be installed during the initial construction stage while the surface assembly is completed during the finishing stage. It features a 220V (50Hz) motor for export and includes low voltage control for integrated system management.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 220 in (558.8 cm) |
| Screen Height | 108 in (274.3 cm) |
| Screen Width | 192 in (487.7 cm) |
| Shipping Weight | 572 lbs (259.5 kg) |
| Size | 108" x 192" or 220" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Low Voltage Control |
| Drop Type | SightLine Cable Drop |
All other specifications 10
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Case/Box Only for Rough-In |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Surface | HD Progressive 1.1 Contrast |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Will this Myriad Conceal screen work with my existing control system?
The DL100277ELB features built-in low voltage control. For specialized control options, you can integrate Da-Lite Smart Low Voltage Wall Switches or controllers like the DL16622.
How does the SightLine Cable Drop affect the installation height?
SightLine technology accommodates variable vertical placement, allowing a drop distance of up to 16' (5 m) between the ceiling and the top of the screen surface.
Is this screen suitable for a recessed ceiling installation?
Yes, this is a ceiling recessed application. The Myriad Conceal series includes ceiling trim designed to conceal the rough opening for a finished look.
What additional accessories are required for operation?
You can add remote operation using the DL16522 (RF/BLE) or DL16524 (Infrared) controllers, or utilize the DL16521 PoE Injector for specialized connectivity.
Is the DL100277ELB TAA compliant?
Yes, this model is TAA compliant and manufactured in the US, making it suitable for projects requiring adherence to these standards.
