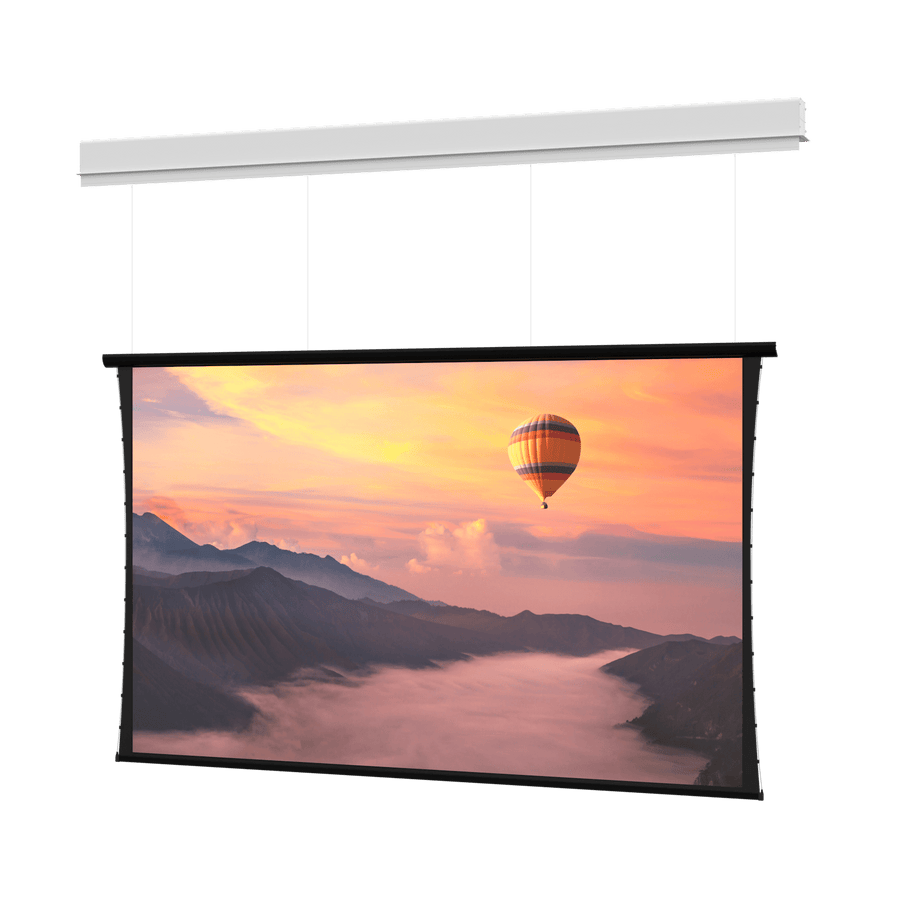

Da-Lite Myriad Conceal, 108" x 192" with HD Progressive 1.1 Contrast - DL100277EL
Ceiling recessed electric screen, 108" x 192" size, featuring HD Progressive 1.1 Contrast surface and SightLine Cable Drop technology
The Da-Lite Myriad Conceal DL100277EL is a ceiling recessed electric projection screen designed for large venue applications such as lecture halls, conference centers, and hotel ballrooms. This 108" x 192" (220" diagonal) screen utilizes an HD Progressive 1.1 Contrast surface to provide high-resolution projection for front projection environments. It features the SightLine Cable Drop system, which elegantly suspends the screen surface to eliminate the black drop traditionally seen above the image, preserving architectural interests and allowing for camera or speaker placement in the space above. This model is equipped with a 220V (50Hz) motor intended for export and includes low voltage control for integrated system management. Because it is designed with ceiling trim in place, the rough opening can be concealed during installation. This SKU is TAA compliant and features a standard white powder-coated aluminum finish. The screen is an electric, HDTV (16:9) format solution built for professional large-scale installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 220 in (558.8 cm) |
| Screen Height | 108 in (274.3 cm) |
| Screen Width | 192 in (487.7 cm) |
| Shipping Dimensions | 226.5" x 13" x 20" (575.3 x 33 x 50.8 cm) |
| Shipping Weight | 572 lbs (259.5 kg) |
| Size | 108" x 192" or 220" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Low Voltage Control |
All other specifications 13
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Complete Screen |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.1 Contrast |
| TAA Compliant | Yes |
| UPC | 840236915132 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
What is the vertical drop distance for the SightLine Cable Drop system?
The SightLine system accommodates a variable vertical placement between the ceiling and the top of the screen for drop distances up to 16' (5 m) (standard).
What do I need to buy to control this screen?
This screen features low voltage control. Compatible controllers include the Da-Lite Screen Controller with Infrared Remote (DL16524) or RF (BLE) options like the DL16522 or DL16523.
Does this screen include a tensioned surface?
The DL100277EL is a complete screen assembly featuring a high-resolution surface designed for large venue front projection.
Can I use this in a TAA compliant project?
Yes, this product is TAA compliant and is manufactured in the US (Federal Ops Country of Origin: US).
Which document should I use for submittals?
You can refer to the Myriad Conceal Specification Data Sheet (PDF) or the Da-Lite CSI 3-Part Specifications for technical submittal details.
