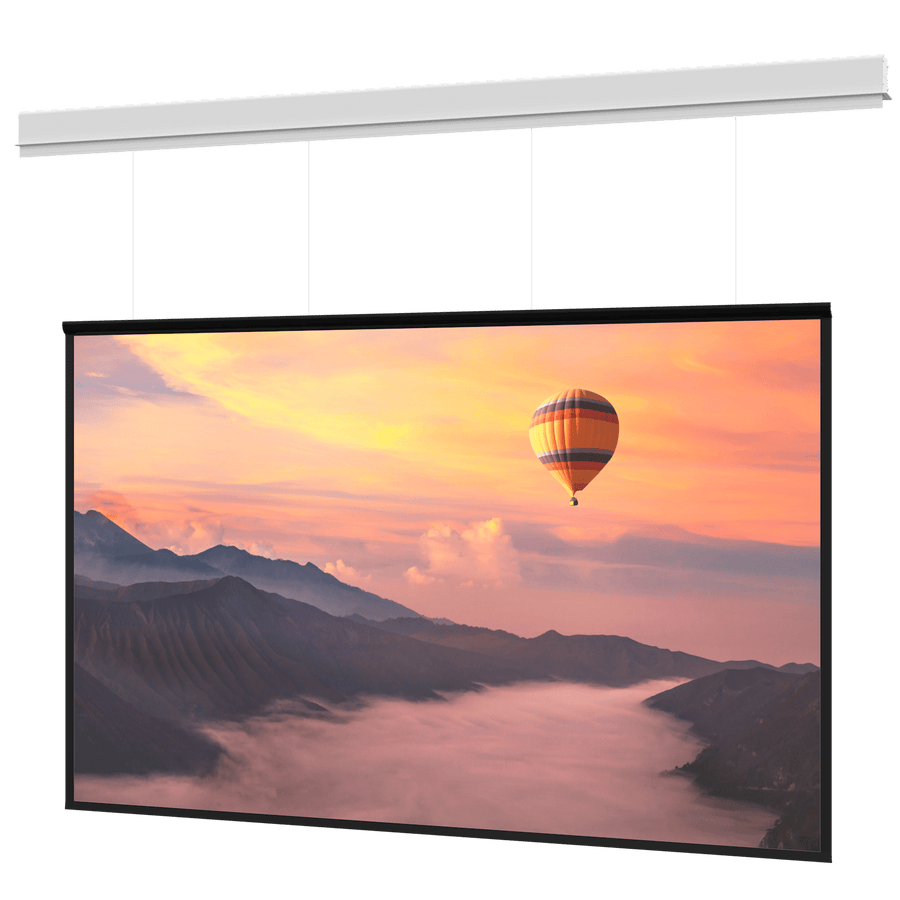

Da-Lite Myriad Conceal, 105" x 168" with Matte White - DL100317ELF
Ceiling recessed electric screen, 105" x 168" (198" diagonal), non-tensioned matte white surface with SightLine cable drop
The Da-Lite DL100317ELF is a Myriad Conceal series ceiling recessed electric screen designed for high-end professional environments. This specific configuration features a non-tensioned matte white surface with a 16:10 Wide screen format, providing a 198 in (502.9 cm) diagonal area for front projection applications. This SKU is the Surface, Roller, and Motor Assembly only; the case and box must be ordered separately. It utilizes SightLine technology, a thin cable drop feature that elegantly suspends the screen surface to eliminate the black drop typically seen at the top of a projection area. Because the SightLine cables accommodate a variable vertical placement, they can handle drop distances of up to 16' (5 m) between the ceiling and the top of the screen. This assembly is TAA compliant and is built for ceiling recessed installation. The motor is configured as a 220V (50Hz) model for export, and the unit includes built-in low voltage control for seamless integration into automated systems.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 198 in (502.9 cm) |
| Screen Height | 105 in (266.7 cm) |
| Screen Width | 168 in (426.7 cm) |
| Shipping Weight | 496 lbs (225 kg) |
| Size | 105" x 168" or 198" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Low Voltage Control |
| Drop Type | SightLine Cable Drop |
All other specifications 10
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Does this screen require a separate case?
Yes, this specific SKU is the Surface, Roller, and Motor Assembly only; the case and box must be ordered separately.
What is the benefit of the SightLine cable drop feature?
The SightLine drop elegantly suspends the screen surface to eliminate the black drop above the projection area and allows for variable vertical placement.
What do I need to order for control and remote operation?
You can integrate various controllers such as the Da-Lite Screen Controller with RF (BLE) Remote (DL16522) or an Infrared Remote (DL16524).
Will this screen fit my 16:10 aspect ratio display?
Yes, this DL100317ELF model is specifically configured in a 16:10 Wide screen format.
What is the vertical adjustment range for the cable drop?
The SightLine cables accommodate a range of drop distances up to 16' (5 m) between the ceiling and the top of the screen.
