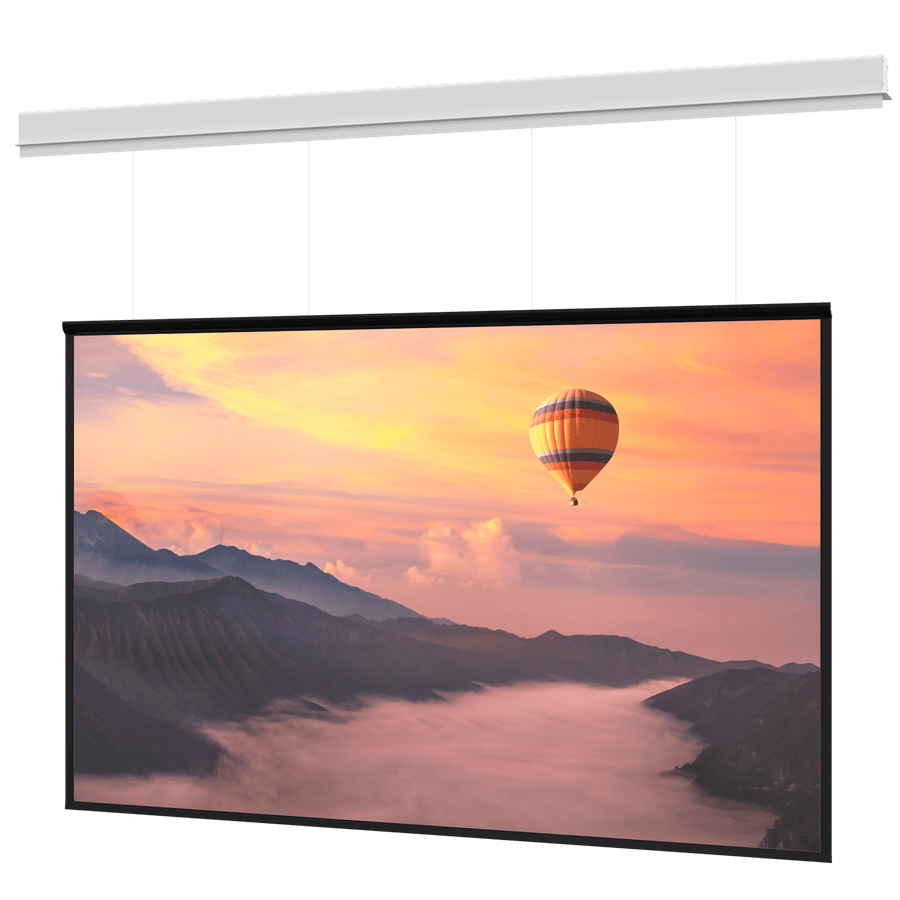

Da-Lite Myriad Conceal, 105" x 168" with Matte White - DL100317EL
Ceiling recessed electric screen, 105" x 168" width, 16:10 wide format, with SightLine cable drop and Matte White non-tensioned surface
The Da-Lite Myriad Conceal DL100317EL is an electric, ceiling recessed projection screen designed for large venue environments like conference centers, lecture halls, and hotel ballrooms. This specific SKU features a 105" x 168" dimension with a 198" diagonal and a 16:10 wide screen format. It utilizes a non-tensioned Matte White surface designed for front projection. A key feature of this Myriad Conceal model is the SightLine cable drop, which elegantly suspends the screen surface to eliminate the black drop typically seen in standard installations. This allows for a variable vertical placement between the ceiling and the top of the screen, accommodating a drop distance of up to 16’ (5 m). This configuration is ideal for preserving architectural interest or providing clearance for camera and speaker placement. This unit includes low voltage control and is TAA compliant. The screen case is manufactured in the US, making it suitable for global rollouts.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 198 in (502.9 cm) |
| Screen Height | 105 in (266.7 cm) |
| Screen Width | 168 in (426.7 cm) |
| Shipping Dimensions | 196.5" x 13" x 20" (499.1 x 33 x 50.8 cm) |
| Shipping Weight | 496 lbs (225 kg) |
| Size | 105" x 168" or 198" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Low Voltage Control |
All other specifications 13
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Complete Screen |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 840236915651 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
What is the screen size and aspect ratio for DL100317EL?
This screen measures 105" x 168" with a 198" diagonal and uses a 16:10 Wide screen format.
How does the SightLine cable drop affect installation?
The SightLine feature suspends the surface to eliminate the black drop area and allows for a variable drop distance of up to 16’ (5 m) from the ceiling.
Does this screen require a specific controller?
This model includes built-in low voltage control and is compatible with Da-Lite controllers such as the DL15316 or the DL16521 PoE injector system.
Is this screen TAA compliant for government contracts?
Yes, the DL100317EL is TAA compliant and is manufactured in the US.
Which document should I use for submittals or installation?
The Myriad Conceal Specification Data Sheet is available for submittals, and the Myriad Conceal Instructions PDF provides installation guidance.
