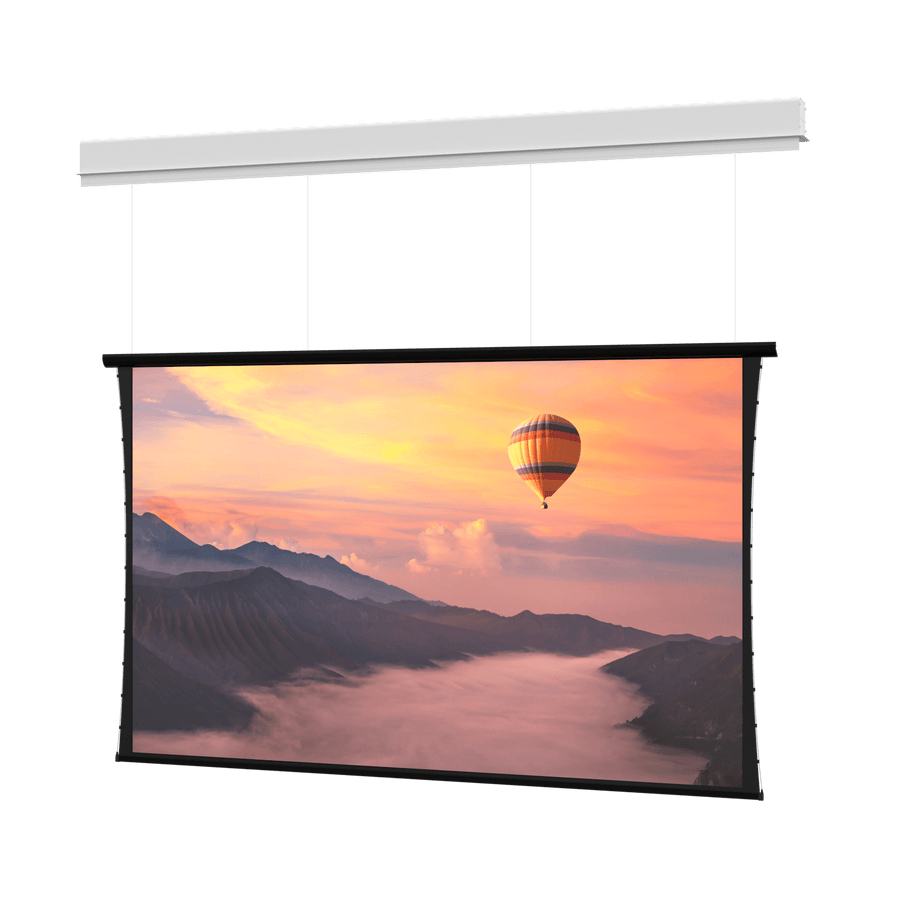

Da-Lite Myriad Conceal, 105" x 168" with Da-Mat - DL100288ELF
Recessed ceiling electric screen, 105" x 168", featuring Da-Mat surface and SightLine cable drop for elegant suspension
The Da-Lite DL100288ELF is a Myriad Conceal series ceiling recessed electric screen designed for professional environments like lecture halls, conference centers, and houses of worship. This 105" x 168" (426.7 mm x 266.7 mm) screen features a 198 in (502.9 cm) diagonal and utilizes a 16:10 wide screen format with a Da-Mat surface for standard resolution front projection. It utilizes SightLine cable drop technology to elegantly suspend the screen, eliminating the black border traditionally seen above the projection area. This specific SKU is the surface, roller, and motor assembly only; the case and box must be ordered separately. The assembly includes low voltage control and is configured with a 220V (50Hz) motor for export markets. This TAA compliant unit is manufactured in the US and provides a clean, architectural finish by concealing the rough opening with integrated ceiling trim.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 198 in (502.9 cm) |
| Screen Height | 105 in (266.7 cm) |
| Screen Width | 168 in (426.7 cm) |
| Shipping Weight | 515 lbs (233.6 kg) |
| Size | 105" x 168" or 198" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Low Voltage Control |
| Drop Type | SightLine Cable Drop |
All other specifications 10
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Surface | Da-Mat |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Is this screen part of a complete housing kit?
No, this SKU (DL100288ELF) is the surface, roller, and motor assembly only. The case and box must be ordered separately.
What is required for the installation of the SightLine drop?
The SightLine cable drop allows for variable vertical placement of the screen, accommodating cable drops up to 16' (5 m) between the ceiling and the top of the screen.
Does this screen require additional trim work?
The Myriad Conceal series is designed with ceiling trim in place to conceal the rough opening, which eliminates the need for additional finishing trim once installed.
What electrical requirements are needed for this model?
This unit is equipped with a 220V (50Hz) motor specifically designed for export markets and includes built-in low voltage control.
What accessories are compatible with this Myriad Conceal screen?
Compatible accessories include various Da-Lite controllers like the DL16523 (with PoE Injector) and wall switches such as the DL16622 Smart Low Voltage Wall Switch.
