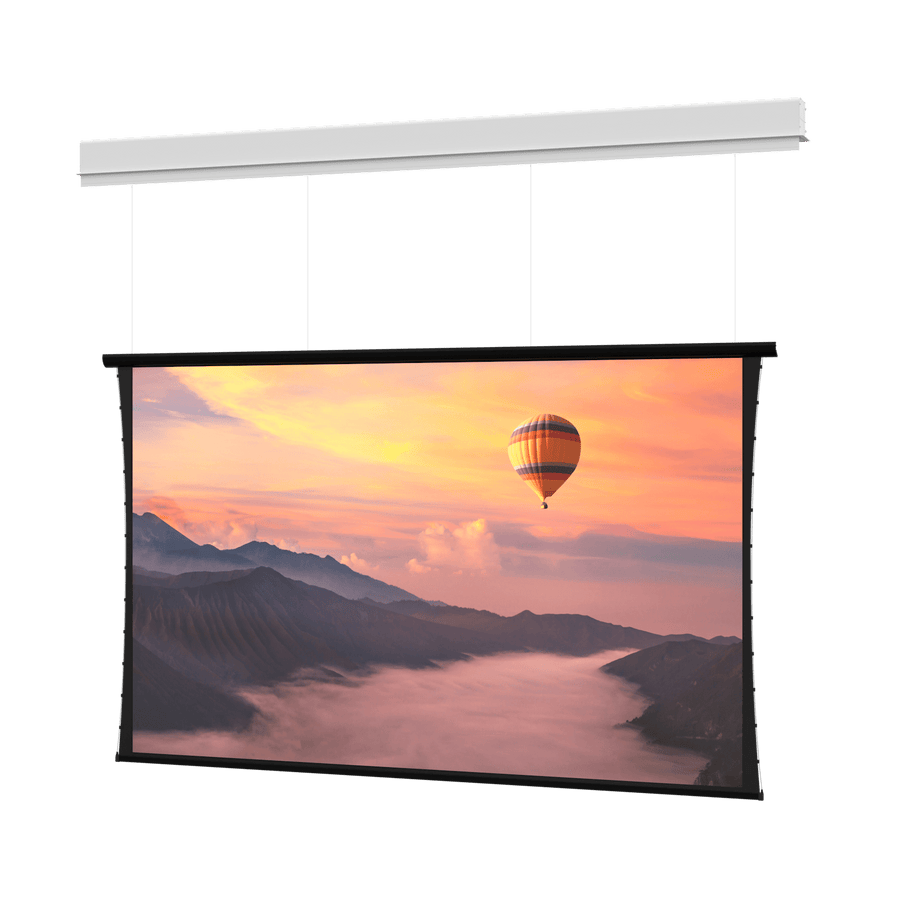

Da-Lite Myriad Conceal, 105" x 168" with Da-Mat - DL100288ELB
Ceiling recessed electric screen with Da-Mat surface, SightLine cable drop, and 16:10 wide format
The DL100288ELB is a ceiling recessed electric screen from the Myriad Conceal series designed for professional front projection applications. This 198" diagonal (502.9 cm) screen features a Wide 16:10 aspect ratio with dimensions of 105" (266.7 cm) in height and 168" (426.7 cm) in width. It utilizes the Da-Mat surface for standard resolution projection needs. This unit is a Case/Box Only for Rough-In selection, allowing the screen case to be installed during the initial rough-in construction stage while the surface assembly is completed during the finishing stage. It features SightLine technology, which uses a thin cable drop to elegantly suspend the screen surface and eliminate black drop, preserving architectural interest and providing space for camera or speaker placement. This model is TAA compliant and features a low voltage control system. The motor is configured for 220V (50Hz) for export markets.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 198 in (502.9 cm) |
| Screen Height | 105 in (266.7 cm) |
| Screen Width | 168 in (426.7 cm) |
| Shipping Weight | 515 lbs (233.6 kg) |
| Size | 105" x 168" or 198" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Low Voltage Control |
| Drop Type | SightLine Cable Drop |
All other specifications 10
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Case/Box Only for Rough-In |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Surface | Da-Mat |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Will this screen fit a 16:9 aspect ratio display?
No, the DL100288ELB is specifically configured for a Wide 16:10 screen format.
What is required for the ceiling installation?
This is a Case/Box Only for Rough-In selection, meaning the case is installed during the construction stage to conceal the rough opening.
What additional controllers are compatible with this screen?
Compatible control options include the Da-Lite Smart Low Voltage Wall Switch (DL16622) or various Da-Lite Screen Controllers like the DL16521 or DL16523.
How does the SightLine feature work?
The SightLine cable drop suspends the surface to eliminate the black border above the screen, and it accommodates a vertical drop distance of up to 16' (5 m).
Is this product TAA compliant?
Yes, this model is TAA compliant and is manufactured in the US.
