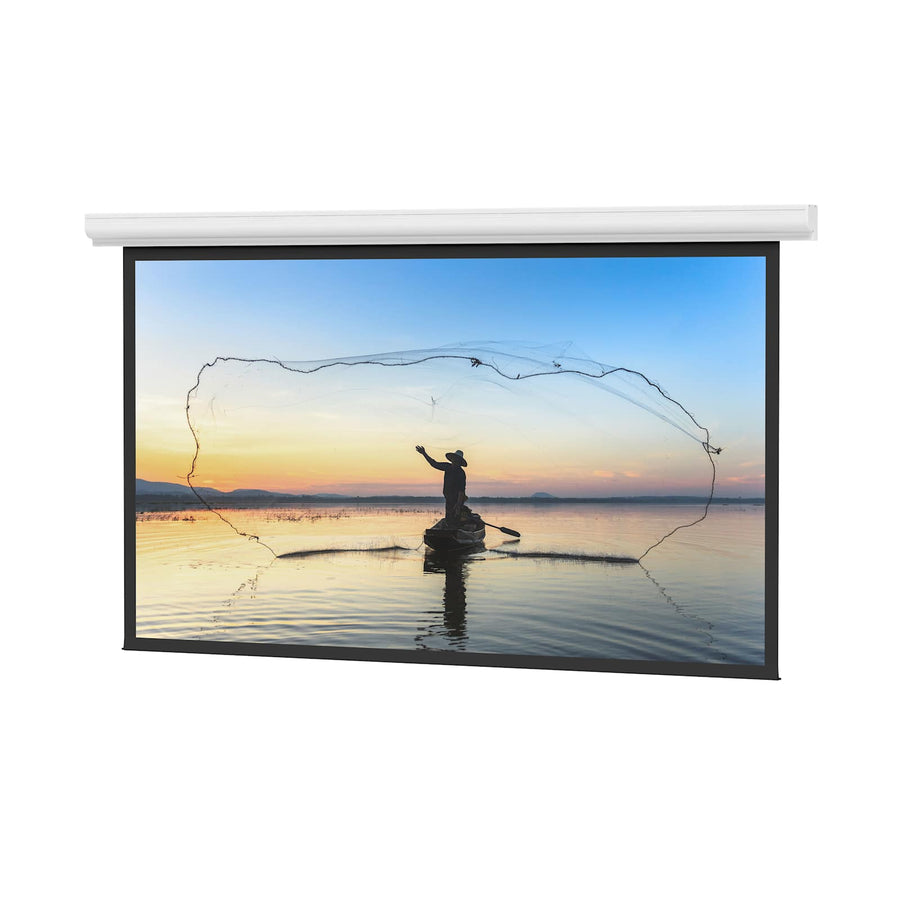

Da-Lite Designer Contour Electrol, 84" x 84" with High Contrast Matte White - 92662L
Square 84" x 84" electric projection screen with High Contrast Matte White surface and low voltage control capability
The Da-Lite 92662L is a square format Designer Contour Electrol electric screen measuring 84" x 84" with a 119 in (302.3 cm) diagonal. Designed for both ceiling and wall mounting, this series features a compact housing measuring 4 5/8” high by 4 3/32” deep. The unit utilizes a High Contrast Matte White non-tensioned surface to maintain projected brightness, supported by a standard black backing. This model is TAA compliant and features a standard 120V (60Hz) motor for front projection applications. For installation, this unit includes built-in low voltage control capability, allowing for integration with various control systems. The housing is finished in a standard white powder-coated aluminum, though black finishes are available upon request.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 119 in (302.3 cm) |
| Screen Height | 84 in (213.4 cm) |
| Shipping Weight | 42 lbs (19.1 kg) |
| Size | 84" x 84" |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
All other specifications 6
| Projection Type | Front Projection |
| Screen Format | Square |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Surface | High Contrast Matte White (non-tensioned) |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Low Voltage Wall Switch
40975$92.80
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
What is the control capability of the Da-Lite 92662L?
The 92662L features built-in low voltage control and is compatible with the Da-Lite Low Voltage Wall Switch (40975) for manual operation.
Can I use a remote control with this screen?
Yes, you can add wireless control by using a Da-Lite Screen Controller with an RF (BLE) remote (DL16522) or an Infrared remote (DL16524).
Is this screen suitable for front projection?
Yes, this model is specifically designed for front projection using the High Contrast Matte White surface.
What is the difference between the standard motor and the Agility option?
This SKU includes a standard 120V (60Hz) motor, whereas the Agility™ Battery Motor is an optional lithium-ion upgrade for wireless, non-wired installations.
What mounting options are available for this series?
The Designer Contour Electrol series is designed for either ceiling or wall mounting applications.
