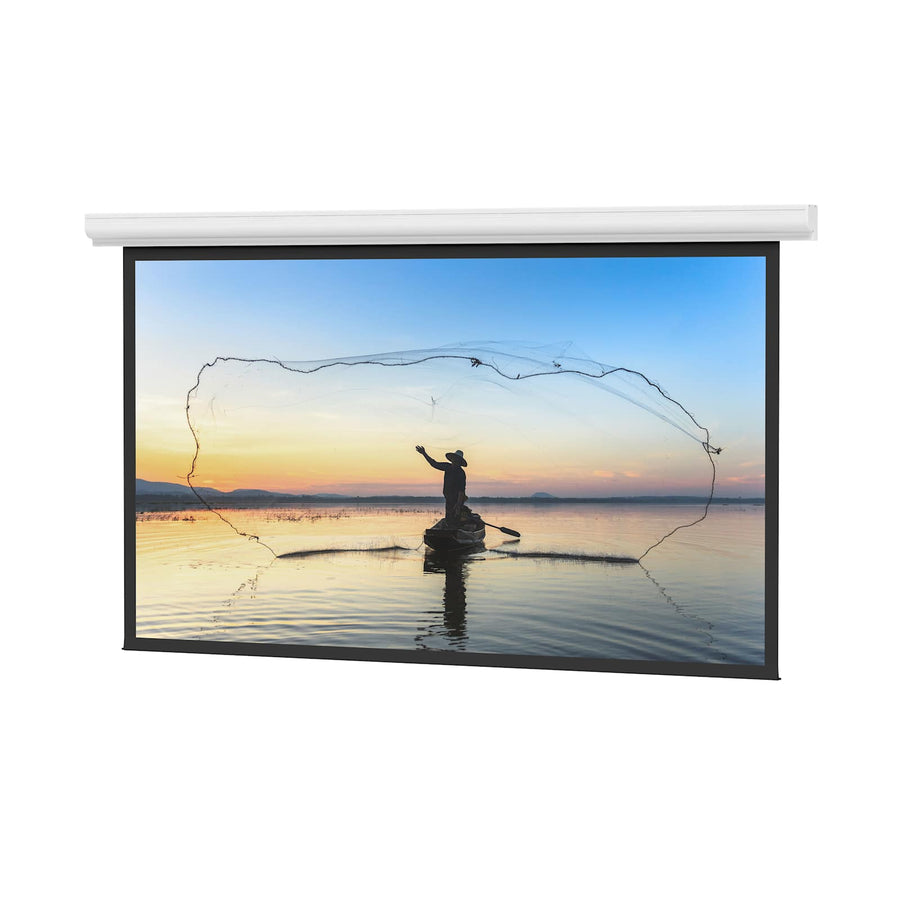

Da-Lite Designer Contour Electrol, 70" x 70" with High Contrast Matte White - 92661L
Electric square screen, 70" x 70" size, featuring High Contrast Matte White surface and low voltage control options
The Da-Lite 92661L is a 70" x 70" Designer Contour Electrol electric projection screen designed for both ceiling and wall mounting. This square format screen features a High Contrast Matte White non-tensioned surface and a standard 120V (60Hz) motor. The housing is compact, measuring 4 5/8" high by 4 3/32" deep, which allows for a low-profile installation in various environments. This model is TAA compliant and includes a standard black backing to help retain projected brightness. For specialized installation needs, the unit supports low voltage control via a Decora-style, three-position wall switch. While the standard configuration utilizes a 120V motor, the Designer Contour series also offers an optional Agility Battery Motor for environments where hardwiring is not feasible.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 99 in (251.5 cm) |
| Screen Height | 70 in (177.8 cm) |
| Shipping Weight | 40 lbs (18.1 kg) |
| Size | 70" x 70" |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
All other specifications 6
| Projection Type | Front Projection |
| Screen Format | Square |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Surface | High Contrast Matte White (non-tensioned) |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Low Voltage Wall Switch
40975$92.80
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Will the Da-Lite 92661L fit my projection setup?
This is a square 70" x 70" screen with a 99 in (251.5 cm) diagonal. It is designed for front projection using a High Contrast Matte White surface.
What are the mounting requirements for this screen?
The 92661L is designed for both ceiling and wall applications, featuring a slim housing that is 4 5/8" high and 4 3/32" deep.
Does this screen support low voltage control?
Yes, this model includes built-in low voltage control and is compatible with a Decora-style, three-position wall switch like the Da-Lite 40975.
What is the difference between this and the Agility Battery Motor version?
This SKU features a standard 120V (60Hz) motor, whereas the Agility Battery Motor is an optional lithium-ion version designed for wireless, no-wire installations.
Which documents are available for submittals?
Installers can access the Designer Contour Specification Sheet, Installation and Connections instructions, and BIM models through the resources tab.
