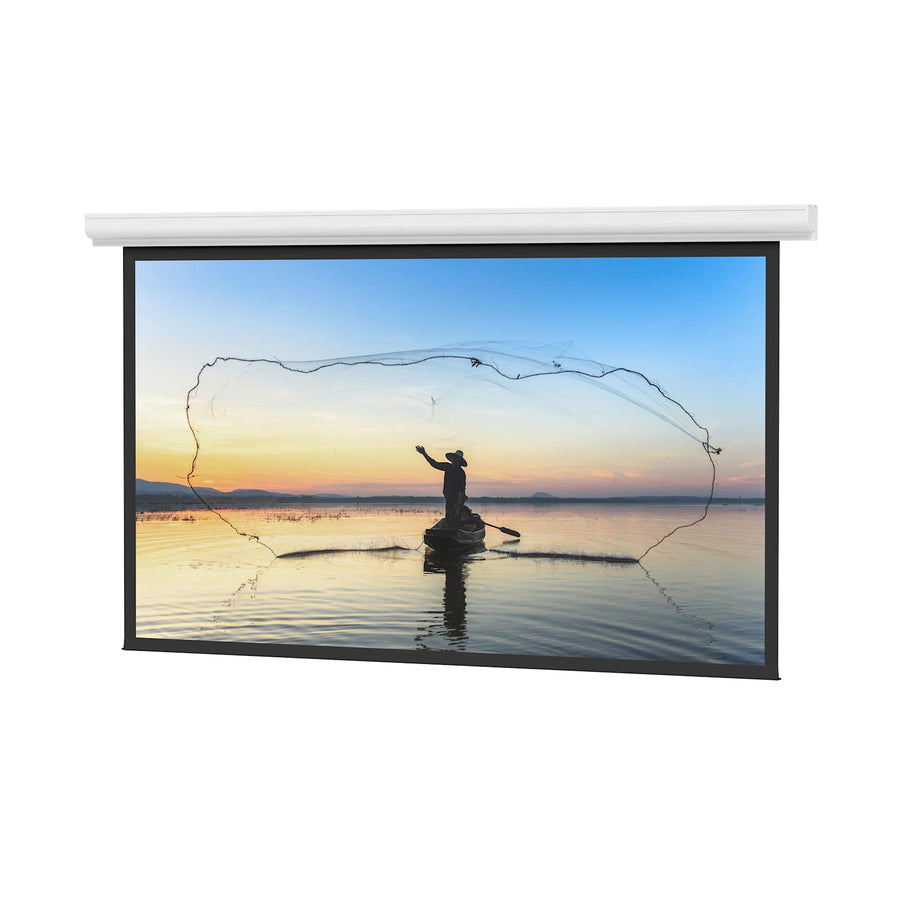

Da-Lite Designer Contour Electrol, 52" x 92" with High Contrast Matte White - 92671L
Electric projection screen with High Contrast Matte White surface, 52" x 92" dimensions, and 106" diagonal for ceiling or wall mounting
The Da-Lite 92671L is a Designer Contour Electrol electric screen designed for efficient ceiling or wall-mounted installations. This 52" x 92" unit features a 106" diagonal and is optimized for front projection using a High Contrast Matte White non-tensioned surface. The housing is compact, measuring only 4 5/8" high and 4 3/32" deep, making it a low-profile addition to any room. It utilizes a standard 120V (60Hz) motor and includes a black backing to help retain projected brightness. This SKU is TAA compliant and is available in a standard white powder-coated aluminum finish. For specialized control needs, the unit supports optional low-voltage control and is compatible with a variety of Da-Lite accessories to manage screen movement and integration.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 106 in (269.2 cm) |
| Screen Height | 52 in (132.1 cm) |
| Shipping Dimensions | 113" x 8" x 6" (287 x 20.3 x 15.2 cm) |
| Shipping Weight | 51 lbs (23.1 kg) |
| Size | 52" x 92" or 106" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
| Federal Ops Country of Origin | US |
All other specifications 9
| Motor | Standard 120V (60Hz) |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Surface | High Contrast Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 717068909007 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Low Voltage Wall Switch
40975$92.80
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Is the Da-Lite 92671L compatible with TAA requirements?
Yes, this model is TAA compliant and is manufactured in the US.
What type of control is required for this electric screen?
The 92671L features a standard 120V (60Hz) motor and includes built-in low voltage control capability.
Can I control this screen using a wall switch?
Yes, it is compatible with a Decora-style, three-position wall switch, such as the Da-Lite 40975 Low Voltage Wall Switch.
What screen surface is used on the 92671L?
This model uses a High Contrast Matte White non-tensioned surface with a standard black backing to help maintain projected brightness.
What accessories are available for screen control?
You can add various controllers, including the Da-Lite 15316 Screen Controller, or RF (BLE) and Infrared remote options like the DL16522 or DL16524.
