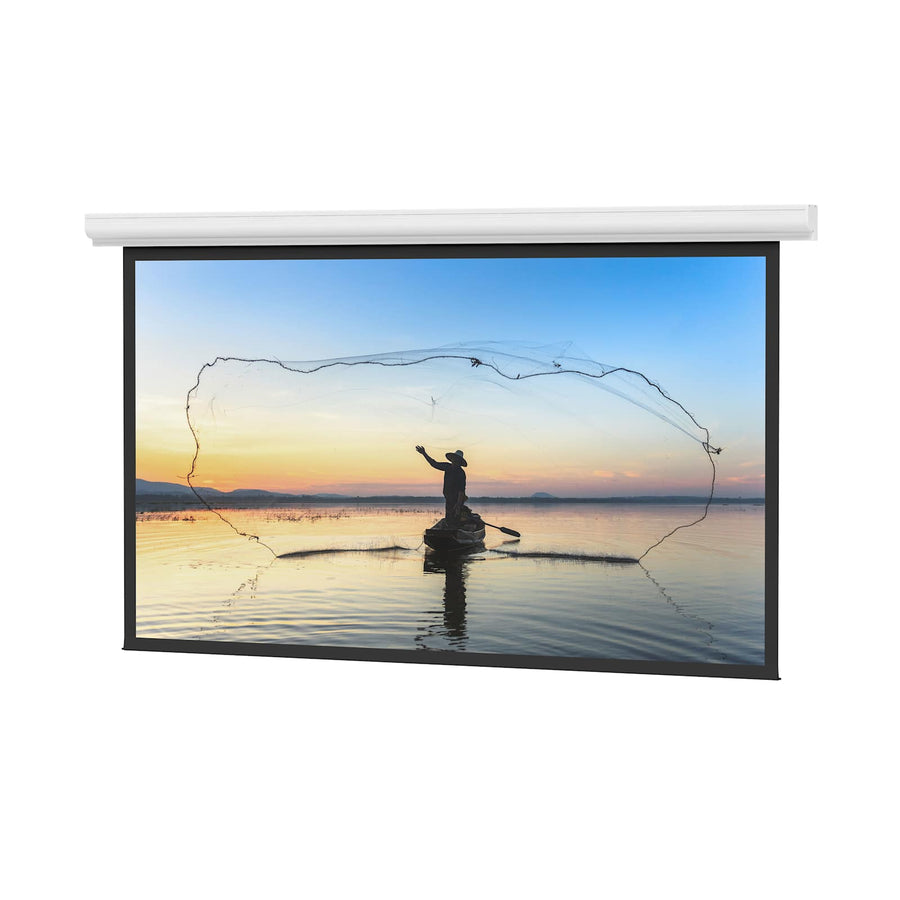

Da-Lite Designer Contour Electrol, 52" x 92" with High Contrast Matte White - 92671E
Electric projection screen for ceiling or wall mounting, 52" x 92" size with High Contrast Matte White surface
The Da-Lite 92671E is a Designer Contour Electrol electric projection screen designed for ceiling or wall applications. This 52" x 92" (106" diagonal) unit features a High Contrast Matte White non-tensioned surface and is optimized for front projection in a 16:9 HDTV format. The housing is compact, measuring only 4 5/8" high and 4 3/32" deep, making it a low-profile addition to professional environments. This specific model is equipped with a 220V (50Hz) motor intended for export markets. The screen features standard black backing to help retain projected brightness. For installers requiring specific control methods, this series supports optional low-voltage control via a Decora-style, three-position wall switch, such as the Da-Lite Low Voltage Wall Switch (40975). Additionally, an Agility Battery Motor (lithium-ion) can be added to provide wireless, wire-free operation in challenging retrofit locations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 106 in (269.2 cm) |
| Screen Height | 52 in (132.1 cm) |
| Shipping Weight | 51 lbs (23.1 kg) |
| Size | 52" x 92" or 106" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Projection Type | Front Projection |
All other specifications 5
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Surface | High Contrast Matte White (non-tensioned) |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Low Voltage Wall Switch
40975$92.80
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Will the 92671E work with my existing control system?
This screen supports optional low-voltage control. You can integrate a Decora-style three-position wall switch like the Da-Lite 40975 or use various Da-Lite Screen Controllers such as the DL16521 or DL16524.
Can I install this screen without running new electrical wiring?
Yes, the Designer Contour series offers an optional Agility Battery Motor (lithium-ion) which allows for wireless operation in historic buildings or environments where wiring electricity is difficult.
What is the screen surface used for?
This model uses a High Contrast Matte White non-tensioned surface designed for front projection to maintain brightness and clarity.
Does this model include a remote control?
This specific 92671E SKU includes a 220V (50Hz) motor for export. For wireless control, you can add accessories like the Da-Lite Screen Controller with RF (BLE) Remote (DL16522).
Where can I find the installation and BIM files for this screen?
The Designer Contour series provides comprehensive technical resources, including the Installation and Connections PDF, Specification Sheets, and 3D BIM Models for submittals.
