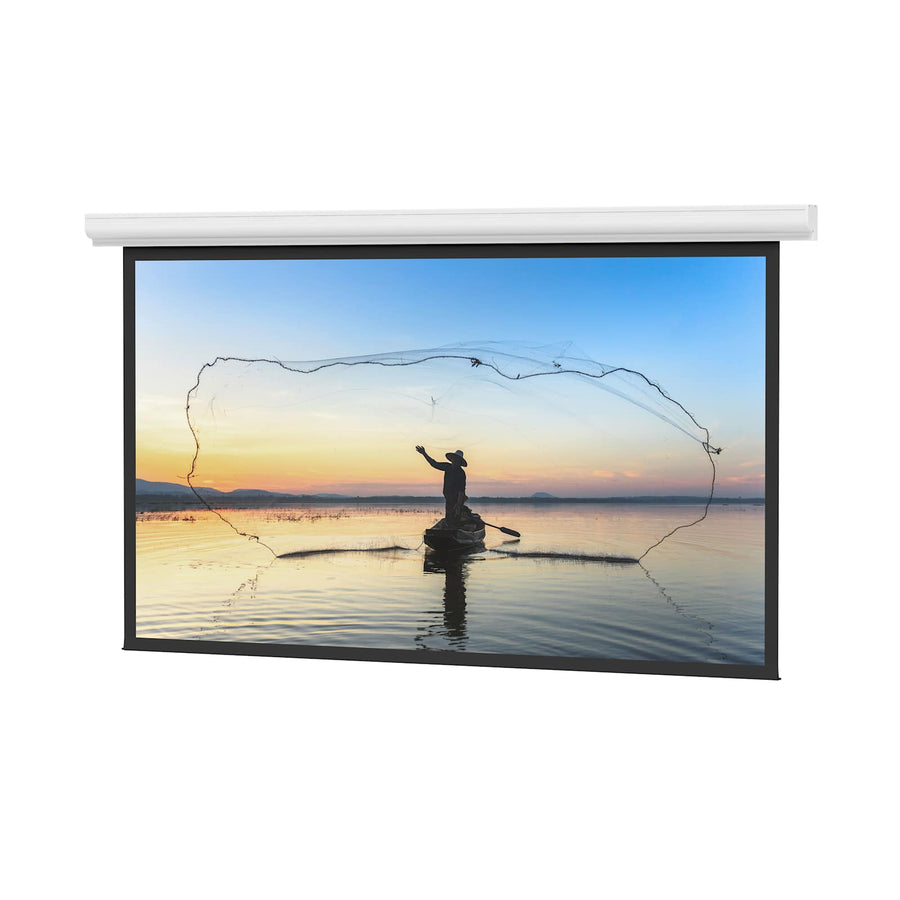

Da-Lite Designer Contour Electrol, 50" x 67" with High Contrast Matte White - 92666EL
Electric projection screen for ceiling or wall mounting, featuring a 50" x 67" High Contrast Matte White surface
The Da-Lite 92666EL is a Designer Contour Electrol electric screen designed for ceiling or wall-mounted applications. This 84 in (213.4 cm) diagonal screen features a 50 in (127 cm) height and is optimized for 4:3 video formats using front projection. It utilizes a High Contrast Matte White non-tensioned surface with standard black backing to retain projected brightness. This model is equipped with a 220V (50Hz) motor for export and includes built-in low voltage control. For installers, the compact housing measures 4 5/8" high by 4 3/32" deep. The series is TAA compliant and offers a white powder-coated aluminum finish. This unit is compatible with various Da-Lite accessories, including the 40975 Low Voltage Wall Switch and several remote control options.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 84 in (213.4 cm) |
| Screen Height | 50 in (127 cm) |
| Shipping Weight | 41 lbs (18.6 kg) |
| Size | 50" x 67" or 84" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
All other specifications 6
| Projection Type | Front Projection |
| Screen Format | Video (4:3) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Surface | High Contrast Matte White (non-tensioned) |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Low Voltage Wall Switch
40975$92.80
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
The 92666EL is specifically configured for 4:3 video formats using front projection on a 50" x 67" surface.
The 92666EL is specifically configured for 4:3 video formats using front projection on a 50" x 67" surface.
What electrical requirements are needed for the 92666EL?
This specific SKU features a 220V (50Hz) motor intended for export markets.
What accessories are needed to control this screen?
Control can be managed via a Decora-style wall switch using the Da-Lite 40975 Low Voltage Wall Switch or via remote options like the DL16522 RF (BLE) remote.
Can this screen be mounted on a ceiling?
Yes, the Designer Contour Electrol series is designed for both ceiling and wall applications.
What is the difference between the standard motor and the Agility option?
While this SKU includes a 220V motor, the Designer Contour series also offers an optional Agility Battery Motor for wireless, no-wiring installations.
