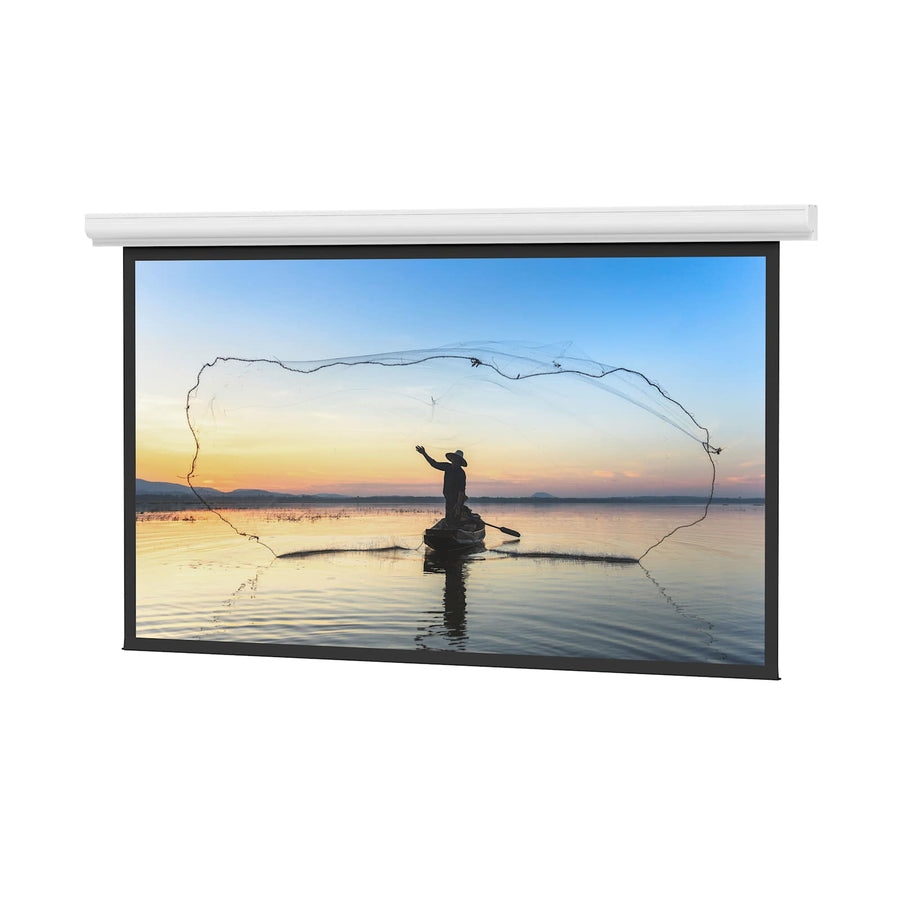

Da-Lite Designer Contour Electrol, 43" x 57" with Matte White - 89734EL
Electric projection screen with 72" diagonal 4:3 video format and Matte White non-tensioned surface
The Da-Lite 89734EL is a Designer Contour Electrol series electric projection screen designed for both ceiling and wall mounting applications. This 72 in (182.9 cm) diagonal screen features a 43 in (109.2 cm) height and a 43" x 57" size with a 4:3 video format. It utilizes a Matte White non-tensioned surface and includes a standard black backing to help retain projected brightness. This model is engineered with a compact housing, measuring 4 5/8” high and 4 3/32” deep, making it a low-profile solution for professional environments. The unit is TAA compliant and is built for front projection setups. While this model features a 220V (50Hz) motor for export, it is designed to integrate with various control options, including Decora-style three-position wall switches or optional low-voltage controls. This screen is a versatile choice for rooms requiring a professional, motorized display solution.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 72 in (182.9 cm) |
| Screen Height | 43 in (109.2 cm) |
| Shipping Weight | 37 lbs (16.8 kg) |
| Size | 43" x 57" or 72" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
All other specifications 6
| Projection Type | Front Projection |
| Screen Format | Video (4:3) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Surface | Matte White (non-tensioned) |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite Low Voltage Wall Switch
40975$92.80
Da-Lite Locking Switch Cover Plate
98837$102.40
Questions about this part
What is the size and aspect ratio of the 89734EL screen?
The 89734EL features a 43" x 57" area, providing a 72 in (182.9 cm) diagonal screen in a 4:3 video format.
What mounting options are available for this screen?
The Designer Contour Electrol can be installed in either ceiling or wall-mount applications using its compact housing.
Is the 89734EL compatible with remote or wall controls?
Yes, this model includes a Decora-style, three-position wall switch and supports optional low-voltage control systems.
What additional accessories can I buy for this screen?
You can add a Da-Lite Controller with Infrared Remote (DL16524) or a PoE Injector (DL16521) to expand control functionality.
Does this screen require a professional electrician for installation?
This specific SKU is equipped with a 220V (50Hz) motor for export, which requires proper electrical connection during installation.
