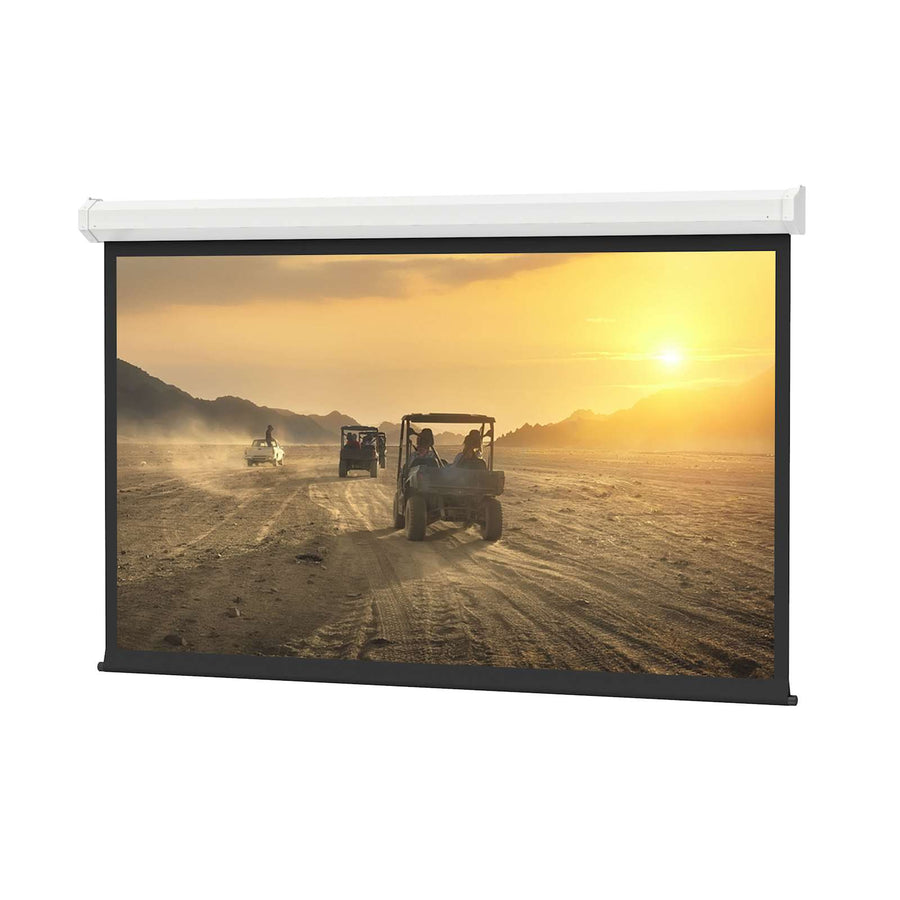

Da-Lite Cosmopolitan Series, 72.5" x 116" with High Contrast Matte White - 70223LS
Electric projection screen for ceiling or wall mounting, 72.5" x 116" size with High Contrast Matte White surface
The Da-Lite 70223LS is a Cosmopolitan Series electric projection screen designed for large venue applications. Measuring 72.5" x 116" (184.2 x 294.6 mm), this 137" diagonal screen provides a wide 16:10 aspect ratio ideal for professional front projection environments. The screen features a High Contrast Matte White non-tensioned surface, which includes a standard black backing to maximize brightness retention. This model is equipped with a silent 120V (60Hz) motor and features integrated low voltage control for simplified installation and improved user experience. The single-piece steel case includes integrated mounting holes in the end caps to facilitate ceiling or wall mounting. For TAA compliance, this unit is manufactured in the US. This electric screen is part of a series offering various control options, including Decora-style three-position wall switches.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 137 in (348 cm) |
| Screen Height | 72.5 in (184.2 cm) |
| Screen Width | 116 in (294.6 cm) |
| Shipping Dimensions | 139" x 8" x 6" (353.1 x 20.3 x 15.2 cm) |
| Shipping Weight | 74 lbs (33.6 kg) |
| Size | 72.5" x 116" or 137" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
All other specifications 11
| Federal Ops Country of Origin | US |
| Motor | Silent 120V (60Hz) |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | High Contrast Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 717068810266 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Floating Mounting Bracket White
77027$106.40
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Floating Mounting Bracket Black
77028$106.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite Ceiling Trim Kit - 96383
96383$308.00
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Locking Switch Cover Plate
98837$102.40
Questions about this part
Will the Da-Lite 70223LS fit my projection setup?
This 70223LS model is a front projection screen with a 16:10 wide format, measuring 72.5" x 116" with a 137" diagonal.
What control options are compatible with the 70223LS?
This unit features built-in low voltage control and a silent 120V (60Hz) motor. You can also add a Da-Lite Screen Controller with an Infrared Remote, such as part DL16524.
How is the 70223LS mounted in a ceiling or wall application?
The single-piece steel case includes integrated mounting holes in the end caps to assist with ceiling or wall installation.
Is the Da-Lite 70223LS TAA compliant for government projects?
Yes, this product is TAA Compliant and is manufactured in the US.
What accessories are needed for remote operation?
For remote control, you may need the Da-Lite Screen Controller with RF (BLE) Remote, part number DL16522, or a PoE injector compatible controller like DL16521.
