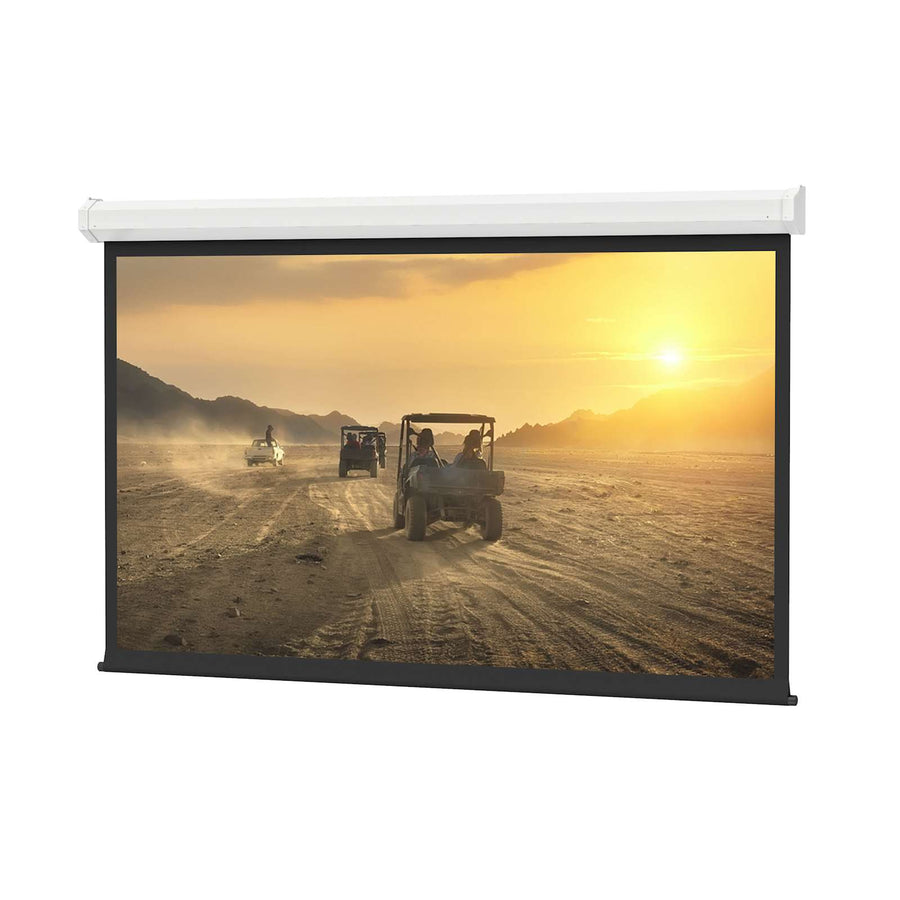

Da-Lite Cosmopolitan Series, 72.5" x 116" with High Contrast Matte White - 70223L
Electric Cosmopolitan Series projection screen, 72.5" x 116" with High Contrast Matte White surface and low voltage control
The Da-Lite 70223L is a Cosmopolitan Series electric projection screen measuring 72.5" x 116", providing a 137" diagonal view for large venue environments. This screen features a High Contrast Matte White non-tensioned surface, engineered for front projection applications. The housing is finished in a standard white powder coat, and the interior utilizes a standard black backing to help retain projected brightness on the front surface. This model is designed for ceiling or wall mounting and includes integrated low voltage control via a standard 120V (60Hz) motor. For installation, this unit features a single-piece steel case with integrated mounting holes in the end caps. This TAA compliant screen offers a seamless surface and is built for professional high-performance environments. The integrated electronics are enhanced to provide efficient, user-friendly control for the installer and end user alike.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 137 in (348 cm) |
| Screen Height | 72.5 in (184.2 cm) |
| Screen Width | 116 in (294.6 cm) |
| Shipping Dimensions | 139" x 8" x 6" (353.1 x 20.3 x 15.2 cm) |
| Shipping Weight | 74 lbs (33.6 kg) |
| Size | 72.5" x 116" or 137" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
All other specifications 11
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | High Contrast Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 717068810259 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Floating Mounting Bracket White
77027$106.40
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Floating Mounting Bracket Black
77028$106.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite Ceiling Trim Kit - 96383
96383$308.00
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Locking Switch Cover Plate
98837$102.40
Questions about this part
Will this Cosmopolitan screen fit my specific display setup?
The 70223L is a front projection screen with a 16:10 wide aspect ratio, optimized for large venue projection environments.
What control options are available for the 70223L?
This SKU features built-in low voltage control. You can add a Da-Lite Screen Controller with an Infrared Remote (DL16524) or a PoE Injector (DL16521) for advanced connectivity.
What is required for wall or ceiling mounting?
This screen is designed for ceiling or wall application. Depending on the specific installation, you may require accessories like the Da-Lite Floating Mounting Bracket (77027) in white.
Does this screen include a wall switch?
This model utilizes a Decora-style, three-position wall switch for standard operation. For specialized needs, a Smart Low Voltage Wall Switch (DL16622) is available as an accessory.
What documentation is available for submittals?
You can access the Cosmopolitan Series Specification Data, Instruction Manuals, and BIM models through the technical resource links provided on the product page.
