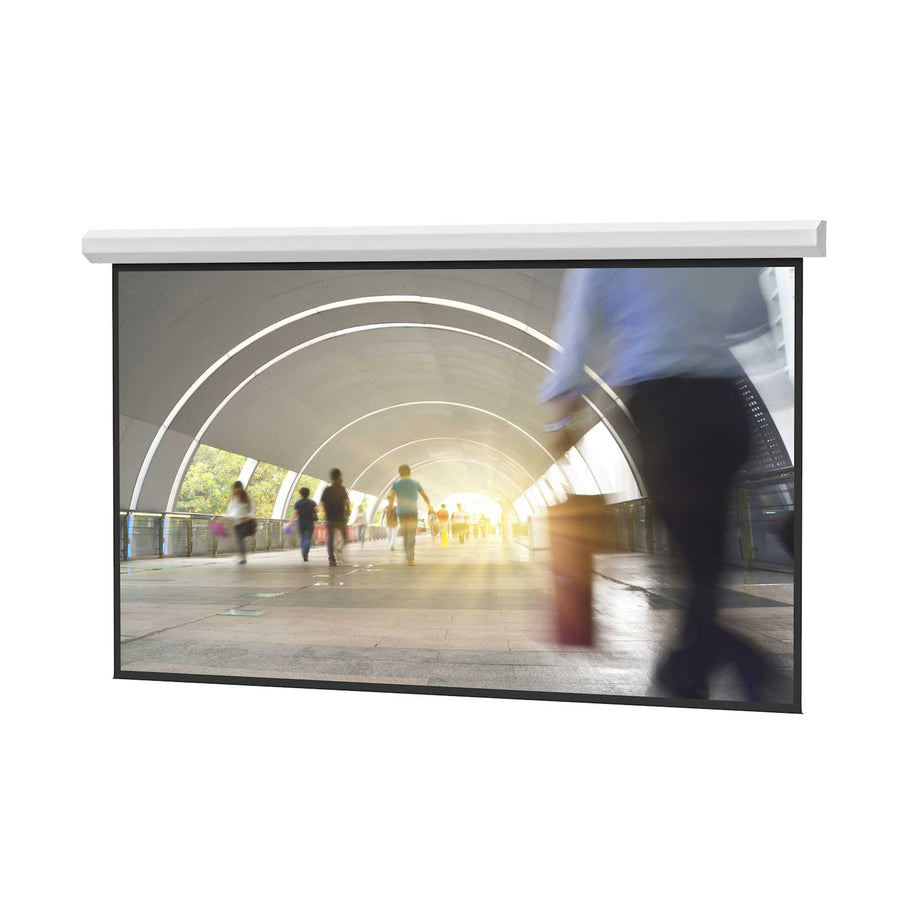

Da-Lite Cosmopolitan Series, 144" x 144" with Matte White - 40823EL
Square 144" x 144" electric projection screen with matte white surface and low voltage control for large venue front projection
The Da-Lite 40823EL is a large venue electric projection screen designed for high-impact front projection applications. This square 144" x 144" (365.8 x 365.8 mm) screen features a non-tensioned matte white surface that provides standard resolution clarity. As part of the Cosmopolitan Series, this unit is built with a two-piece aluminum case and mounting brackets, specifically engineered for wall or ceiling mount installation on screens with a 188" diagonal or larger. This specific SKU includes built-in low voltage control, allowing for simplified wiring and integration into automated systems. The housing is finished in a standard white powder coating, and the back features a standard black backing to help retain projected brightness on the front surface. For international projects, this unit is equipped with a 220V (50Hz) motor for export. This product is TAA compliant and is manufactured in the US.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Overall Dimensions | 163" x 14" x 20" (4140.2 x 355.6 x 508 mm) |
| Screen Diagonal | 204 in (518.2 cm) |
| Screen Height | 144 in (365.8 cm) |
| Screen Width | 144 in (365.8 cm) |
| Shipping Weight | 366 lbs (166 kg) |
| Size | 144" x 144" |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
All other specifications 9
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Projection Type | Front Projection |
| Screen Format | Square |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Ceiling Trim Kit - 96384
96384$332.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Locking Switch Cover Plate
98837$102.40
Questions about this part
Will this screen fit my installation requirements?
This 144" x 144" square screen is designed for large venue front projection and can be mounted on either a ceiling or a wall.
What electrical requirements are needed for the motor?
This specific model, 40823EL, is equipped with a 220V (50Hz) motor intended for export and includes built-in low voltage control.
What accessories are needed to complete the installation?
To manage the screen via remote or specialized controllers, you may need a Da-Lite Screen Controller such as the DL15316 or the DL16522 which includes an RF (BLE) Remote.
How is the screen surface finished?
The screen features a non-tensioned matte white surface with a standard black backing to help retain projected brightness during front projection.
What is the mounting requirement for this screen size?
Because this is a 204 in (518.2 cm) diagonal screen, it utilizes a two-piece aluminum case with mounting brackets for wall or ceiling installation.
