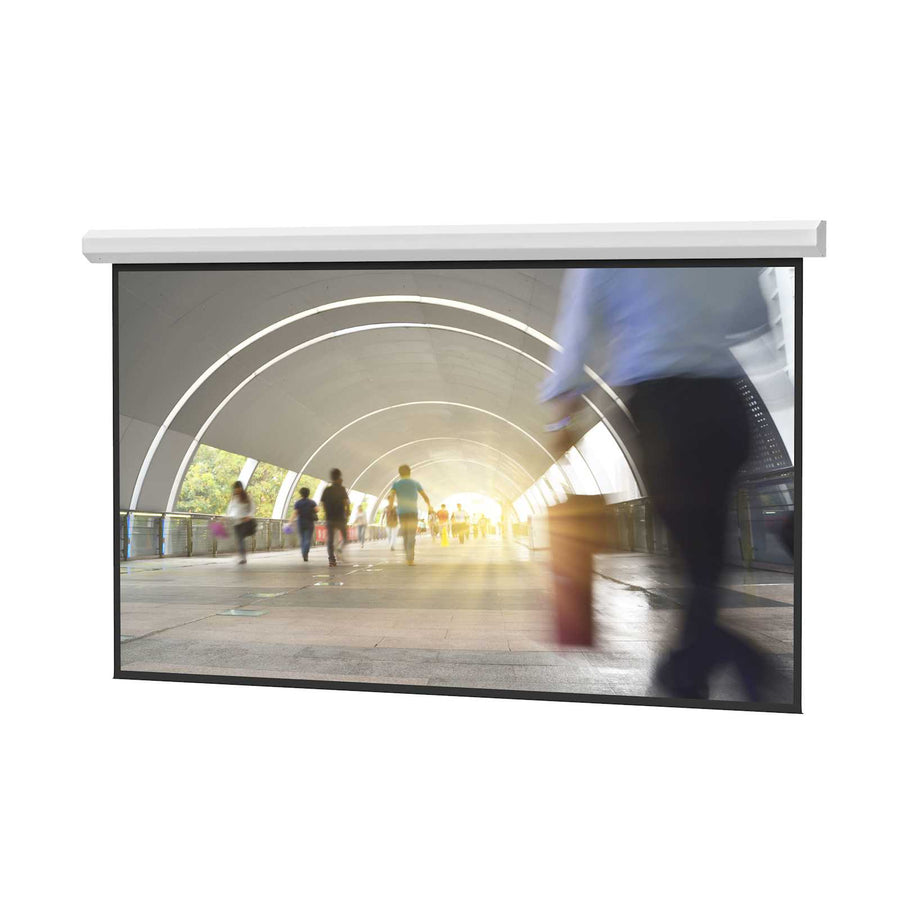

Da-Lite Cosmopolitan Series, 120" x 160" with Matte White - 83238L
Large venue electric projection screen, 120" x 160" (200" diagonal), featuring a matte white non-tensioned surface for front projection
The Da-Lite 83238L is a Cosmopolitan Series electric projection screen designed for large venue environments. This 200 in (508 cm) diagonal screen features a 120 in (304.8 cm) height and 160 in (406.4 cm) width, providing a 4:3 video format surface. The matte white non-tensioned surface is optimized for front projection and features standard resolution capabilities. This TAA compliant unit is built with a two-piece aluminum case for installation on 188" diagonal and larger screens, utilizing mounting brackets for both ceiling and wall applications. It includes a standard 120V (60Hz) motor with built-in low voltage control. The housing features a standard white powder-coated finish and includes black backing to help retain projected brightness on the front surface. This model is part of the Cosmopolitan Series, which is scheduled for discontinuation on 10/30/26; installers may consider the Myriad Reveal series as a modern alternative.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 200 in (508 cm) |
| Screen Height | 120 in (304.8 cm) |
| Screen Width | 160 in (406.4 cm) |
| Shipping Dimensions | 182" x 13" x 20" (462.3 x 33 x 50.8 cm) |
| Shipping Weight | 392 lbs (177.8 kg) |
| Size | 120" x 160" or 200" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
All other specifications 11
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Projection Type | Front Projection |
| Screen Format | Video (4:3) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 717068053564 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller - DL15316
DL15316$504.00
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Locking Switch Cover Plate
98837$102.40
Questions about this part
Will this screen fit my 4:3 video projection setup?
Yes, the 83238L is specifically configured with a 4:3 video format surface measuring 120 in (304.8 cm) in height and 160 in (406.4 cm) in width.
What mounting options are available for the Cosmopolitan 83238L?
This large venue screen can be installed in either ceiling or wall applications using the included aluminum case and mounting brackets.
What additional control accessories can I use with this screen?
You can expand control options using the Da-Lite Screen Controller with PoE Injector (DL16521) or the Smart Low Voltage Wall Switch (DL16622).
Does this screen support low voltage control?
Yes, the 83238L features a standard 120V (60Hz) motor with integrated low voltage control for simplified electrical integration.
Is there a replacement series for the Cosmopolitan Series?
The Cosmopolitan Series is scheduled for discontinuation on 10/30/26; Da-Lite suggests the Myriad Reveal series as the current alternative.
