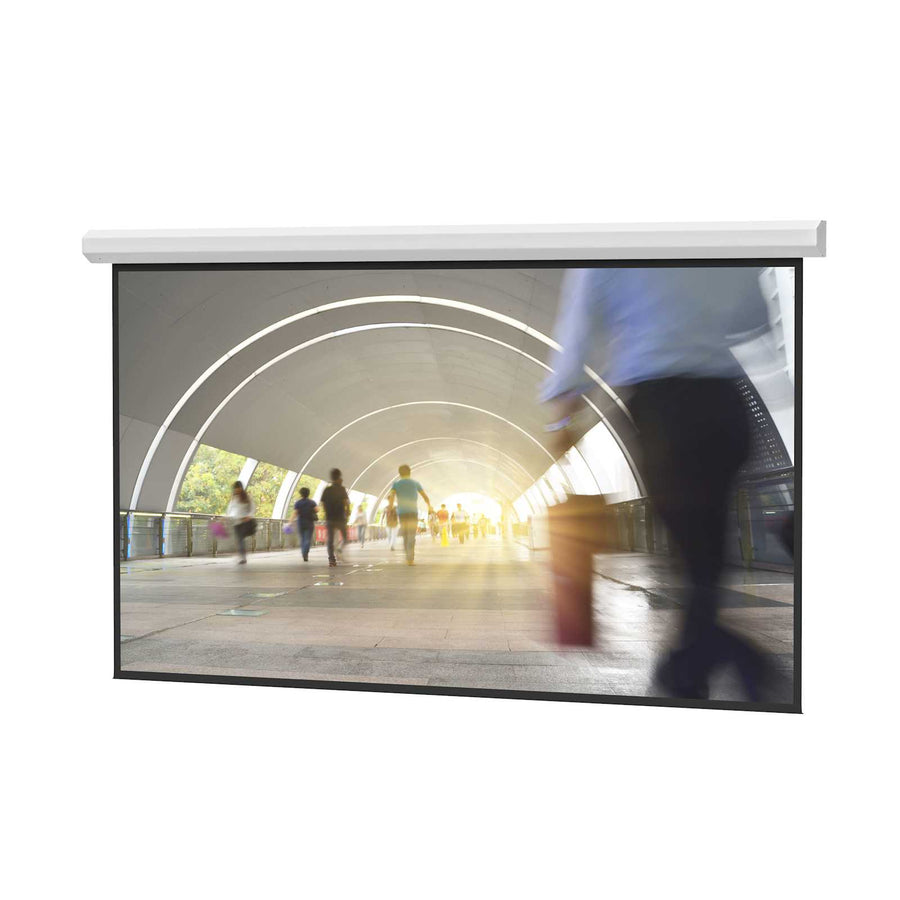

Da-Lite Cosmopolitan Series, 117.5" x 188" with Matte White - 70283L
Large venue electric screen with 117.5" x 188" Matte White surface, 222" diagonal, for ceiling or wall mounting
The Da-Lite 70283L is a large venue electric projection screen measuring 117.5" x 188" with a 222" diagonal. Designed for professional environments, this Cosmopolitan Series screen features a non-tensioned Matte White surface optimized for front projection. This specific SKU is a wide 16:10 format model, making it suitable for high-resolution video and presentation environments. It is TAA compliant and manufactured in the US. The unit includes built-in low voltage control and a standard 120V (60Hz) motor. For installation in large venues, this model utilizes a two-piece aluminum case with mounting brackets for either wall or ceiling mounting. The housing features a standard white powder-coated finish, while the standard black backing is engineered to help retain projected brightness on the front surface. Note that this product is scheduled for discontinuation on 10/30/26, with direct replacement options being the DL100209L or DL100202L.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 222 in (563.9 cm) |
| Screen Height | 117.5 in (298.5 cm) |
| Screen Width | 188 in (477.5 cm) |
| Shipping Dimensions | 210" x 13" x 20" (533.4 x 33 x 50.8 cm) |
| Shipping Weight | 461 lbs (209.1 kg) |
| Size | 117.5" x 188" or 222" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
All other specifications 11
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 717068815162 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller - DL15316
DL15316$504.00
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Locking Switch Cover Plate
98837$102.40
Questions about this part
Will this Da-Lite 70283L screen fit my projection setup?
This is a front projection screen with a 16:10 wide format. It features a Matte White non-tensioned surface specifically designed for large venue applications.
How is the 70283L mounted in a professional installation?
Because this model is 188" wide, it utilizes a two-piece aluminum case equipped with mounting brackets for both ceiling and wall mounting applications.
What control options are available for the Cosmopolitan 70283L?
This model includes built-in low voltage control. You can further customize operation with accessories like the DL16622 Smart Low Voltage Wall Switch or the DL16522 RF (BLE) Remote Controller.
What is the difference between this and the Myriad Reveal series?
While the Cosmopolitan Series is a proven choice, the Myriad Reveal offers a modern aesthetic and upgrades such as SightLine Cable Drop for improved installation and viewing experiences.
Which replacement part should I use if this model is discontinued?
This product is scheduled to be discontinued on 10/30/26. The manufacturer specifies DL100209L or DL100202L as the direct replacement options.
