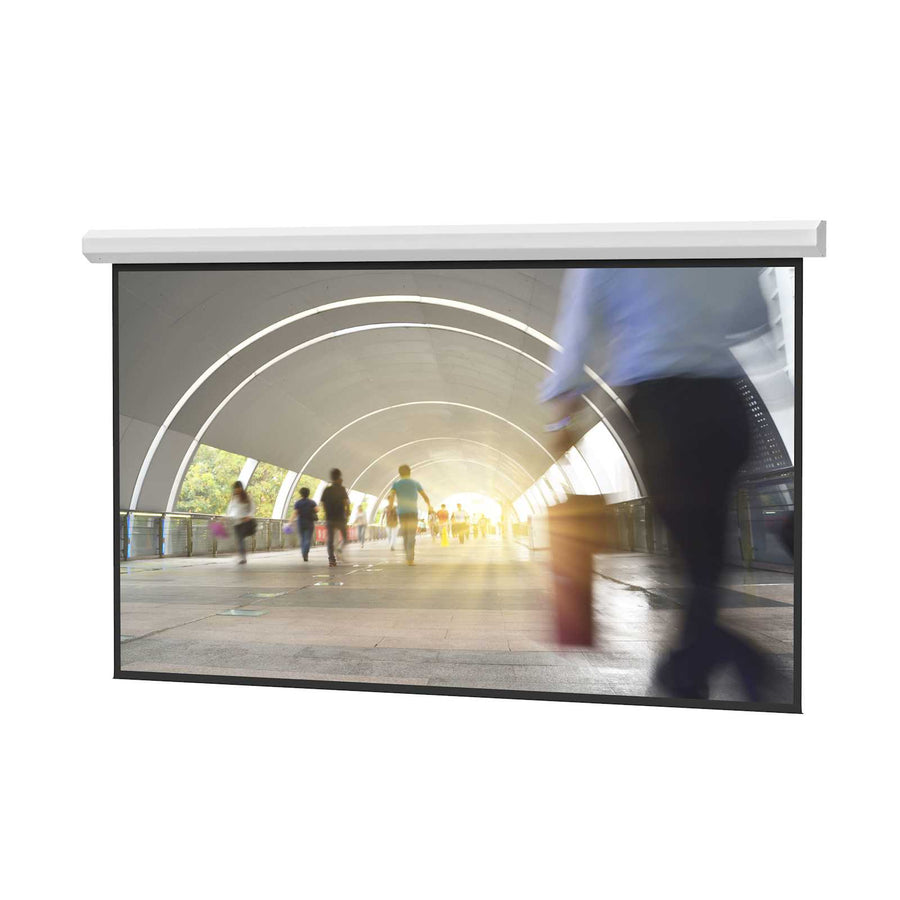

Da-Lite Cosmopolitan Series, 100" x 160" with Matte White - 70279L
Electric wide 16:10 projection screen with 100" x 160" matte white surface and built-in low voltage control
The Da-Lite 70279L is a large venue electric projection screen part of the Cosmopolitan Series, measuring 100" x 160" with a 189" diagonal. This wide 16:10 format screen is designed for front projection applications and features a non-tensioned matte white surface. It is engineered for both ceiling and wall mounting. Because of its size (over 188" diagonal), this unit utilizes a two-piece aluminum case equipped with mounting brackets to facilitate installation. The screen includes built-in low voltage control and operates on a standard 120V (60Hz) motor. A standard black backing is included to help retain projected brightness on the front projection surface. This model is TAA compliant and has a white powder-coated housing finish. Note that this specific SKU is scheduled to be discontinued on 10/30/26; for direct replacement options, see the DL100207L or DL100200L.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 189 in (480.1 cm) |
| Screen Height | 100 in (254 cm) |
| Screen Width | 160 in (406.4 cm) |
| Shipping Dimensions | 182" x 13" x 20" (462.3 x 33 x 50.8 cm) |
| Shipping Weight | 387 lbs (175.5 kg) |
| Size | 100" x 160" or 189" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
All other specifications 11
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 717068814844 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller - DL15316
DL15316$504.00
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Locking Switch Cover Plate
98837$102.40
Questions about this part
What is the compatible screen format for the 70279L?
The 70279L is a wide 16:10 format screen, making it suitable for modern widescreen presentations and large venue projections.
How is this screen mounted on a wall or ceiling?
Since this model has a diagonal measurement of 189", it uses a two-piece aluminum case with dedicated mounting brackets for wall or ceiling installation.
What additional controls can I add to this screen?
You can integrate various accessories such as the Da-Lite Screen Controller with Infrared Remote (DL16524), a PoE Injector model (DL16521), or a Smart Low Voltage Wall Switch (DL16622).
Is this projection screen TAA compliant?
Yes, the 70279L is TAA compliant and is manufactured in the US.
What is the replacement for this model after its discontinuation?
When this SKU is discontinued on 10/30/26, the direct replacement options are the Da-Lite DL100207L or DL100200L.
