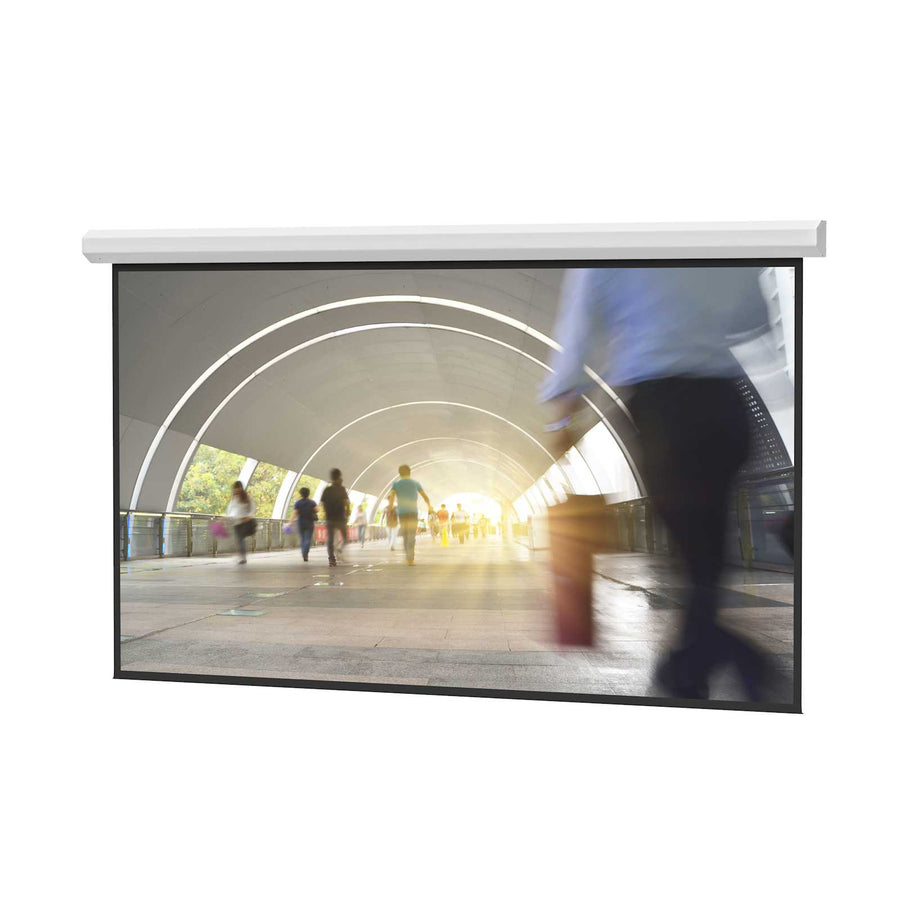

Da-Lite Cosmopolitan Series, 100" x 160" with Matte White - 70279EL
Electric 100" x 160" projection screen with Matte White non-tensioned surface and 220V motor for large venue applications
The Da-Lite Cosmopolitan 70279EL is a large venue electric projection screen designed for professional ceiling or wall mounting. This 100" x 160" screen features a 189" diagonal dimension and is configured with a Wide (16:10) screen format. The non-tensioned Matte White surface provides a standard resolution projection area, while the black backing is engineered to retain projected brightness for front projection applications. This specific model is designed for international export, featuring a 220V (50Hz) motor with built-in low voltage control. As this product is part of the Cosmopolitan Series, it utilizes a two-piece aluminum case with mounting brackets to facilitate installation on large formats of this size. This TAA compliant unit is an active product, though the manufacturer notes it will be discontinued on 10/30/26, with direct replacement options being the DL100207EL or DL100200EL.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 189 in (480.1 cm) |
| Screen Height | 100 in (254 cm) |
| Screen Width | 160 in (406.4 cm) |
| Shipping Dimensions | 182" x 13" x 20" (462.3 x 33 x 50.8 cm) |
| Shipping Weight | 387 lbs (175.5 kg) |
| Size | 100" x 160" or 189" diagonal |
| Application | CeilingWall |
| Built-In Control | Low Voltage Control |
All other specifications 11
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 717068814820 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller - DL15316
DL15316$504.00
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Locking Switch Cover Plate
98837$102.40
Questions about this part
What are the dimensions of the 70279EL screen?
The projection surface measures 160" wide by 100" high, resulting in a 189" diagonal measurement.
What voltage motor is required for the 70279EL?
This model is configured for export with a 220V (50Hz) motor that includes built-in low voltage control.
Is this screen TAA compliant for government contracts?
Yes, the 70279EL is TAA compliant and is manufactured in the US.
What accessories can be used to control the screen?
Compatible control options include the DL16524 infrared remote, the DL16523 RF (BLE) remote with PoE injector, or the DL16622 Smart Low Voltage Wall Switch.
What is the replacement for this model if it is discontinued?
The manufacturer identifies the DL100207EL and the DL100200EL as the direct replacement options for this Cosmopolitan Series screen.
