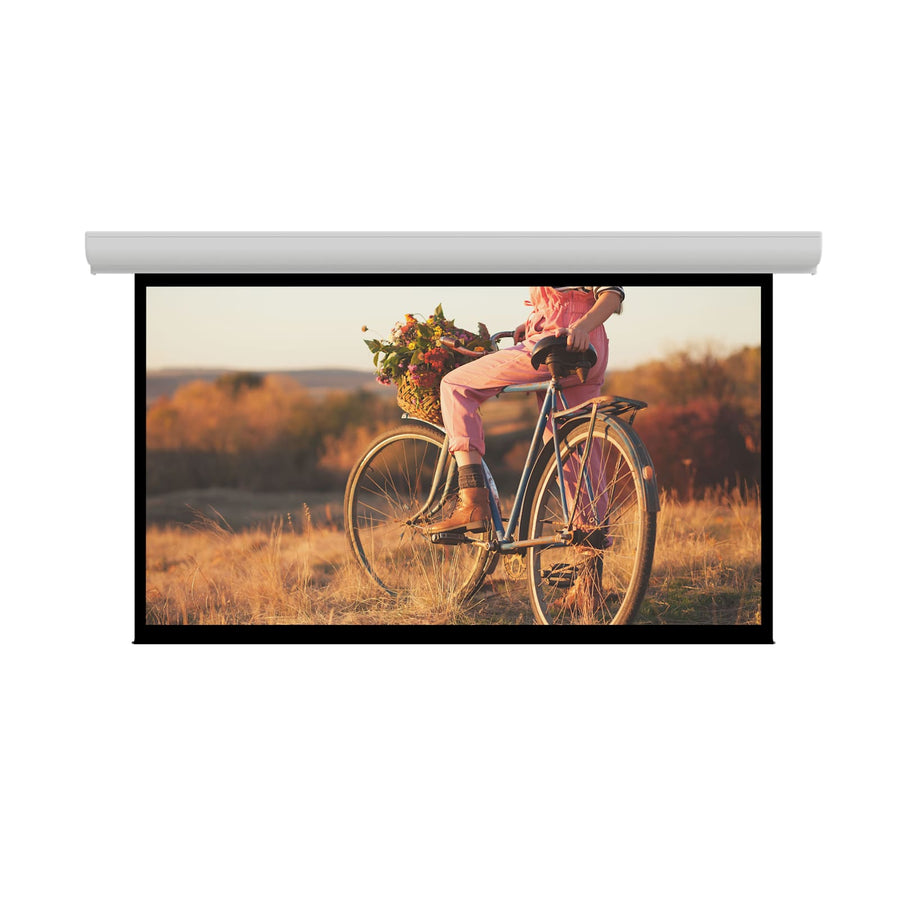

Da-Lite Contour Electrol, 90" x 160" with Matte White - 35168EL
90" x 160" electric projection screen with matte white surface, 184" diagonal, and TAA compliance for ceiling or wall installation
The Da-Lite 35168EL is a 90" x 160" (184" diagonal) electric projection screen designed for versatile ceiling or wall mounting. This Contour Electrol series model features a non-tensioned matte white surface and is optimized for front projection in a 16:9 HDTV format. It is equipped with a standard silent drive system, ensuring quiet operation during screen deployment. For control flexibility, this unit includes standard low voltage control (LVC) with a dry contact interface and a 5-12V projector trigger. The screen features a standard white powder-coated aluminum finish and includes a black backing to maintain projected brightness. Note that this model is a non-tensioned screen; installers requiring a Tensioned Contour Electrol system should select a different SKU. This TAA compliant product is manufactured in the US and is suitable for professional environments requiring reliable electric operation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 184 in (467.4 cm) |
| Screen Height | 90 in (228.6 cm) |
| Shipping Dimensions | 182" x 13" x 10" (462.3 x 33 x 25.4 cm) |
| Shipping Weight | 125 lbs (56.7 kg) |
| Size | 90" x 160" or 184" diagonal |
| Application | CeilingWall |
| Built-In Control | Standard Low Voltage Control |
| Federal Ops Country of Origin | US |
All other specifications 9
| Motor | 220V (50Hz) for Export |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 717068015821 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Locking Switch Cover Plate
98837$102.40
Questions about this part
Will the 35168EL fit my projector setup?
Yes, this is a front projection screen with a 16:9 HDTV format and includes a 5-12V projector trigger for automated operation.
What is required to control the 35168EL screen?
The screen features standard low voltage control (LVC) and a dry contact interface. You can use a Da-Lite Screen Controller like the DL15316 or DL16524 to manage operation.
Does this screen include a tensioning system?
No, the 35168EL is a non-tensioned screen. For models with a Tensioning Cable System, look for the Tensioned Contour Electrol series.
Can I mount this screen on a wall?
Yes, this unit is designed for both ceiling and wall applications.
What documents are available for submittals?
You can access the Contour Electrol Instructions, Product Information Sheet, and Specification Sheet via the Resources tab for technical submittals.
