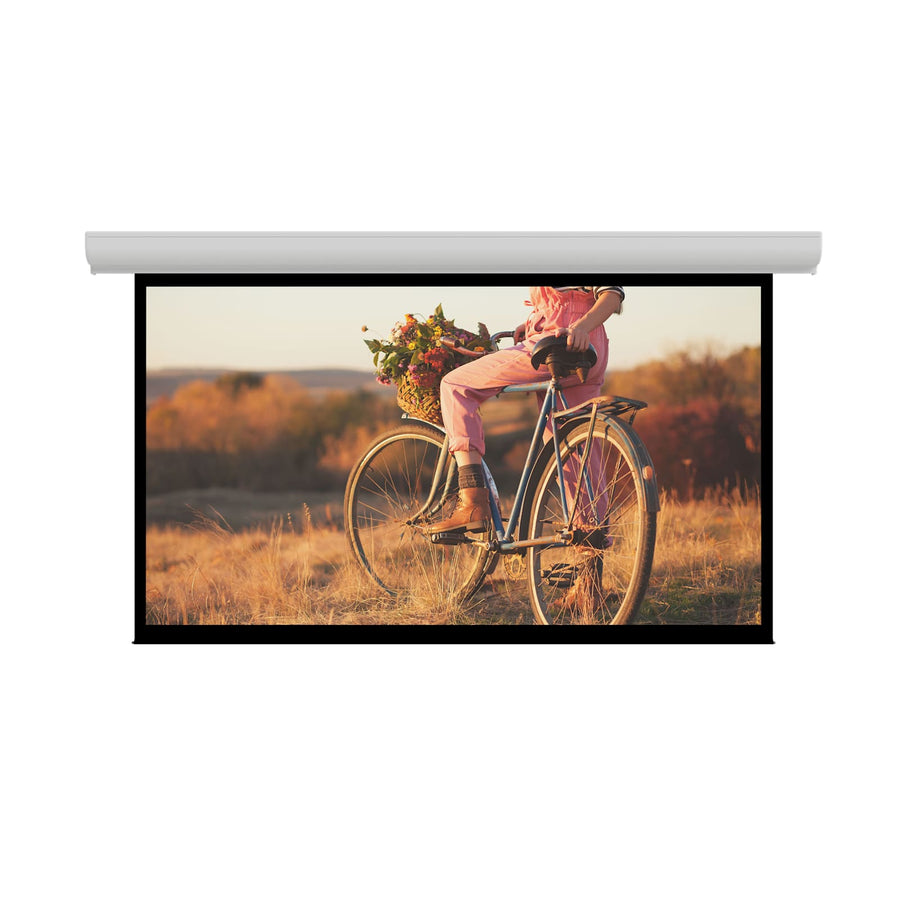

Da-Lite Contour Electrol, 87" x 139" with High Contrast Matte White - 37579L
Electric ceiling or wall-mounted screen with High Contrast Matte White surface and 164" diagonal for front projection
The Da-Lite 37579L is an electric projection screen designed for both ceiling and wall mounting. This 87" x 139" unit features a 16:10 Wide screen format and a non-tensioned High Contrast Matte White surface, specifically engineered for front projection. The screen utilizes a standard black backing to help retain projected brightness and features a standard silent drive system to ensure whisper-quiet operation. For flexible control, this model includes standard low voltage control with a dry contact interface and a 5-12V projector trigger. The assembly features a standard white powder-coated aluminum finish. This specific SKU is a non-tensioned model; installers requiring a Tensioned Contour Electrol should look for that specific series instead. This TAA compliant product is manufactured in the US and is suitable for professional AV installations requiring reliable, motorized screen movement.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 164 in (416.6 cm) |
| Screen Height | 87 in (221 cm) |
| Shipping Dimensions | 161.25" x 13" x 10" (409.6 x 33 x 25.4 cm) |
| Shipping Weight | 96 lbs (43.5 kg) |
| Size | 87" x 139" or 164" diagonal |
| Application | CeilingWall |
| Built-In Control | Standard Low Voltage Control |
| Federal Ops Country of Origin | US |
All other specifications 9
| Motor | Standard 120V (60Hz) |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Surface | High Contrast Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 717068583207 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Locking Switch Cover Plate
98837$102.40
Questions about this part
Will this screen fit my projection setup?
The 37579L is a front projection screen with a 16:10 Wide format, featuring a screen height of 87 in (221 cm) and a width of 139 in (353 cm).
Does this screen include a tensioning system?
No, this is a non-tensioned model. If your application requires the Tensioned Contour Electrol feature, please select that specific version instead.
What type of control connections are used for this screen?
This model uses standard low voltage control with a dry contact interface and includes a 5-12V projector trigger for automated operation.
What mounting options are available for the 37579L?
This electric screen is designed for both ceiling and wall mounting applications.
What additional controllers are compatible with this screen?
You can enhance control using the Da-Lite Screen Controller (DL15316) or the Da-Lite Screen Controller with PoE Injector (DL16521).
