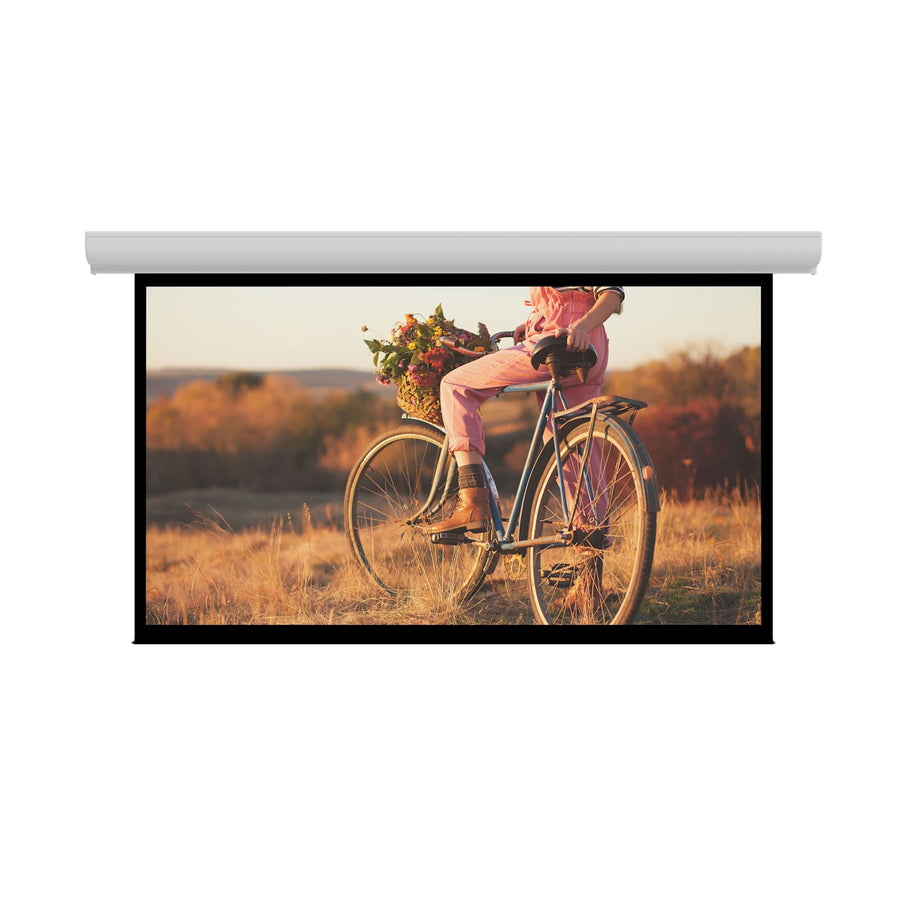

Da-Lite Contour Electrol, 84" x 84" with High Contrast Matte White - 92624ELS
84" x 84" square electric projection screen with High Contrast Matte White surface and TAA compliance
The Da-Lite 92624ELS Contour Electrol is an electric projection screen designed for both ceiling and wall-mounted applications. This square format screen measures 84" x 84" (213.4 cm x 213.4 cm) with a screen diagonal of 119 in (302.3 cm). It features a High Contrast Matte White non-tensioned surface and utilizes a standard black backing to retain projected brightness during front projection. This specific model, 92624ELS, is equipped with a 220V (50Hz) motor for export and includes standard low voltage control (LVC) for flexible operation. The system incorporates a standard silent drive system and a projector trigger (5-12V) to automate screen movement. For installers requiring specific submittals, the Contour Electrol Instructions (PDF) provide detailed guidance on setup and connections. Please note that this is a non-tensioned model; users requiring a tensioned system should look for the Tensioned Contour Electrol series.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 119 in (302.3 cm) |
| Screen Height | 84 in (213.4 cm) |
| Shipping Weight | 62 lbs (28.1 kg) |
| Size | 84" x 84" |
| Application | CeilingWall |
| Built-In Control | Standard Low Voltage Control |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
All other specifications 6
| Projection Type | Front Projection |
| Screen Format | Square |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Surface | High Contrast Matte White (non-tensioned) |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Will this screen work with my projector?
This screen is designed for front projection and includes a 5-12V projector trigger to allow the screen to deploy automatically when the projector is turned on.
What is the difference between this and a tensioned screen?
The 92624ELS is a non-tensioned model. If your application requires a Tensioned Contour Electrol screen, you will need to select a different SKU from that specific series.
Does this screen support remote control operation?
While it comes with standard low voltage control, you can add compatible accessories like the Da-Lite Screen Controller with RF (BLE) Remote (SKU: DL16522) or an Infrared Remote (SKU: DL16524).
Can this screen be installed on the ceiling?
Yes, the Contour Electrol series is designed for both ceiling and wall-mounted applications.
What is required for submittals and installation?
Installers can refer to the Contour Electrol Instructions (PDF) for wiring details or use the Contour Electrol CAD Files (zip) for architectural integration.
