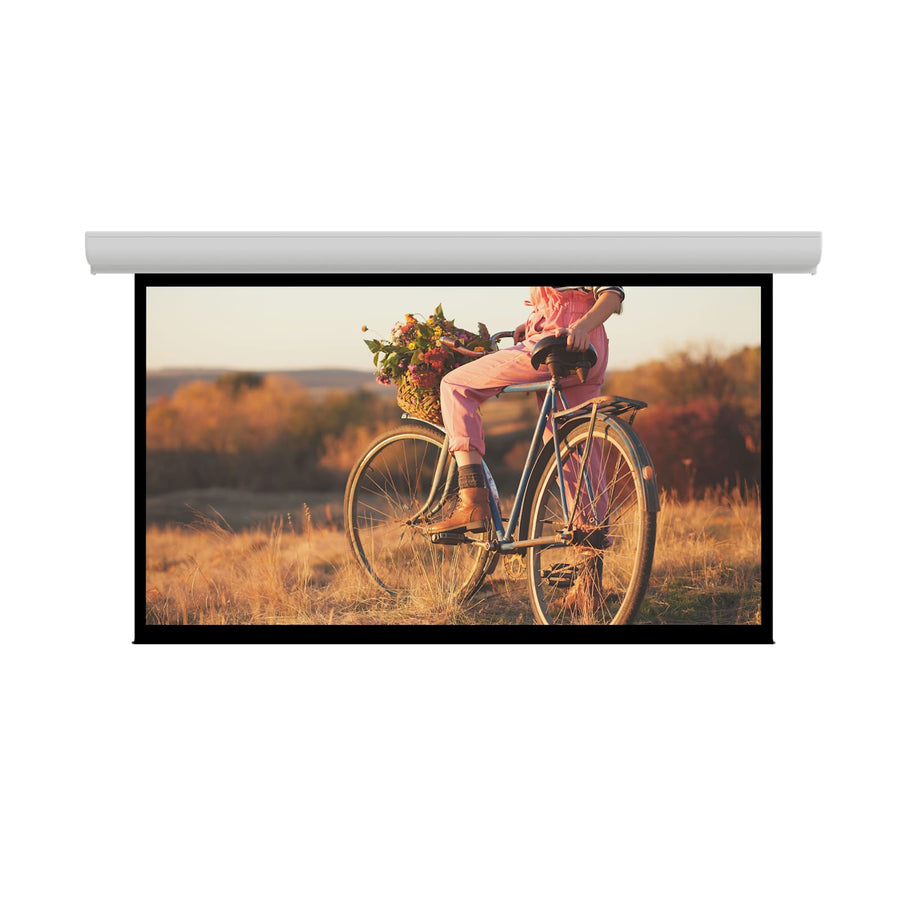

Da-Lite Contour Electrol, 60" x 96" with High Contrast Matte White - 37571LS
Electric ceiling or wall-mounted screen, 60" x 96" dimensions, featuring High Contrast Matte White surface and TAA compliance
The Da-Lite 37571LS is an electric Contour Electrol series screen designed for ceiling or wall mounting. This 60" x 96" (113" diagonal) model features a Wide 16:10 screen format, making it suitable for various front projection applications. The screen utilizes a High Contrast Matte White non-tensioned surface to provide a standard resolution viewing area, supported by a standard black backing that helps retain projected brightness. This model is TAA compliant and features a standard 120V (60Hz) motor driven by a standard silent drive system for quiet operation. Control is managed via a standard low voltage control (LVC) system using a dry contact interface and includes a projector trigger (5-12V). This specific SKU is a non-tensioned model; if your application requires a Tensioned Contour Electrol system, please refer to that specific series. The housing features a standard white powder-coated aluminum finish.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 113 in (287 cm) |
| Screen Height | 60 in (152.4 cm) |
| Shipping Dimensions | 117" x 13" x 10" (297.2 x 33 x 25.4 cm) |
| Shipping Weight | 74 lbs (33.6 kg) |
| Size | 60" x 96" or 113" diagonal |
| Application | CeilingWall |
| Built-In Control | Standard Low Voltage Control |
| Federal Ops Country of Origin | US |
All other specifications 9
| Motor | Standard 120V (60Hz) |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Surface | High Contrast Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 717068578432 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Locking Switch Cover Plate
98837$102.40
Questions about this part
Will this screen fit a 16:10 aspect ratio display?
Yes, the 37571LS is configured with a Wide 16:10 screen format and a 60" x 96" dimension.
Does this screen include a tensioning system?
No, this is a non-tensioned screen. For a version with the Tensioning Cable System, you must select the Tensioned Contour Electrol series.
What type of control interface is used for this motor?
This model features a standard 120V (60Hz) motor with a standard Low Voltage Control (LVC) using a dry contact interface and a 5-12V projector trigger.
Is this product TAA compliant?
Yes, the 37571LS is TAA compliant and is manufactured in the US.
Can I add remote or smart controls to this screen?
Yes, compatible accessories include the DL16522 RF (BLE) Remote Controller and the DL16622 Smart Low Voltage Wall Switch.
