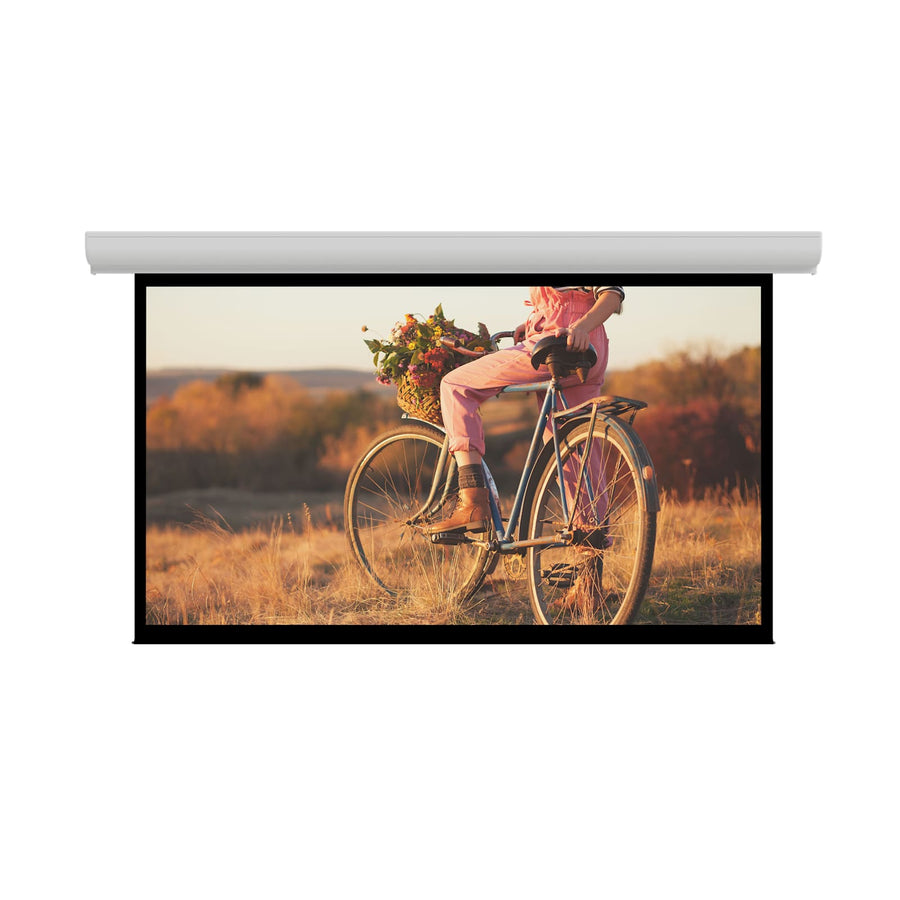

Da-Lite Contour Electrol, 57.5" x 92" with High Contrast Matte White - 70189ELS
Electric ceiling or wall-mounted screen, 57.5" x 92" wide format, featuring a High Contrast Matte White surface
The Da-Lite 70189ELS is a 57.5" x 92" (109" diagonal) electric projection screen from the Contour Electrol series, designed for versatile ceiling or wall installation. This wide format (16:10) screen features a High Contrast Matte White non-tensioned surface, paired with a standard black backing to help retain projected brightness. It is powered by a 220V (50Hz) motor specifically for export markets. The screen utilizes a standard silent drive system to ensure whisper-quiet operation for sizes up to 10’x10’. Control flexibility is provided by standard low voltage control (LVC) featuring a dry contact interface and a 5-12V projector trigger. This TAA compliant model is finished in a standard white powder-coated aluminum. Note that this specific model does not include the Tensioning Cable System; for that feature, installers should look to the Tensioned Contour Electrol series.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 109 in (276.9 cm) |
| Screen Height | 57.5 in (146.1 cm) |
| Shipping Dimensions | 113" x 13" x 10" (287 x 33 x 25.4 cm) |
| Shipping Weight | 76 lbs (34.5 kg) |
| Size | 57.5" x 92" or 109" diagonal |
| Application | CeilingWall |
| Built-In Control | Standard Low Voltage Control |
| Federal Ops Country of Origin | US |
All other specifications 9
| Motor | 220V (50Hz) for Export |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Surface | High Contrast Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 717068804418 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller - DL15316
DL15316$504.00
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Locking Switch Cover Plate
98837$102.40
Questions about this part
Is the Da-Lite 70189ELS TAA compliant?
Yes, this screen is TAA compliant and features a 220V (50Hz) motor for export use.
What control options are available for the 70189ELS?
The screen includes standard low voltage control (LVC) with a dry contact interface, a projector trigger (5-12V), and supports the Da-Lite DL15316 Screen Controller.
Can I add a remote control to this screen?
Yes, you can integrate various controllers such as the DL16524 Infrared Remote or the DL16522 RF (BLE) Remote.
How does this screen differ from the Tensioned Contour Electrol?
This SKU (70189ELS) is a non-tensioned screen; if your application requires a Tensioning Cable System, you must select the Tensioned Contour Electrol version.
Which documents are available for installation and submittals?
You can access the Contour Electrol Instructions (PDF), the Contour Specification Sheet (PDF), and Contour Electrol CAD Files (zip) for your project submittals.
