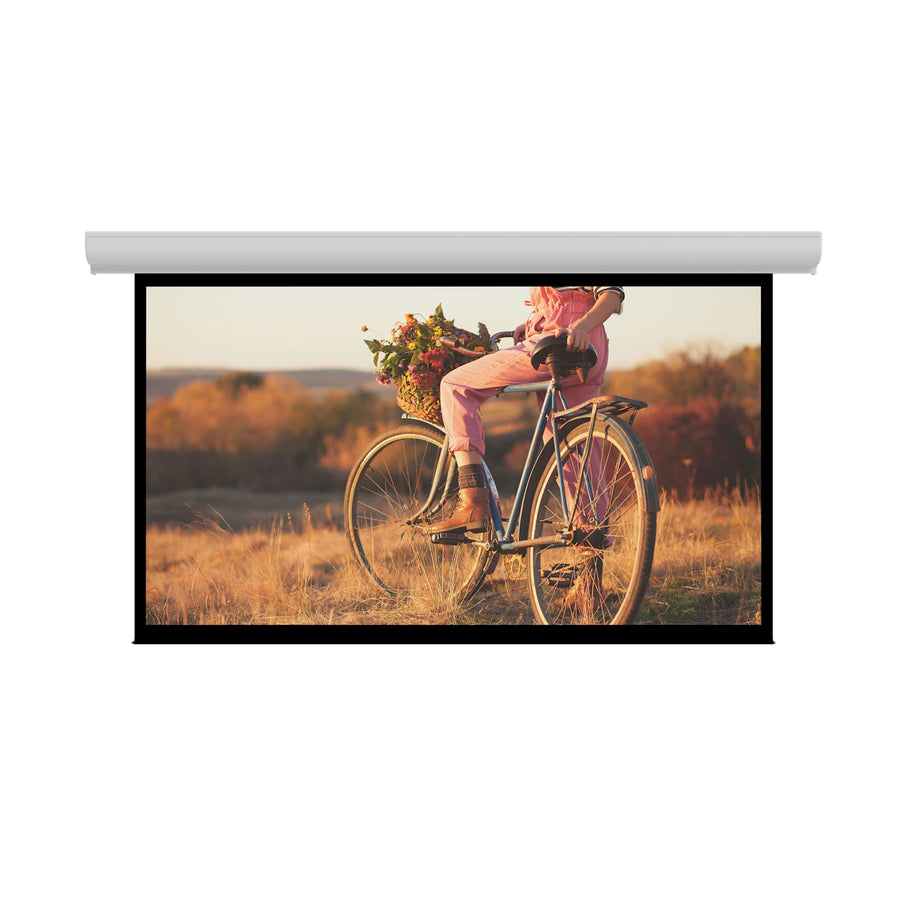

Da-Lite Contour Electrol, 54" x 96" with High Contrast Matte White - 94276LS
Electric ceiling or wall-mounted projection screen, 54" x 96" with High Contrast Matte White surface
The Da-Lite 94276LS Contour Electrol is an electric projection screen designed for ceiling or wall mounting. This 54" x 96" (110" diagonal) model features a High Contrast Matte White non-tensioned surface, specifically optimized for front projection applications. The screen uses a standard 120V (60Hz) motor driven by a silent drive system to ensure quiet operation during deployment. It is built with a standard black backing to help retain projected brightness and maintain high-quality image standards. This unit is TAA compliant and manufactured in the US. For control, it includes a standard low voltage control (LVC) interface featuring a dry contact interface and a projector trigger (5-12V) for automated synchronization. The white powder-coated aluminum finish provides a clean aesthetic for any professional room. Note that this specific model does not include the Tensioning Cable System; for tensioned requirements, refer to the Tensioned Contour Electrol series. It is available in a 16:9 HDTV format to suit modern presentation needs.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 110 in (279.4 cm) |
| Screen Height | 54 in (137.2 cm) |
| Shipping Dimensions | 119" x 13" x 10" (302.3 x 33 x 25.4 cm) |
| Shipping Weight | 77 lbs (34.9 kg) |
| Size | 54" x 96" or 110" diagonal |
| Application | CeilingWall |
| Built-In Control | Standard Low Voltage Control |
| Federal Ops Country of Origin | US |
All other specifications 9
| Motor | Standard 120V (60Hz) |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Surface | High Contrast Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 717068338630 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Does the 94276LS include a tensioning system?
No, this model is a non-tensioned screen. For applications requiring a Tensioning Cable System, you must select a model from the Tensioned Contour Electrol series.
What type of control interface is used with the 94276LS?
The 94276LS features standard Low Voltage Control (LVC) with a dry contact interface and includes a 5-12V projector trigger for automated operation.
Can I add wireless control to this Da-Lite screen?
Yes, the 94276LS is compatible with several Da-Lite controllers, such as the DL16524 with infrared remote or the DL16522 which utilizes RF (BLE) technology.
Is the 94276LS suitable for government contracts?
Yes, the 94276LS is TAA compliant and is produced in the US.
What is the screen format for this specific SKU?
This SKU is configured for a 16:9 HDTV aspect ratio, making it suitable for modern high-definition video presentations.
