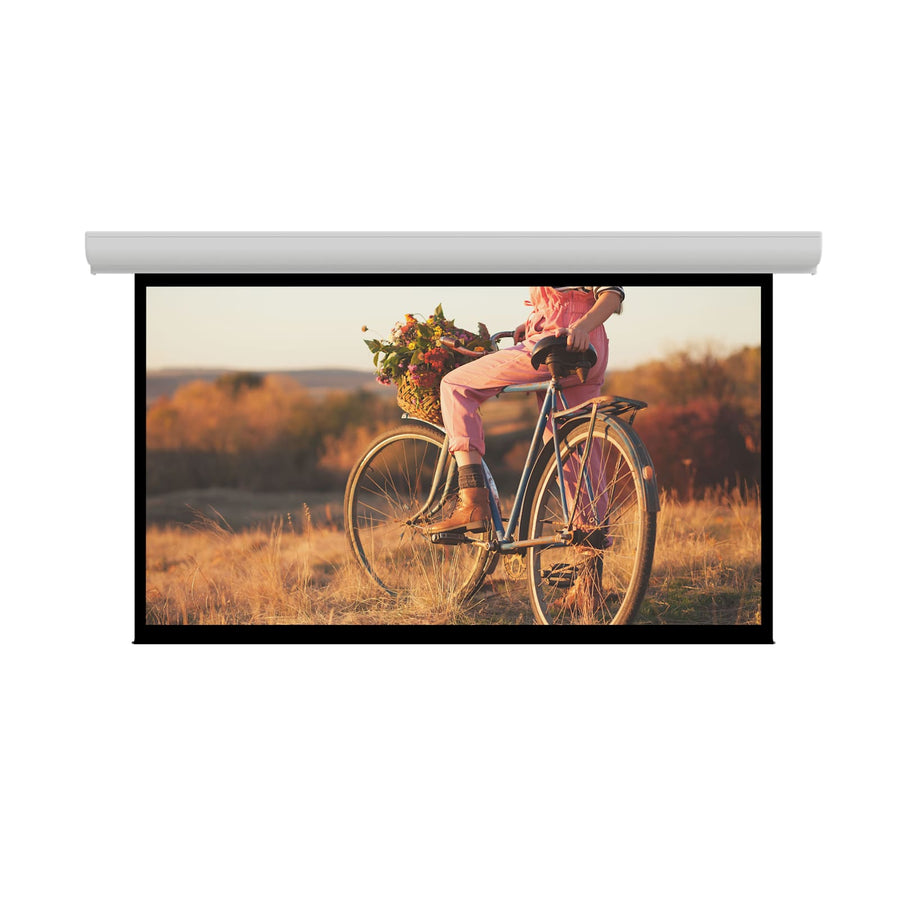

Da-Lite Contour Electrol, 50" x 80" with High Contrast Matte White - 37567LS
50" x 80" electric projection screen with High Contrast Matte White surface and standard low voltage control
The Da-Lite 37567LS is a Contour Electrol series electric screen designed for flexible ceiling or wall mounting in professional environments. This 50" x 80" unit features a 94 in (238.8 cm) diagonal and utilizes a High Contrast Matte White non-tensioned surface optimized for front projection. The screen uses a standard silent drive system to maintain quiet operation during deployment. For integration, it includes standard low voltage control (LVC) with a dry contact interface and a projector trigger (5-12V) to automate screen movement with your display equipment. This TAA compliant model features a standard white powder-coated aluminum finish and a black backing to retain maximum projected brightness. Note that this is a non-tensioned screen; installers requiring a Tensioning Cable System should look to the Tensioned Contour Electrol series instead.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 94 in (238.8 cm) |
| Screen Height | 50 in (127 cm) |
| Shipping Dimensions | 101.25" x 13" x 10" (257.2 x 33 x 25.4 cm) |
| Shipping Weight | 56 lbs (25.4 kg) |
| Size | 50" x 80" or 94" diagonal |
| Application | CeilingWall |
| Built-In Control | Standard Low Voltage Control |
| Federal Ops Country of Origin | US |
All other specifications 9
| Motor | Standard 120V (60Hz) |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Surface | High Contrast Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 717068576049 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Locking Switch Cover Plate
98837$102.40
Questions about this part
Will the Da-Lite 37567LS work with my projector trigger?
Yes, this screen includes a 5-12V projector trigger to allow the motor to synchronize with your display equipment.
What control options are available for the 37567LS?
The screen features a standard low voltage control (LVC) and can be paired with accessories like the DL16524 infrared remote controller or the DL16522 RF (BLE) remote controller.
Does this screen include a tensioning system?
No, this SKU features a non-tensioned surface; for models equipped with a Tensioning Cable System, please refer to the Tensioned Contour Electrol series.
Can I mount the 37567LS on a wall?
Yes, the Contour Electrol series is designed for both ceiling and wall applications.
What is the surface finish of this screen?
This model comes with a High Contrast Matte White surface and a standard white powder-coated aluminum finish.
