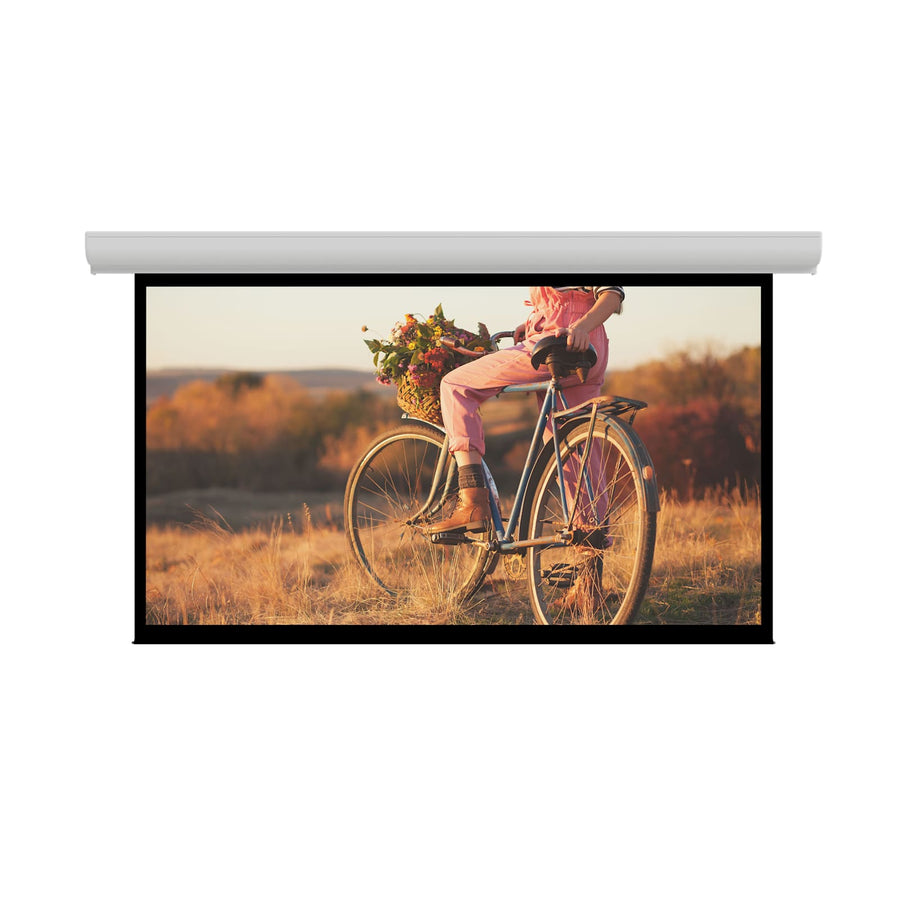

Da-Lite Contour Electrol, 50" x 80" with High Contrast Matte White - 37567ELS
Electric projection screen for ceiling or wall mounting, 50" x 80" with High Contrast Matte White surface
The Da-Lite 37567ELS is an electric projection screen designed for both ceiling and wall applications. This 50" x 80" (94" diagonal) model features a High Contrast Matte White non-tensioned surface, making it a suitable choice for front projection environments. It utilizes a standard silent drive system to ensure whisper-quiet operation during deployment. The screen is configured with a 16:10 wide aspect ratio and includes a standard black backing to help retain projected brightness. This unit features a standard low voltage control (LVC) system and a dry contact interface, providing flexible integration for various control systems. It also includes a 5-12V projector trigger for automated deployment. For installers requiring compliance for federal projects, this SKU is TAA compliant and includes a motor rated for 220V (50Hz) for export use. This specific model is a non-tensioned screen; if a tensioned system is required, please refer to the Tensioned Contour Electrol series.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 94 in (238.8 cm) |
| Screen Height | 50 in (127 cm) |
| Shipping Weight | 56 lbs (25.4 kg) |
| Size | 50" x 80" or 94" diagonal |
| Application | CeilingWall |
| Built-In Control | Standard Low Voltage Control |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
All other specifications 6
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Surface | High Contrast Matte White (non-tensioned) |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Locking Switch Cover Plate
98837$102.40
Questions about this part
Will the 37567ELS fit my projection setup?
This model is designed for front projection with a 16:10 wide aspect ratio. The High Contrast Matte White surface is non-tensioned and provides a standard resolution viewing area of 50" x 80" (94" diagonal).
What control options are compatible with this screen?
The screen features standard low voltage control (LVC) and a dry contact interface. You can add specialized control via accessories like the Da-Lite Screen Controller (DL15316) or the Smart Low Voltage Wall Switch (DL16622).
Does this screen include a tensioning system?
No, the 37567ELS is a non-tensioned screen. For applications requiring a tensioned surface, you should look for the Tensioned Contour Electrol series instead.
Can this screen be used in federal projects?
Yes, this SKU is TAA compliant and is manufactured in the US, making it suitable for federal government installations.
How does the 37567ELS differ from the standard Contour Electrol?
The 37567ELS is a specific 50" x 80" configuration with a High Contrast Matte White surface and a 220V (50Hz) export motor, whereas the series offers various sizing and surface options.
