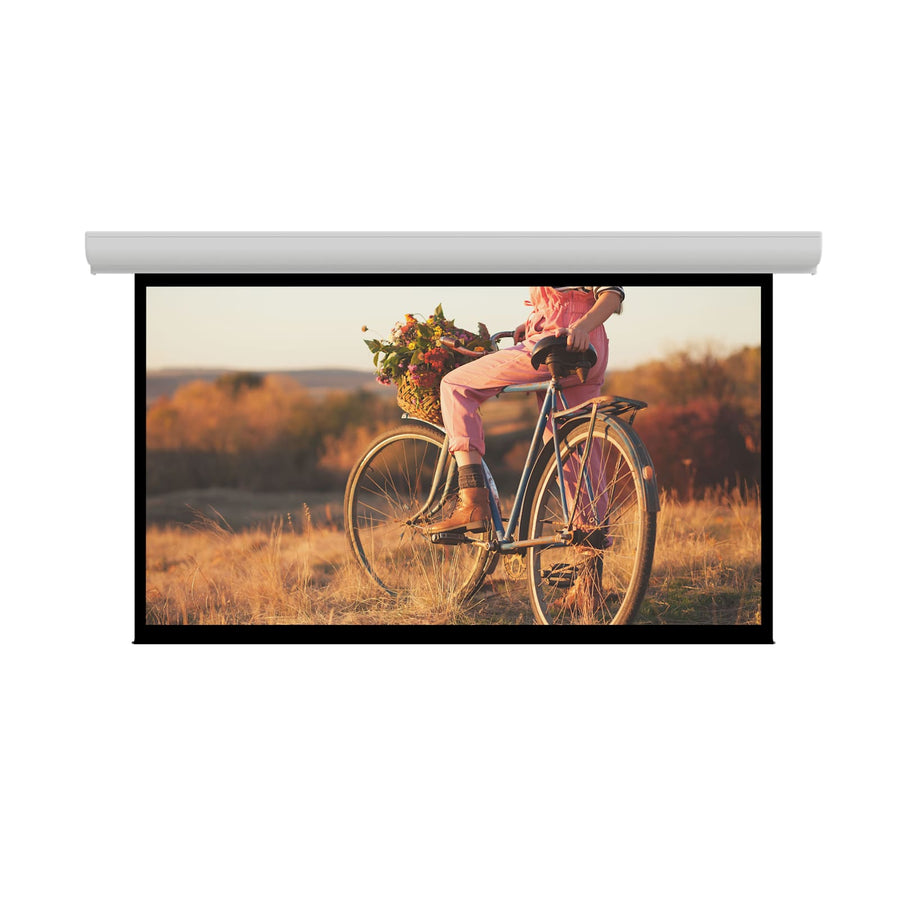

Da-Lite Contour Electrol, 50" x 67" with Matte White - 88360LS
Electric 50" x 67" (84" diagonal) projection screen with Matte White surface and standard 120V motor for ceiling or wall mounting
The Da-Lite Contour Electrol 88360LS is an electric projection screen designed for versatile ceiling or wall mounting in professional environments. This 50" x 67" (84" diagonal) unit features a non-tensioned Matte White surface, making it a reliable choice for front projection applications. It is built with a standard 120V (60Hz) motor and utilizes a standard silent drive system to ensure quiet operation during deployment. The screen utilizes a standard black backing to help retain projected brightness and features a standard white powder-coated aluminum finish. For control flexibility, this model includes a standard low voltage control (LVC) interface, which features a dry contact interface and a 5-12V projector trigger. This SKU is a non-tensioned model; if your application requires a Tensioning Cable System, you should consider the Tensioned Contour Electrol series instead.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 84 in (213.4 cm) |
| Screen Height | 50 in (127 cm) |
| Shipping Dimensions | 87.25" x 13" x 10" (221.6 x 33 x 25.4 cm) |
| Shipping Weight | 51 lbs (23.1 kg) |
| Size | 50" x 67" or 84" diagonal |
| Application | CeilingWall |
| Built-In Control | Standard Low Voltage Control |
| Federal Ops Country of Origin | US |
All other specifications 9
| Motor | Standard 120V (60Hz) |
| Projection Type | Front Projection |
| Screen Format | Video (4:3) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 717068232792 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller - DL15316
DL15316$504.00
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Locking Switch Cover Plate
98837$102.40
Questions about this part
Does the 88360LS include a tensioning system?
No, this is a non-tensioned screen. For a version with a Tensioning Cable System, you will need to select a Tensioned Contour Electrol model.
What kind of control interface does this screen use?
The 88360LS features standard low voltage control (LVC) with a dry contact interface and supports a 5-12V projector trigger for automated operation.
Can I use a remote control with this screen?
Yes, you can add remote capability by purchasing compatible controllers such as the Da-Lite DL16524 with an infrared remote or the DL16522 with an RF (BLE) remote.
Is the 88360LS TAA compliant for government contracts?
Yes, this product is TAA compliant and is manufactured in the US.
What mounting options are available for the Contour Electrol?
The 88360LS is designed for both ceiling and wall mounting applications.
