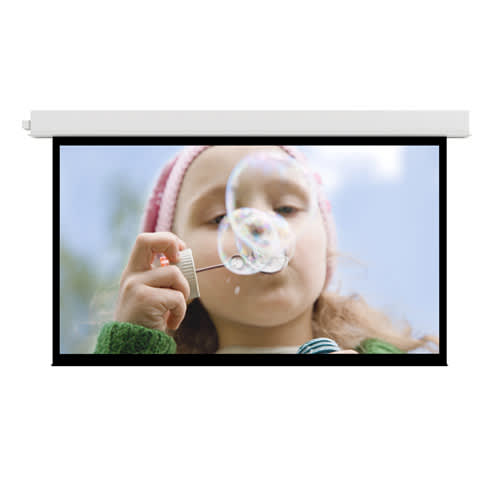

Da-Lite Advantage Series, 87" x 139" with Matte White - 34524FL
Ceiling recessed electric screen for front projection, 87" x 139" size, Matte White non-tensioned surface, TAA compliant
The Da-Lite 34524FL is an Advantage Series electric ceiling recessed screen designed for large venue front projection. This 87" x 139" screen features a 164" diagonal and is finished with a Matte White non-tensioned surface. The unit is configured with a standard 120V (60Hz) motor and includes standard low voltage control for flexible operation. This specific SKU is for the surface, roller, and motor assembly only; the case or box must be ordered separately. Built for high-end aesthetics, the assembly utilizes a standard black drop and a slot closure door. The white powder-coated case is UL plenum rated, making it suitable for specific air handling requirements. This TAA compliant solution includes a standard black backing to maintain high projected brightness on the front projection surface. The assembly is designed for seamless installation with two-stage options, allowing the case to be installed during rough-in while the surface assembly is handled during the finishing stage.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 164 in (416.6 cm) |
| Screen Height | 87 in (221 cm) |
| Shipping Dimensions | 154" x 8" x 6" (391.2 x 20.3 x 15.2 cm) |
| Shipping Weight | 67 lbs (30.4 kg) |
| Size | 87" x 139" or 164" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 13
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 717068102842 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Locking Switch Cover Plate
98837$102.40
Questions about this part
Will this screen fit my ceiling application?
Yes, the 34524FL is designed specifically for ceiling recessed applications and features a white powder-coated case.
What do I need to purchase to complete the installation?
This SKU is for the surface, roller, and motor assembly only; the case or box must be ordered separately to complete the setup.
Does this screen include the control system?
It features built-in standard low voltage control, but you can also add accessories like the DL15316 or DL16522 controller for different interface needs.
Is this product TAA compliant?
Yes, this product is TAA compliant, making it suitable for government and regulated projects.
What type of projection is required?
This is a front projection screen featuring a Matte White surface and a standard black drop.
