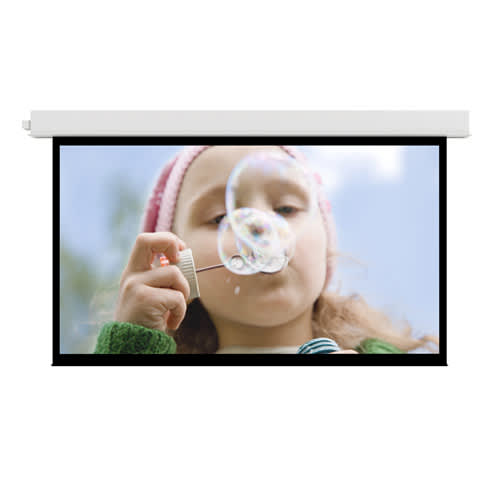

Da-Lite Advantage Series, 84" x 84" with Matte White - 84256FLS
Square 84" x 84" ceiling recessed electric screen with Matte White surface and SightLine technology
The Da-Lite 84256FLS is an Advantage Series ceiling recessed electric screen designed for large venue environments. This 84" x 84" square format screen features a Matte White non-tensioned surface and a standard black drop. This SKU is a product selection for the Surface, Roller, and Motor Assembly only; the case and box must be ordered separately. It is designed for front projection applications and includes a standard 120V (60Hz) motor with built-in standard low voltage control. A key feature of this series is the SightLine technology, which utilizes a suspension system with thin cables to create a floating screen appearance, eliminating the need for a traditional black border. The white powder-coated case is UL Plenum rated, making it suitable for specific ceiling installation requirements. For installation, this series offers a two-stage option where the case is installed during rough-in and the surface assembly is added during finishing. This model is TAA compliant, ensuring it meets specific government procurement standards.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 119 in (302.3 cm) |
| Screen Height | 84 in (213.4 cm) |
| Shipping Dimensions | 94" x 8" x 6" (238.8 x 20.3 x 15.2 cm) |
| Shipping Weight | 29 lbs (13.2 kg) |
| Size | 84" x 84" |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 13
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | Square |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 717068164628 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller - DL15316
DL15316$504.00
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Locking Switch Cover Plate
98837$102.40
Questions about this part
Will the Da-Lite 84256FLS work with my existing controls?
Yes, it features standard low voltage control. For advanced integration, you can add the Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector (DL16523) or the Smart Low Voltage Wall Switch (DL16622).
Is the 84256FLS a complete installation kit?
No, this specific SKU is the Surface, Roller, and Motor Assembly only. You must order the corresponding case or box separately to complete the installation.
How does the SightLine feature affect installation?
SightLine provides a floating screen appearance using a cable suspension system, which allows for variable vertical placement of the screen between the ceiling and the top of the screen up to 70" (standard).
What type of projection is this screen designed for?
The 84256FLS is designed for front projection and features a standard black backing to help retain brightness on the Matte White surface.
What is required for ceiling installation?
The Advantage Series allows for a two-stage installation where the case is installed during rough-in and the surface assembly is added during finishing. The case is UL Plenum rated for recessed ceiling applications.
