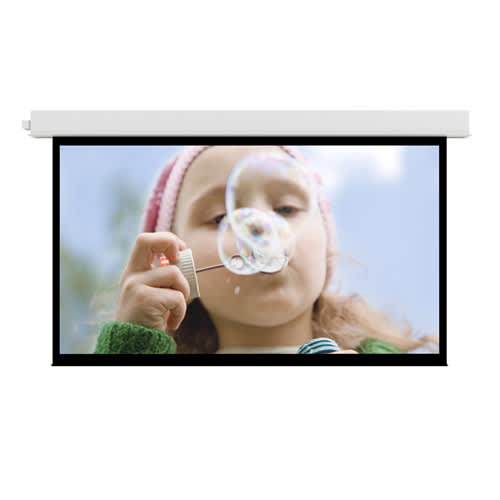

Da-Lite Advantage Series, 72.5" x 116" with Matte White - 70136EBLS
Ceiling recessed electric screen for large venues, 72.5" x 116" size, featuring a matte white non-tensioned surface and TAA compliance
The Da-Lite 70136EBLS is an electric, ceiling recessed projection screen designed for large venue applications. This 72.5" x 116" (137" diagonal) screen features a matte white, non-tensioned surface optimized for front projection. It utilizes a 16:10 wide screen format, making it suitable for modern digital content. The unit is equipped with a standard black drop and a slot closure door. For installation flexibility, the Advantage Series is designed for two-stage mounting: the case can be installed during the rough-in stage, while the screen surface assembly is attached during final finishing. This specific model is built for export, featuring a 220V (50Hz) motor with built-in standard low voltage control. This SKU is TAA compliant and is intended as a case/box only for rough-in purposes. The white powder-coated case is UL plenum rated, ensuring compliance for many commercial ceiling installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 137 in (348 cm) |
| Screen Height | 72.5 in (184.2 cm) |
| Shipping Weight | 115 lbs (52.2 kg) |
| Size | 72.5" x 116" or 137" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
| Drop Type | Standard Black Drop |
All other specifications 11
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Case/Box Only for Rough-In |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller - DL15316
DL15316$504.00
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Locking Switch Cover Plate
98837$102.40
Questions about this part
Will this screen fit my ceiling installation?
Yes, the 70136EBLS is a ceiling recessed screen designed for two-stage installation, allowing the case to be installed during the rough-in construction phase.
Is the 70136EBLS TAA compliant?
Yes, this model is TAA compliant and features a UL plenum rated case for specific commercial requirements.
What voltage does the motor require?
The motor in this SKU is a 220V (50Hz) model specifically intended for export use.
What accessories are compatible with this screen?
You can add various Da-Lite controllers, such as the DL16524 infrared remote controller or the DL16521 PoE injector controller.
Does this screen include a wall switch?
This model includes a standard Decora-style, three-button wall switch for operation via its built-in low voltage control.
