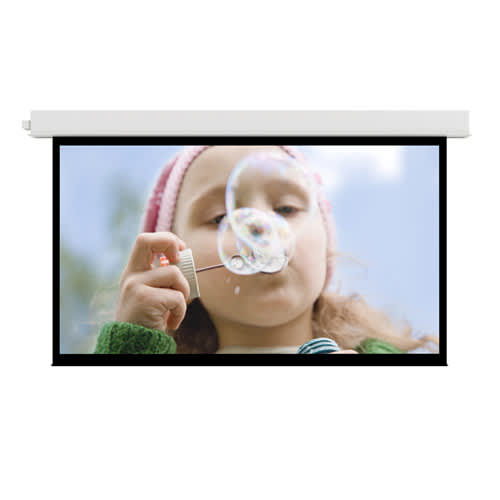

Da-Lite Advantage Series, 69" x 92" with Matte White - 84300BLS
120" diagonal ceiling recessed electric screen, 69" x 92" matte white surface, video 4:3 format
The Da-Lite 84300BLS is a 120" diagonal Advantage Series ceiling recessed electric screen designed for professional large venue environments. This 69" x 92" projection surface features a matte white finish and is configured in a 4:3 video format for front projection. This SKU is a Case/Box Only for Rough-In, specifically designed for a two-stage installation process. The screen housing can be installed during the rough-in construction stage, while the surface assembly is installed during the finishing stage to accommodate the ceiling trim. The unit utilizes a standard 120V (60Hz) motor and includes standard low voltage control (LVC) for flexible operation. For enhanced visual performance on front projection surfaces, the screen features a standard black backing to retain projected brightness. This TAA compliant model is constructed with a white powder-coated, UL Plenum rated case to maintain a clean aesthetic in professional installs.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 120 in (304.8 cm) |
| Screen Height | 69 in (175.3 cm) |
| Shipping Dimensions | 110" x 13" x 10" (279.4 x 33 x 25.4 cm) |
| Shipping Weight | 90 lbs (40.8 kg) |
| Size | 69" x 92" or 120" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 13
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Case/Box Only for Rough-In |
| Projection Type | Front Projection |
| Screen Format | Video (4:3) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 717068567030 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller - DL15316
DL15316$504.00
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Locking Switch Cover Plate
98837$102.40
Questions about this part
What are the dimensions of the 84300BLS screen?
The screen has a 120 in (304.8 cm) diagonal, a 69 in (175.3 cm) height, and a total surface size of 69" x 92".
How do I control the 84300BLS motor?
This model features a standard 120V (60Hz) motor with built-in standard low voltage control (LVC). You can also add a Da-Lite Screen Controller such as the DL15316 for additional options.
Is the 84300BLS suitable for plenum environments?
Yes, this model features a UL Plenum rated case, making it suitable for specific air handling requirements in professional installations.
What do I need for the installation of this recessed screen?
The 84300BLS is a Case/Box Only for Rough-In. Installers will need to install the housing during rough-in and the surface assembly during the finishing stage.
Does this screen include the necessary controls?
The screen includes standard low voltage control. For advanced options, you can purchase accessories like the DL16524 infrared remote controller or the DL16521 PoE injector controller.
