Da-Lite Advantage Series, 65" x 116" with High Contrast Matte White - 92619EFLS
Ceiling recessed electric screen, 65" x 116" (133" diagonal) with High Contrast Matte White surface and 220V motor

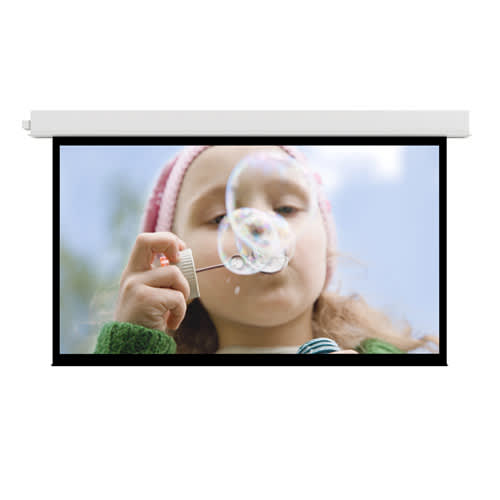

The Da-Lite 92619EFLS is a 133 in (337.8 cm) diagonal Advantage Series ceiling recessed electric screen designed for professional front projection environments. This specific model features a 65 in (165.1 cm) screen height and a 65" x 116" screen format in 16:9 HDTV aspect ratio. It is equipped with a High Contrast Matte White non-tensioned surface and a standard black backing to maintain projected brightness. This unit is configured for international use with a 220V (50Hz) motor and includes standard low voltage control. As a surface, roller, and motor assembly, this SKU is intended for use with a separate case or box. The Advantage Series is designed to be installed in a ceiling recessed application, offering a two-stage installation where the screen case can be installed during rough-in construction and the surface assembly added during the finishing stage. This SKU is TAA compliant and features a UL plenum rated case.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 133 in (337.8 cm) |
| Screen Height | 65 in (165.1 cm) |
| Shipping Weight | 42 lbs (19.1 kg) |
| Size | 65" x 116" or 133" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
| Drop Type | Standard Black Drop |
All other specifications 11
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | High Contrast Matte White (non-tensioned) |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
What do I need to purchase to complete this screen installation?
This SKU is a surface, roller, and motor assembly only; the screen case or box must be ordered separately.
Will this screen work with my existing control system?
The 92619EFLS includes standard low voltage control. You can add compatible accessories like the Da-Lite DL16622 Smart Low Voltage Wall Switch.
Is this screen suitable for ceiling recessed installation?
Yes, this is an electric ceiling recessed screen featuring a two-stage installation process for flexibility during construction.
Can I use a remote control with this model?
Yes, you can integrate a Da-Lite DL16522 RF (BLE) remote or a DL16524 Infrared remote controller.
Does this screen meet TAA requirements?
Yes, the 92619EFLS is TAA compliant and the case is UL plenum rated.
