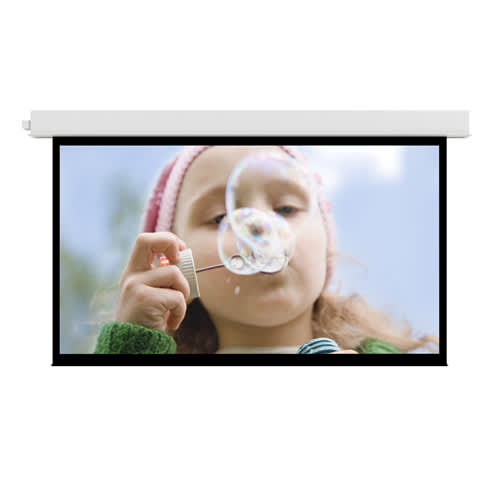

Da-Lite Advantage Series, 60" x 80" with Matte White - 84299BLS
100" diagonal ceiling recessed electric screen with 60" x 80" matte white surface and standard low voltage control
The Da-Lite 84299BLS is a ceiling recessed electric screen designed for front projection in large venue environments. This 100 in (254 cm) diagonal screen features a 60 in (152.4 cm) height and a 4:3 video screen format. Designed for high-end architectural integration, this Advantage Series model includes a white powder-coated case and a standard black drop. The surface is a non-tensioned matte white designed to maximize projected brightness for standard resolution applications. This unit is designed for two-stage installation, allowing the case to be installed during the rough-in construction phase and the screen surface assembly to be completed during the finishing stage. The series features a white powder-coated case and a slot closure door. For installation, sliding brackets provide mounting flexibility for securing the housing to the structure above a drop ceiling. This model operates on a standard 120V (60Hz) motor and includes built-in standard low voltage control. This TAA compliant product is manufactured in the US.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 100 in (254 cm) |
| Screen Height | 60 in (152.4 cm) |
| Shipping Dimensions | 98" x 13" x 10" (248.9 x 33 x 25.4 cm) |
| Shipping Weight | 78 lbs (35.4 kg) |
| Size | 60" x 80" or 100" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 13
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Case/Box Only for Rough-In |
| Projection Type | Front Projection |
| Screen Format | Video (4:3) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 717068566750 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller - DL15316
DL15316$504.00
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Locking Switch Cover Plate
98837$102.40
Questions about this part
Will the 84299BLS fit my ceiling installation?
This is a ceiling recessed screen designed for installation during the rough-in stage. It features sliding installation brackets for mounting the housing to the structure above a drop ceiling.
What electrical requirements are needed for the 84299BLS?
The screen utilizes a standard 120V (60Hz) motor and includes built-in standard low voltage control for simplified installation.
What accessories are required for remote control operation?
You can add control flexibility using the Da-Lite Screen Controller with Infrared Remote (DL16524) or the Da-Lite Screen Controller with PoE Injector (DL16521).
Is this screen TAA compliant for government projects?
Yes, the 84299BLS is TAA compliant and is manufactured in the United States.
What is the surface type for this projector screen?
The 84299BLS features a matte white, non-tensioned surface optimized for front projection in large venue settings.
