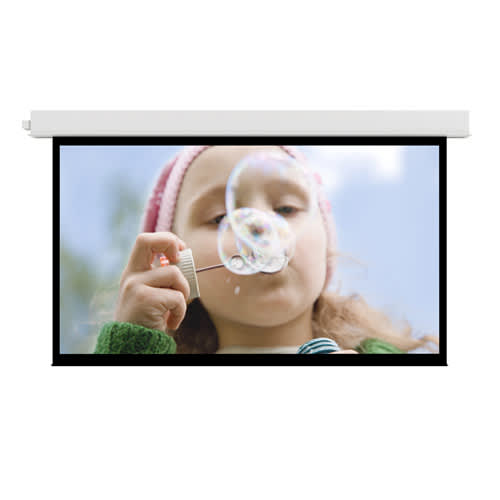

Da-Lite Advantage Series, 50" x 67" with High Contrast Matte White - 92611EBLS
Ceiling recessed electric screen for 4:3 video, 50" x 67" size, featuring High Contrast Matte White surface
The Da-Lite 92611EBLS is an Advantage Series ceiling recessed electric screen designed for front projection applications. This 84 in (213.4 cm) diagonal unit features a 50 in (127 cm) height and is configured in a 4:3 video screen format. It utilizes a High Contrast Matte White non-tensioned surface designed to optimize image clarity in large venue environments. The screen features a standard black drop and a slot closure door to manage the appearance when retracted. This specific SKU is configured with a 220V (50Hz) motor for export markets and includes standard low voltage control. For installation, this unit is designed for ceiling recessed applications, allowing the screen case to be installed during the rough-in construction stage to conceal the opening. The white powder-coated case provides a clean aesthetic, and the UL plenum rated case ensures compliance with safety requirements for air-handling spaces. This TAA compliant solution is manufactured in the US.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 84 in (213.4 cm) |
| Screen Height | 50 in (127 cm) |
| Shipping Weight | 70 lbs (31.8 kg) |
| Size | 50" x 67" or 84" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
| Drop Type | Standard Black Drop |
All other specifications 10
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Case/Box Only for Rough-In |
| Projection Type | Front Projection |
| Screen Format | Video (4:3) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | High Contrast Matte White (non-tensioned) |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
What is the required mounting orientation for the 92611EBLS?
This is a ceiling recessed electric screen designed for front projection applications.
Will this screen work with my existing low voltage controls?
The 92611EBLS includes standard low voltage control. Additional accessories like the DL16522 RF (BLE) remote or DL16524 infrared remote are available for expanded operation.
What voltage is required for this export model?
This specific model is equipped with a 220V (50Hz) motor intended for export use.
Is this screen suitable for plenum-rated ceiling environments?
Yes, this model features a UL plenum rated case, making it suitable for such installations.
What is the surface finish of the 92611EBLS?
The screen features a High Contrast Matte White non-tensioned surface designed for standard resolution front projection.
