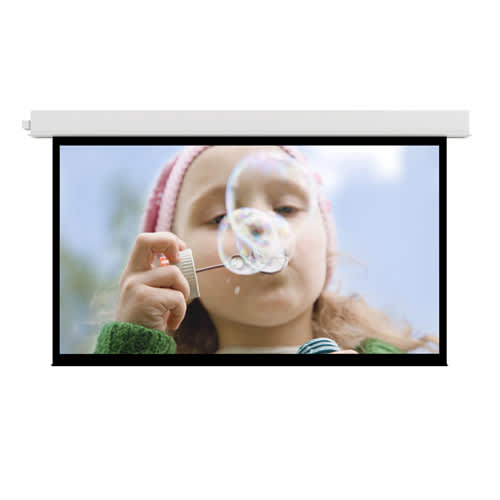

Da-Lite Advantage Series, 45" x 80" with High Contrast Matte White - 92616EBLS
Ceiling recessed electric screen with High Contrast Matte White surface, 45" x 80" dimensions, and 220V motor
The Da-Lite 92616EBLS is an Advantage Series ceiling recessed electric screen designed for professional large venue environments. This 45" x 80" (92" diagonal) screen features a High Contrast Matte White non-tensioned surface, which is optimized for front projection to maintain high image brightness. The unit is equipped with a 220V (50Hz) motor specifically designed for export markets. For installation flexibility, this series is designed for a two-stage process: the case can be installed during the rough-in construction stage, while the screen surface assembly is installed during the finishing stage. The housing includes a slot closure door and a standard black drop. This model is TAA compliant and features a white powder-coated case for a clean aesthetic. The built-in standard low voltage control allows for flexible operation, and the standard black backing is used to help retain projected brightness on the front projection surface.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 92 in (233.7 cm) |
| Screen Height | 45 in (114.3 cm) |
| Shipping Weight | 86 lbs (39 kg) |
| Size | 45" x 80" or 92" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
| Drop Type | Standard Black Drop |
All other specifications 11
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Case/Box Only for Rough-In |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | High Contrast Matte White (non-tensioned) |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
What is the purpose of the 220V motor in this model?
The 220V (50Hz) motor is specifically configured for export markets to ensure compatibility with international power standards.
Does this screen include the mounting hardware for a ceiling installation?
This specific SKU is listed as Case/Box Only for Rough-In, meaning it is intended for the initial stage of ceiling installation.
What type of projection is this screen designed for?
The 92616EBLS is designed for front projection using a High Contrast Matte White surface.
Is this screen TAA compliant for government contracts?
Yes, this product is TAA compliant and holds TAA certification.
What accessories are required for remote operation?
You can add a Da-Lite Screen Controller with an Infrared Remote (DL16524) or an RF (BLE) Remote (DL16522) for wireless control.
