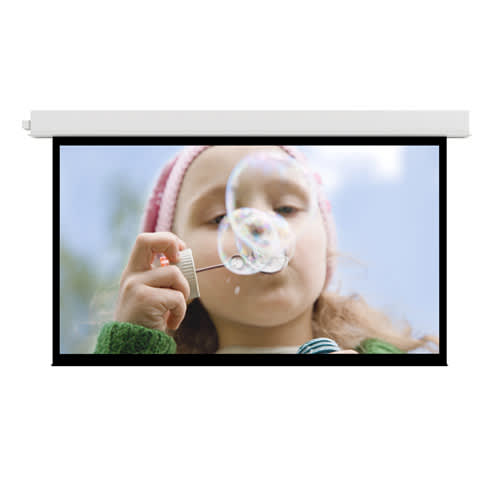

Da-Lite Advantage Series, 43" x 57" with High Contrast Matte White - 92610EBLS
Ceiling recessed electric screen, 43" x 57" surface with High Contrast Matte White for front projection
The Da-Lite 92610EBLS is a ceiling recessed electric screen designed for professional video applications requiring a clean, integrated look. This specific SKU features a 43" x 57" High Contrast Matte White surface with a 72 in (182.9 cm) diagonal, optimized for front projection and standard resolution video (4:3) formats. This model is part of the Advantage Series, which utilizes a two-stage installation process. This allows installers to mount the white powder-coated case during the rough-in construction stage and install the screen surface assembly during the finishing stage. The unit includes a standard black drop and a slot-style closure door. Built for large venue applications, this TAA compliant screen operates via a 220V (50Hz) motor designed for export markets and features standard low voltage control for flexible integration. The white powder-coated case and standard black backing are engineered to maximize projected brightness on the front projection surface.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 72 in (182.9 cm) |
| Screen Height | 43 in (109.2 cm) |
| Shipping Weight | 62 lbs (28.1 kg) |
| Size | 43" x 57" or 72" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
| Drop Type | Standard Black Drop |
All other specifications 10
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Case/Box Only for Rough-In |
| Projection Type | Front Projection |
| Screen Format | Video (4:3) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | High Contrast Matte White (non-tensioned) |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Questions about this part
Does the 92610EBLS include a motor for international use?
Yes, this Advantage Series screen is designed specifically for ceiling recessed applications. It features a 220V (50Hz) motor intended for export markets.
What is the surface type and aspect ratio of this screen?
This model features a High Contrast Matte White non-tensioned surface designed for 4:3 video projection. It has a 72 in (182.9 cm) diagonal and a 43 in (109.2 cm) height.
Can I install the 92610EBLS during the rough-in stage?
Yes, the Advantage Series allows for a two-stage installation. You can install the white powder-coated case during the rough-in stage and the surface assembly during the final finishing stage.
What control options are compatible with this screen?
The 92610EBLS comes with standard low voltage control (LVC). For additional control flexibility, you can use accessories such as the Da-Lite DL16522 RF (BLE) Remote or the DL16622 Smart Low Voltage Wall Switch.
What is the compliance status of this Da-Lite screen?
The 92610EBLS is TAA compliant and the case is UL Plenum rated for safety in ceiling installations.
