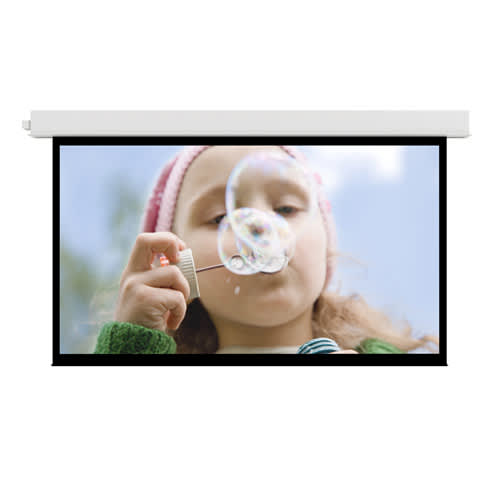

Da-Lite Advantage Series, 105" x 140" with Matte White - 84302EL
Recessed electric ceiling screen for 4:3 video projection, featuring a 105" x 140" matte white surface and TAA compliance
The Da-Lite 84302EL is an Advantage Series ceiling recessed electric screen designed for professional front projection environments. This complete screen assembly features a 105" x 140" (180" diagonal) matte white non-tensioned surface specifically configured for 4:3 video formats. To ensure a clean architectural finish, the series includes a built-in ceiling trim that conceals the rough opening, eliminating the need for additional trim work after installation. This unit is equipped with a standard black drop and a slot closure door. For installation flexibility, the housing can be mounted to structures above a drop ceiling using sliding installation brackets, and the two-stage installation allows the case to be set during rough-in construction while the surface assembly is completed during the finishing stage. This TAA compliant model is designed for large venue applications and includes a white powder-coated case. It is engineered for export markets requiring a 220V (50Hz) motor and features an UL Plenum rated case for safety in ceiling plenums.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 180 in (457.2 cm) |
| Screen Height | 105 in (266.7 cm) |
| Shipping Dimensions | 158" x 13" x 10" (401.3 x 33 x 25.4 cm) |
| Shipping Weight | 147 lbs (66.7 kg) |
| Size | 105" x 140" or 180" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 13
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Complete Screen |
| Projection Type | Front Projection |
| Screen Format | Video (4:3) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 717068567764 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller - DL15316
DL15316$504.00
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Locking Switch Cover Plate
98837$102.40
Questions about this part
Will this screen fit a 4:3 projection setup?
Yes, the 84302EL is specifically configured for 4:3 video formats with a 105" x 140" screen size.
What is required for the electrical connection?
This unit features a 220V (50Hz) motor designed for export and includes standard low voltage control (LVC).
Can I add remote or smart controls to this screen?
Yes, you can integrate additional controls such as the DL16524 infrared remote or the DL16522 RF (BLE) remote controller.
Is this screen suitable for plenum spaces?
Yes, the Advantage Series case is UL Plenum rated, making it suitable for installation in ceiling plenums.
What tools are needed for installation?
Installers will need the tools listed in the Da-Lite Advantage Series Installation and Connections manual.
