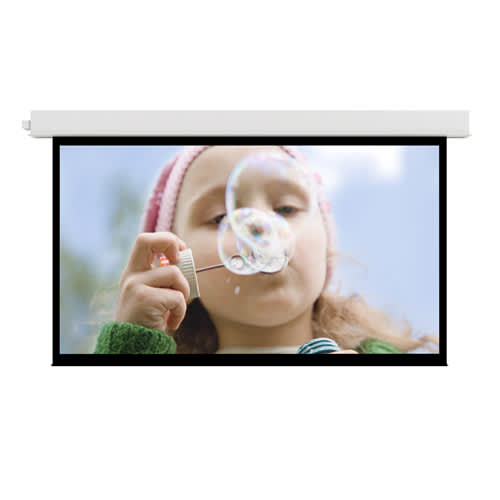

Da-Lite Advantage Series, 105" x 140" with Matte White - 84302EFL
Ceiling recessed electric screen for large venues, featuring 105" x 140" matte white surface and TAA compliance
The Da-Lite 84302EFL is a ceiling recessed electric screen designed for large venue front projection applications. This 105" x 140" (180" diagonal) screen features a matte white, non-tensioned surface and utilizes a standard black drop to maintain brightness during projection. Engineered for professional installations, this unit is TAA compliant and features an electric motor designed for 220V (50Hz) export use. This specific SKU is sold as the Surface, Roller, and Motor Assembly only; the case or box must be ordered separately. For installation efficiency, the Advantage Series offers a two-stage mounting process where the case is installed during the rough-in stage and the surface assembly is added during finishing. The unit includes standard low voltage control and is built with a white powder-coated, UL Plenum rated case for a clean, compliant aesthetic in commercial environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 180 in (457.2 cm) |
| Screen Height | 105 in (266.7 cm) |
| Shipping Weight | 67 lbs (30.4 kg) |
| Size | 105" x 140" or 180" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
| Drop Type | Standard Black Drop |
All other specifications 11
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | Video (4:3) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller - DL15316
DL15316$504.00
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Locking Switch Cover Plate
98837$102.40
Questions about this part
Is the Da-Lite 84302EFL a complete mounting solution?
No, this SKU is the Surface, Roller, and Motor Assembly only; the screen case or box must be ordered separately.
What is the required power for the 84302EFL motor?
This unit is equipped with a 220V (50Hz) motor specifically for export use.
Can I add remote control functionality to this screen?
Yes, you can integrate various controllers such as the DL16521 PoE Injector version or the DL16522 RF (BLE) Remote controller.
What type of projection is this screen intended for?
The 84302EFL is designed for front projection, utilizing a standard black drop to enhance projected brightness.
Which installation documents are available for the Advantage Series?
You can access the Advantage Series Installation and Connections manual or the product information sheet for detailed submittal data.
