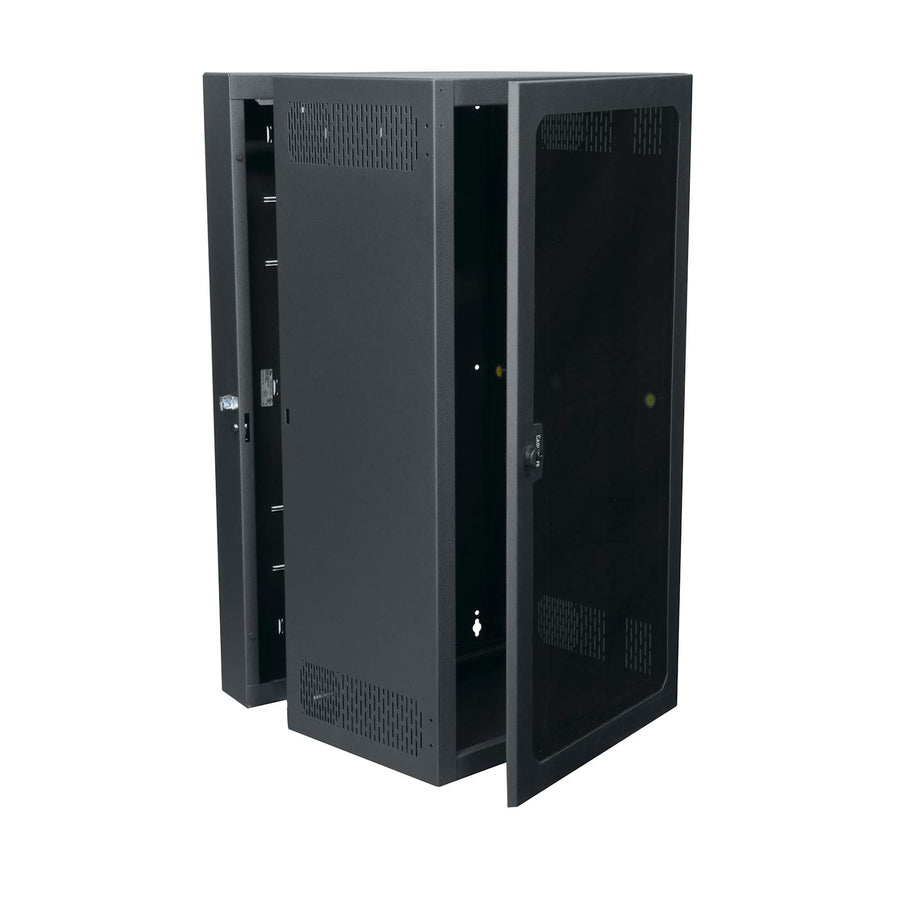

CWR Series Data Swing Wall Rack CWR-26-17PD
26 RU data swing wall rack with 17" depth, 12-24 threaded rackrails, and a locking plexi front door
The CWR-26-17PD is a specialized 26 RU data swing wall rack designed for structured cabling environments where floor and wall space are at a premium. This rack provides a versatile mounting solution for multiple patch panels and voice/data equipment. It features a welded steel construction for maximum strength and includes an adjustable wide-face rackrail with 12-24 threaded holes. To facilitate easy maintenance and cabling, the center section features a locking swing-open design, providing both front and rear access to equipment. The unit is equipped with a locking, latching plexiglass front door for security, and the door can be reversed to accommodate either left or right-hand swing requirements. This 17 in (43.2 cm) deep rack includes a bag of 50 mounting screws to assist with installation. For enhanced thermal management, an optional CWR-FKIT fan kit can be added to the enclosure.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 17 in (43.2 cm) |
| Height | 49.38 in (125.4 cm) |
| Panel Width | 19 in (48.3 cm) |
| Product Weight | 111 lbs (50.4 kg) |
| Rack Units | 26 RU |
| Shipping Weight | 136 lbs (61.7 kg) |
| UL Load Capacity | 200 lbs (90.7 kg) |
| Usable Depth | 15 in (38.1 cm) |
All other specifications 11
| Usable Height | 45.5 in (115.6 cm) |
| Width | 26 in (66 cm) |
| Available Internationally | Yes |
| Door Type | Plexi Door |
| Federal Ops Country of Origin | USA |
| Material | Steel |
| Rack Rail Type | 12-24 |
| Rack Type | Wall |
| TAA Compliant | Yes |
| UPC | 656747113116 |
| Certifications | CSA StandardGREENGUARDTAAUL Listed |
Resources
You'll need these with it
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
23 RU Lace Strip 4.75 Inches Wide with Tie Posts - 6 Piece
LACE-23-OWP$282.60
23 RU Lace Strip 3.25 Inches Wide with Tie Posts - 6 Piece
LACE-23-OP$250.20
Filter Kit for CWR and VWM Series
FILTER-R-4-2K$154.56
95 CFM Fan Kit for CWR Series Rack
CWR-FKIT$286.20
12-24 Rackscrew - 500 Piece
HP24-500$214.20
12-24 Rackscrew - 100 Piece
HP-24$46.80
PDT Low Profile Vertical Power Strip, 6 Outlet, 20A
PDT-620C-NS$264.60
PDT Low Profile Vertical Power Strip, 6 Outlet, 15A
PDT-615C-NS$232.20
PDT Low Profile Vertical Power Strip, 6 Outlet, 15A Basic Surge
PDT-615C$286.20
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 12 Outlet, 15A Hardwired
PDT-2X615S$330.30
Questions about this part
Will the CWR-26-17PD fit my standard rack equipment?
Yes, this rack utilizes 19 in (48.3 cm) panel width with 12-24 threaded rackrails to accommodate standard rack-mount equipment.
How much weight can the CWR-26-17PD support?
This unit has a UL Load Capacity of 200 lbs (90.7 kg) for mounted equipment.
What tools and hardware are needed for installation?
The unit includes a bag of 50 mounting screws, but you will need your own tools to complete the installation.
Can I manage heat within the CWR-26-17PD enclosure?
The rack is engineered for passive thermal management, but you can add a CWR-FKIT fan kit for active cooling.
How can I improve cable management in this rack?
You can integrate accessories like the HCM-1DV 1 RU Horizontal Cable Manager or LACE-23-OWP Lace Strips for organized patching.
