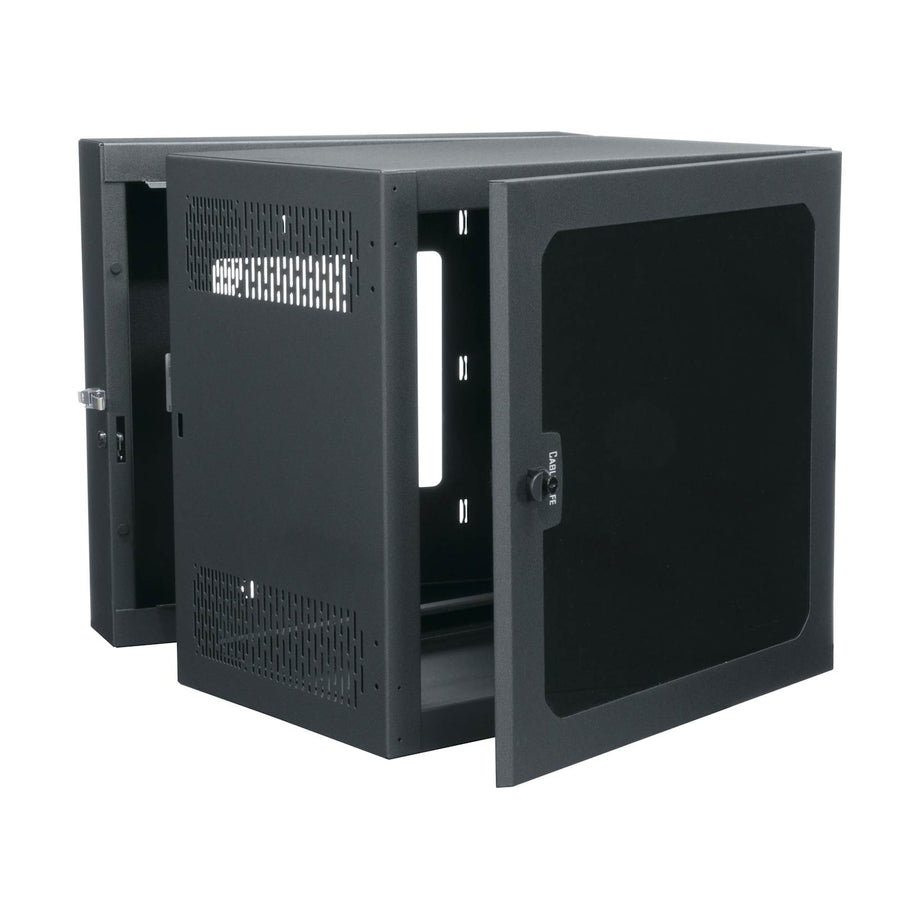

CWR Series Data Swing Wall Rack CWR-12-26PD
12 RU data swing wall rack with 26" width, 12-24 threaded rails, and a reversible locking plexi door
The CWR-12-26PD is a 12 RU data swing wall rack engineered specifically for structured cabling environments where floor and wall space are limited. This steel construction rack is designed to host multiple patch panels and voice/data equipment efficiently. It features a 26-inch width that provides essential extra space for cable management and patching. For ease of maintenance, the center section is designed to swing open, providing full front and rear access to the mounted components. The 12-24 threaded rackrail is adjustable and wide-face to accommodate various installation needs. Security is managed via a locking/latching plexi front door, which can be easily reversed to allow for either a left-hand or right-hand swing depending on the room layout. For thermal management, the enclosure is engineered for passive airflow, though an optional fan kit is available if active cooling is required for high-density hardware.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 26 in (66 cm) |
| Height | 24.88 in (63.2 cm) |
| Panel Width | 19 in (48.3 cm) |
| Product Weight | 84 lbs (38.1 kg) |
| Rack Units | 12 RU |
| Shipping Weight | 109 lbs (49.4 kg) |
| UL Load Capacity | 200 lbs (90.7 kg) |
| Usable Depth | 24 in (61 cm) |
All other specifications 11
| Usable Height | 21 in (53.3 cm) |
| Width | 26 in (66 cm) |
| Available Internationally | Yes |
| Door Type | Plexi Door |
| Federal Ops Country of Origin | Mexico |
| Material | Steel |
| Rack Rail Type | 12-24 |
| Rack Type | Wall |
| TAA Compliant | Yes |
| UPC | 656747112874 |
| Certifications | CSA StandardGREENGUARDTAAUL Listed |
Resources
You'll need these with it
100 CFM Fan Panel, Textured
QTFP-2$243.00
2 RU Select Series UPS Backup Power, 2200VA
UPS-S2200R$1,935.00
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
95 CFM Fan Kit for CWR Series Rack
CWR-FKIT$286.20
Shelf Mount Power, 8 Outlet, 15A, Basic Surge Protection
PD-815SC-PBSH$333.00
100 CFM Fan Panel, Textured & 220 - 240VAC
QTFP-2-119$243.00
100 CFM Fan Panel, 27dB, Anodized
UQFP-4RA$647.10
12-24 Rackscrew - 500 Piece
HP24-500$214.20
Filter Kit for CWR and VWM Series
FILTER-R-4-2K$154.56
12 RU Rackrail 12-24 for CWR Series
CWR-RR12$103.50
12-24 Rackscrew - 100 Piece
HP-24$46.80
2 RU Horizontal Cable Manager with Horizontal/Vertical D-Rings
HCM-2DV$74.70
Questions about this part
How do I access the rear of the equipment in the CWR-12-26PD?
The CWR-12-26PD features a locking swing-open center section that allows you to access both the front and rear of your mounted devices.
What is the maximum weight capacity for this wall rack?
This rack has a UL load capacity of 200 lbs (90.7 kg).
Can I change the direction the front door swings?
Yes, the locking plexi front door is reversible and can be configured for either a left-hand or right-hand swing.
What is included for mounting this rack?
This SKU comes with a bag of 50 mounting screws to assist with the installation process.
Does this rack support active cooling?
The rack is designed for passive thermal management, but you can add an optional CWR-FKIT fan kit if active cooling is required.
