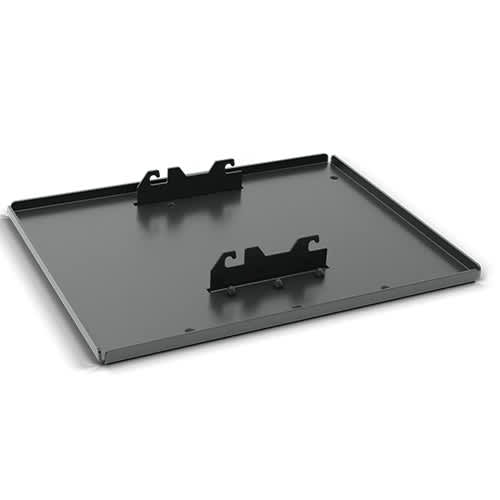

Custom VCT Interface Bracket-HC011E
Custom interface bracket for ceiling-mounted projectors, supporting 150 lbs capacity in large venue environments
The HC011E is a custom VCT Interface Bracket specifically engineered to facilitate a fast and efficient installation for your designated projector. Because these brackets are custom-made to interface with specific projector models, the hardware and configuration are tailored to the unique mounting requirements of your equipment. This solution is designed for ceiling applications, specifically within large venue environments where rapid deployment and secure attachment are critical. This unit carries a weight capacity of 150 lbs (68 kg) and is TAA compliant. To complete the ceiling installation, you may need to pair this interface with other Chief components such as a CMA165 Internal Joist Ceiling Kit or a CMA110 8 Inch (203 mm) Ceiling Plate.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
| Shipping Weight | 12.25 lbs (5.6 kg) |
| Weight Capacity | 150 lbs (68 kg) |
| Accessory Type | Interface Brackets |
| Application | Ceiling |
| Color | Black |
| Solution Type | Custom |
| Special Features | Large Venue |
| TAA Compliant | Yes |
| UPC | 841872174921 |
| Certifications | TAA |
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40

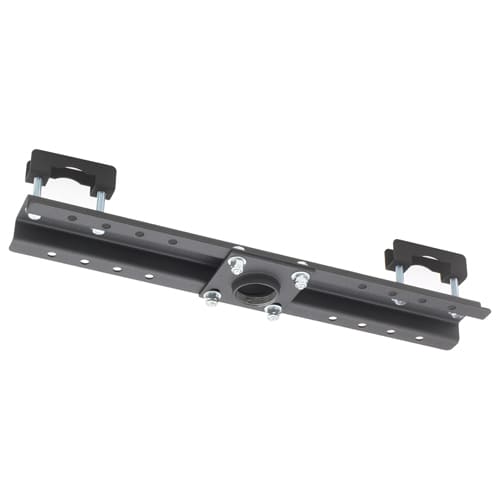

Architectural Spanning Adapter
CMA366$150.40

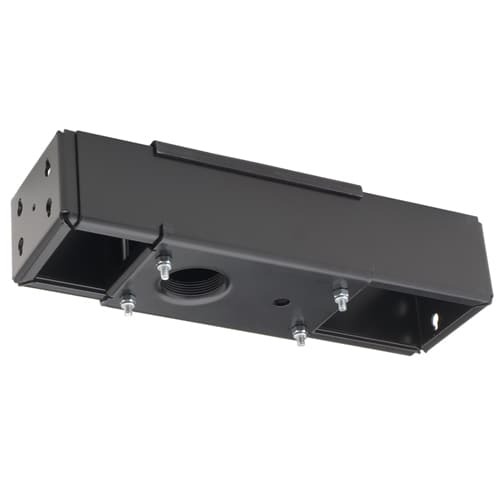

Internal Joist Mount
CMA385$135.20
Electrical Storage Enclosure
CMA160$302.40
Unistrut Adapter
CMA370$23.20
Questions about this part
Will the HC011E fit my specific projector model?
The HC011E is a custom interface bracket; its hardware and configuration vary depending on your specific projector model to ensure a precise fit.
What else do I need to buy to complete a ceiling installation?
This is an interface bracket only; you will likely need ceiling plates like the CMA110 or CMA110W, or mounting kits like the CMA165 Internal Joist Ceiling Kit.
Is this product TAA compliant?
Yes, the HC011E is TAA compliant.
What is the maximum weight this bracket can support?
This custom interface bracket is rated for a weight capacity of 150 lbs (68 kg).
Is this suitable for large venue ceiling mounts?
Yes, this solution is specifically noted for use in large venue applications.
