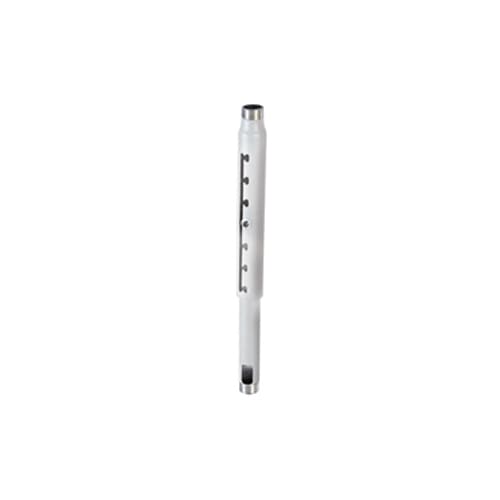

CMS0911W, 9-11' Adjustable Extension Column, Pole
White adjustable extension column providing 9' to 11' of height range with a 500 lbs capacity
The Chief CMS0911W is a white, 9' to 11' (2.74m - 3.35m) adjustable extension column designed for ceiling-mounted projector installations. This 1.5" NPT column is threaded on both ends to facilitate secure connection. It features a notched design that allows for height adjustments in 1" increments without requiring full disassembly, significantly reducing installation time. Once the desired height is reached, a set screw is used to ensure added stability. This column is TAA compliant and UL Listed. It is designed to be used in combination with any Chief 1.5" NPT ceiling plate or other compatible accessories to create a complete mounting system.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 2.3 in (5.8 cm) |
| Extension | 9' - 11' (2.74m - 3.35m) |
| Height | 136 in (345.4 cm) |
| Overall Dimensions | 136.0" x 2.3" x 2.3" (3454 x 59 x 59 mm) |
| Shipping Weight | 7 lbs (3.2 kg) |
| Weight Capacity | 500 lbs (226.8 kg) |
| Width | 2.3 in (5.8 cm) |
| Accessory Type | Extension |
All other specifications 5
| Application | Pole |
| Color | White |
| TAA Compliant | Yes |
| UPC | 841872104898 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Dual Electric Outlet Coupler
CMA504$106.40
Electrical Storage Enclosure
CMA160$302.40
CMA270 Threaded Pipe Coupler
CMA270$31.20
CMA347, Vibration Isolating Coupler
CMA347$416.00
CMA270W Threaded Pipe Coupler
CMA270W$31.20
CMS261W Column Cut-Off Adapter
CMS261W$42.40
CMS261 Column Cut-Off Adapter
CMS261$42.40
CMA152, Threaded Pipe Coupler
CMA152$45.60
Decorative Ring, 1.9 Inch ID, CMS/CPA Fixed/Inner Adjustable Column
CMA640$17.60
Questions about this part
What is the height adjustment range of the CMS0911W?
This extension column offers a total height adjustment range of 9' to 11' (2.74m - 3.35m) using 1" incremental notches.
What do I need to complete the ceiling mount installation?
You will need a Chief 1.5" NPT ceiling plate or a compatible accessory to work with this threaded column.
Does this column require disassembly to adjust the height?
No, the notched design allows for height adjustments without having to fully disassemble the column.
What is the weight capacity for this extension column?
The CMS0911W is rated for a weight capacity of 500 lbs (226.8 kg).
Which accessories are compatible with the CMS0911W?
Compatible accessories include the CMA151 1.5 Inch to 1 Inch NPT Adapter, CMA270 Threaded Pipe Coupler, and CMA274 Quick-Snap Cable Covers.
