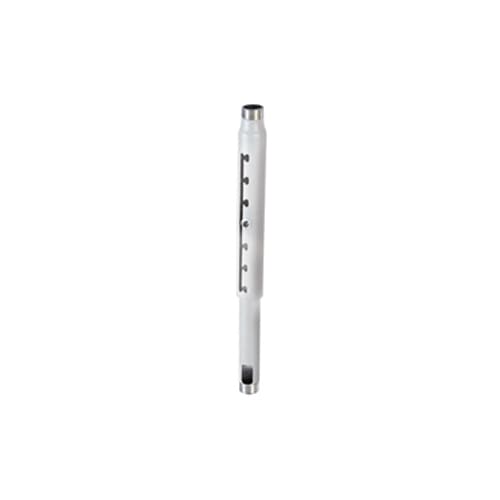

CMS0709W, 7-9' Adjustable Extension Column, Pole
White adjustable extension column for pole applications, providing a 7' - 9' height range and 500 lbs capacity
The CMS0709W is a white adjustable extension column designed for pole-based projector applications. This 1.5" NPT column is threaded on both ends and allows installers to achieve precise height adjustments in 1" increments using a notched design that requires no disassembly. This column is compatible for use with any Chief 1.5" NPT ceiling plate or other suitable accessories. The unit features a 7' - 9' (2.13m - 2.74m) extension range and includes a set screw to ensure added stability once the desired height is reached. With a weight capacity of 500 lbs (226.8 kg), this TAA compliant column provides a secure and scalable solution for high-ceiling installations. The white finish is ideal for professional environments where a clean, integrated appearance is required.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 2.3 in (5.8 cm) |
| Extension | 7' - 9' (2.13m - 2.74m) |
| Height | 108 in (274.3 cm) |
| Overall Dimensions | 108.0" x 2.3" x 2.3" (2743 x 59 x 59 mm) |
| Shipping Weight | 12.4 lbs (5.6 kg) |
| Weight Capacity | 500 lbs (226.8 kg) |
| Width | 2.3 in (5.8 cm) |
| Accessory Type | Extension |
All other specifications 5
| Application | Pole |
| Color | White |
| TAA Compliant | Yes |
| UPC | 841872104867 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Dual Electric Outlet Coupler
CMA504$106.40
Electrical Storage Enclosure
CMA160$302.40
CMA270 Threaded Pipe Coupler
CMA270$31.20
CMA347, Vibration Isolating Coupler
CMA347$416.00
CMA270W Threaded Pipe Coupler
CMA270W$31.20
CMS261W Column Cut-Off Adapter
CMS261W$42.40
CMS261 Column Cut-Off Adapter
CMS261$42.40
CMA152, Threaded Pipe Coupler
CMA152$45.60
Decorative Ring, 1.9 Inch ID, CMS/CPA Fixed/Inner Adjustable Column
CMA640$17.60
Questions about this part
How do I adjust the height of the CMS0709W column?
You can adjust the height in 1" increments using the built-in notched design, which allows you to make changes without having to disassemble the column.
What ceiling plates are compatible with this extension column?
This column can be used in combination with any Chief 1.5" NPT ceiling plate or other compatible accessories.
What accessories can I use to manage cables on this pole?
You can use Quick-Snap Cable Covers, such as the CMA274W, or electrical storage enclosures like the CMA160 to manage wiring along the column.
Is this extension column suitable for high-security installations?
Yes, the column features a notched design and a set screw to maximize stability and security once the height is set.
What is the maximum weight this column can support?
The CMS0709W has a weight capacity of 500 lbs (226.8 kg).
