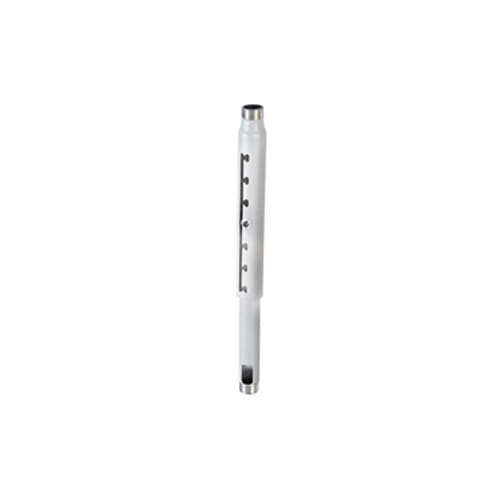

CMS0507W, 5-7' Adjustable Extension Column, Pole
White adjustable extension column for projector poles, providing a 5' to 7' height range with 1-inch incremental adjustments
The Chief CMS0507W is a white extension column designed to provide height adjustment for projector pole installations. This 1.5" NPT column is threaded on both ends and is compatible with any Chief 1.5" NPT ceiling plate or other compatible accessories. It offers a height adjustment range of 5' to 7' (1.52m - 2.13m) and allows for precision positioning using a notched design that enables adjustments in 1" increments without requiring disassembly. The inclusion of a set screw ensures added stability once the desired height is reached. This TAA compliant and UL listed component supports a weight capacity of 500 lbs (226.8 kg), making it a secure solution for professional AV mounting. The overall dimensions of the unit are 84.0" x 2.3" x 2.3" (2134 x 59 x 59 mm).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 2.3 in (5.8 cm) |
| Extension | 5' - 7' (1.52m - 2.13m) |
| Height | 84 in (213.4 cm) |
| Overall Dimensions | 84.0" x 2.3" x 2.3" (2134 x 59 x 59 mm) |
| Shipping Weight | 9.23 lbs (4.2 kg) |
| Weight Capacity | 500 lbs (226.8 kg) |
| Width | 2.3 in (5.8 cm) |
| Accessory Type | Extension |
All other specifications 5
| Application | Pole |
| Color | White |
| TAA Compliant | Yes |
| UPC | 841872104836 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Decorative Ceiling Tile Ring - CPA640W
CPA640W$17.60
CMS261W Column Cut-Off Adapter
CMS261W$42.40
Single Electric Outlet Coupler
CMA502$80.80
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Dual Electric Outlet Coupler
CMA504$106.40
Electrical Storage Enclosure
CMA160$302.40
CMA270 Threaded Pipe Coupler
CMA270$31.20
CMA347, Vibration Isolating Coupler
CMA347$416.00
CMA270W Threaded Pipe Coupler
CMA270W$31.20
CMS261 Column Cut-Off Adapter
CMS261$42.40
CMA152, Threaded Pipe Coupler
CMA152$45.60
Questions about this part
Will this column work with my existing Chief ceiling plate?
Yes, this 1.5" NPT column is designed to work in combination with any Chief 1.5" NPT ceiling plate or other compatible accessories.
How much weight can the CMS0507W support?
This extension column has a rated weight capacity of 500 lbs (226.8 kg).
How is the height adjusted on this column?
The column features a notched design for 1" incremental adjustments without needing to disassemble the assembly, and it includes a set screw for stability.
What other accessories are compatible with this extension?
Compatible accessories include the CMA274W Quick-Snap Cable Covers, the CPA640W Decorative Ceiling Tile Ring, and the CMA151 1.5 Inch to 1 Inch NPT Adapter.
Is this product TAA compliant?
Yes, the CMS0507W is TAA compliant and is UL listed.
