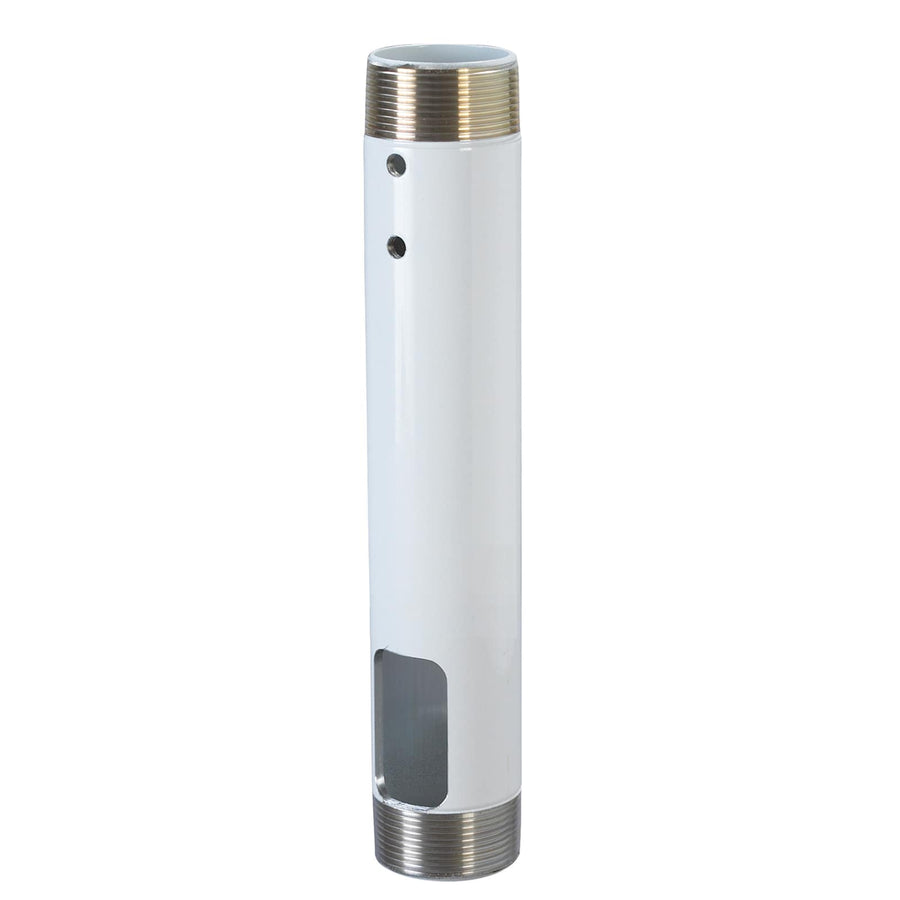

CMS024W, 24 Inch Fixed Extension Column, Pole
24 inch white extension column for lowering projectors via 1.5" NPT ceiling plates
The CMS024W is a 24 inch (61 cm) fixed extension column used to lower projectors to a specific height from the ceiling. This white aluminum column features a 1.5" NPT design that is threaded on both ends to ensure maximum strength and easy installation during a projector mount setup. This extension is designed for use in combination with any Chief 1.5" NPT ceiling plate or other compatible accessories. With a 500 lbs (226.8 kg) weight capacity, this column provides a stable, secure connection for professional AV installations. The 1.9 in (4.8 cm) diameter profile maintains a clean aesthetic while providing the necessary height adjustment for various ceiling heights.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 1.9 in (4.8 cm) |
| Extension | 2 ft (0.6 m) |
| Height | 24 in (61 cm) |
| Overall Dimensions | 24.0" x 1.9" x 1.9" (610 x 48 x 48 mm) |
| Shipping Weight | 2.18 lbs (1 kg) |
| Weight Capacity | 500 lbs (226.8 kg) |
| Width | 1.9 in (4.8 cm) |
| Accessory Type | Extension |
All other specifications 5
| Application | Pole |
| Color | White |
| TAA Compliant | Yes |
| UPC | 841872076331 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Dual Electric Outlet Coupler
CMA504$106.40
Electrical Storage Enclosure
CMA160$302.40
CMA270 Threaded Pipe Coupler
CMA270$31.20
CMA347, Vibration Isolating Coupler
CMA347$416.00
CMA270W Threaded Pipe Coupler
CMA270W$31.20
CMS261W Column Cut-Off Adapter
CMS261W$42.40
CMS261 Column Cut-Off Adapter
CMS261$42.40
CMA152, Threaded Pipe Coupler
CMA152$45.60
Decorative Ring, 1.9 Inch ID, CMS/CPA Fixed/Inner Adjustable Column
CMA640$17.60
Questions about this part
Will this column work with my existing Chief ceiling plate?
Yes, this column is designed for use with any Chief 1.5" NPT ceiling plate or other compatible accessories.
What is the weight capacity for the CMS024W?
The CMS024W supports a maximum weight capacity of 500 lbs (226.8 kg).
Does this extension column require additional adapters?
While not required for 1.5" NPT connections, you can use accessories like the CMA151 1.5 inch to 1 inch NPT adapter if your hardware requires it.
Is the CMS024W TAA compliant?
Yes, this product is TAA compliant and UL Listed.
What is the total height of this extension?
This is a fixed 24 inch (61 cm) column with an overall dimension of 24.0" x 1.9" x 1.9" (610 x 48 x 48 mm).
