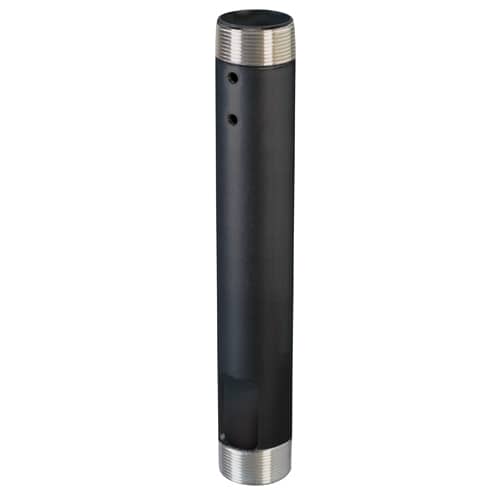

CMS024, 24 Inch Fixed Extension Column, Pole
24 inch fixed aluminum extension column for lowering projectors, 500 lbs capacity, TAA compliant
The Chief CMS024 is a 24 inch (61 cm) fixed extension column designed to lower projectors to the specific height required for a given installation. This aluminum column is part of the Speed-Connect Fixed Series and is engineered for maximum strength and easy installation in professional AV environments. The column features 1.5" NPT threading on both ends, allowing for a secure and stable connection. For proper setup, this column must be used in combination with any Chief 1.5" NPT ceiling plate or other compatible accessory. This component is TAA compliant and UL Listed. The black finish ensures it integrates cleanly into professional ceiling mounts and projector setups. This specific 24 inch model is part of a larger series of extension columns available in different lengths.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 1.9 in (4.8 cm) |
| Extension | 2 ft (0.6 m) |
| Height | 24 in (61 cm) |
| Overall Dimensions | 24.0" x 1.9" x 1.9" (610 x 48 x 48 mm) |
| Shipping Weight | 3.1 lbs (1.4 kg) |
| Weight Capacity | 500 lbs (226.8 kg) |
| Width | 1.9 in (4.8 cm) |
| Accessory Type | Extension |
All other specifications 5
| Application | Pole |
| Color | Black |
| TAA Compliant | Yes |
| UPC | 841872092775 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Dual Electric Outlet Coupler
CMA504$106.40
Electrical Storage Enclosure
CMA160$302.40
CMA270 Threaded Pipe Coupler
CMA270$31.20
CMA347, Vibration Isolating Coupler
CMA347$416.00
CMA270W Threaded Pipe Coupler
CMA270W$31.20
CMS261W Column Cut-Off Adapter
CMS261W$42.40
CMS261 Column Cut-Off Adapter
CMS261$42.40
CMA152, Threaded Pipe Coupler
CMA152$45.60
Decorative Ring, 1.9 Inch ID, CMS/CPA Fixed/Inner Adjustable Column
CMA640$17.60
Questions about this part
Will the CMS024 work with my existing ceiling plate?
Yes, this column is designed for use with any Chief 1.5" NPT ceiling plate or compatible accessory to facilitate secure mounting.
What is the weight capacity of the CMS024 extension column?
This 24 inch extension column is rated for a maximum weight capacity of 500 lbs (226.8 kg).
What do I need to buy to complete this installation?
You will need a compatible 1.5" NPT ceiling plate or accessory to mount this column, and you may require accessories like the CMA502 Single Electric Outlet Coupler for cabling.
Is the CMS024 TAA compliant for government projects?
Yes, the CMS024 is TAA compliant and carries a UL Listing.
Are there other lengths available for this series?
Yes, this is part of a series that includes various lengths, including 12 in, 18 in, 36 in, and 48 in options.
