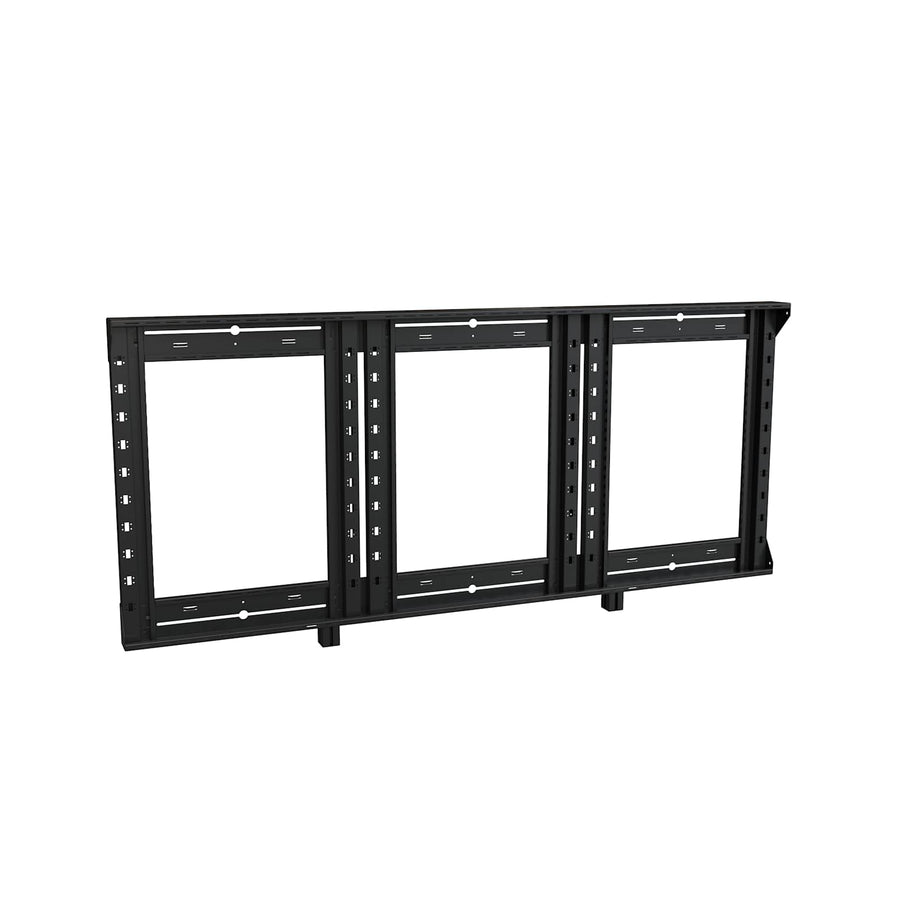

C3 Series Credenza Frame, 3 Bay, 32 Inches High
3-bay steel credenza frame, 32 in high, 300 lbs capacity, for integration with C3 Series Woodkits
The Middle Atlantic C3-FF32-3 is a 3-bay steel credenza frame designed to serve as the structural foundation for professional AV integrations. Standing 32 in (81.3 cm) high, this frame allows installers to mount AV equipment directly to the wall before the final aesthetic layer is applied. Once the hardware is integrated, the C3 Credenza woodkit is installed onto this frame to conceal the system in plain sight. This 69.9 in (177.6 cm) wide steel structure provides a high-capacity mounting solution with a 300 lbs (136 kg) weight limit. It is TAA compliant and manufactured in the USA. To facilitate internal organization, this model includes two LL-VP2110 vertical plates for mounting small devices and comes with SNAPTOGGLE anchors for secure installation into cinderblock or steel-studded walls. For optimal stability and thermal management, the frame includes integrated feet for airflow when used with optional display mounts.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 3.5 in (8.9 cm) |
| Height | 32 in (81.3 cm) |
| Product Weight | 37.7 lbs (17.1 kg) |
| Shipping Weight | 103 lbs (46.7 kg) |
| Weight Capacity | 300 lbs (136 kg) |
| Width | 69.9 in (177.6 cm) |
| Available Internationally | Yes |
| Color | Black |
All other specifications 8
| Federal Ops Country of Origin | USA |
| Material | Steel |
| Mounting Hardware Included | Yes |
| Number of Bays | 3 |
| TAA Compliant | Yes |
| UPC | 656747390043 |
| Certifications | TAA |
| Patents | www.legrandav.com/patents |
Resources
You'll need these with it
32 Inch C3 Single Display Mount System
C3-32-LD1U$1,439.10
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
C3 Credenza Shelf Kit
C3-SHELFKIT$241.20
ConferenceSHOT ePTZ Camera
999-21050-000$1,018.80
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
Rackmount Power, 2 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-2$462.60
Lever Lock Vertical Plate 17.1 Inches High, 10 Inches Wide
LL-VP2110$53.10
Forward C Style Ring Cable Management - 36 Pieces
FWD-C-RING-36$465.30
Forward C Style Ring Cable Management - 12 Pieces
FWD-C-RING-12$161.10
Forward C Style Ring Cable Management
FWD-C-RING$18.00
Forward Small Device Mounting Clamps - 4 Pack
FWD-SIDECLMP-4$23.40
Questions about this part
Will this frame fit my C3 Series Credenza woodkit?
Yes, this C3-FF32-3 is a 3-bay frame specifically built for use with C3 Series Credenza woodkits to conceal your AV equipment.
What equipment mounting options are compatible with the C3-FF32-3?
The frame accepts the C3 Shelf Kit, C3 Slide-Out Tech Kit, C3 Stationary Tech Kit, and C3 Single Display Mount options.
What hardware is included for mounting to different wall types?
This frame includes SNAPTOGGLE Anchors for installation in cinderblock or steel-studded walls, along with mounting hardware.
Can I use this frame with a single display mount?
Yes, it is compatible with C3 Single Display Mount options and includes integrated feet to provide stability and airflow when using a display mount.
What is the total weight capacity of the C3-FF32-3 frame?
The steel frame has a total weight capacity of 300 lbs (136 kg).
