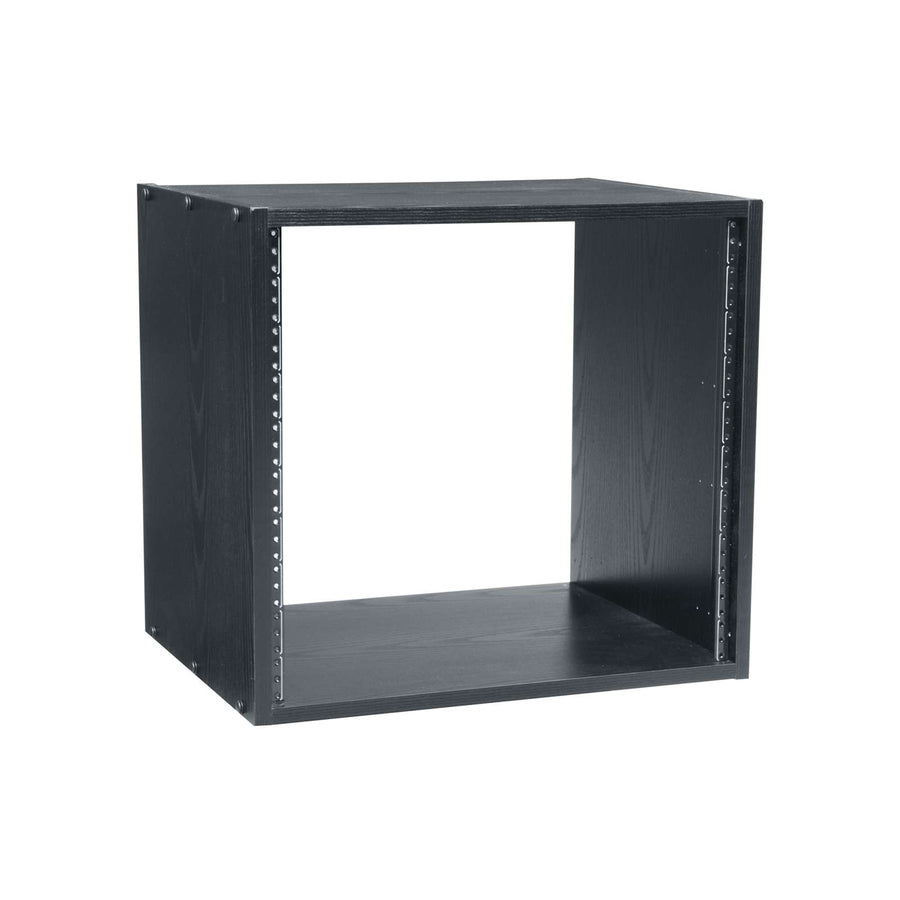

BRK Series Black Laminate Rack - BRK8-22
8 RU wood grain laminate rack with 22-inch depth, 200 lbs capacity, and knockdown design
The Middle Atlantic BRK8-22 is an 8 RU laminate rack featuring a black wood grain finish. This knockdown-style rack is designed for easy, flat-shipment via UPS, making it an efficient choice for logistics and site delivery. It comes with 10-32 threaded front and rear rackrails included, providing a secure mounting solution for various AV components. The unit has a 22 in (55.9 cm) total depth with a usable depth of 21.5 in (54.6 cm). Designed for versatility, it supports a weight capacity of 200 lbs (90.7 kg). For expanded functionality, a RKW caster kit or RKW-HD heavy-duty caster kit can be added to the base. For cable management and component organization, this series is compatible with various accessories, including the RK-RAP8 rear access panel and various rackmount power solutions from Middle Atlantic.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 22 in (55.9 cm) |
| Height | 15.63 in (39.7 cm) |
| Rack Units | 8 RU |
| Usable Depth | 21.5 in (54.6 cm) |
| Usable Height | 14 in (35.6 cm) |
| Weight Capacity | 200 lbs (90.7 kg) |
| Width | 20.7 in (52.6 cm) |
| Finish | Black Wood Grain |
| Material | Wood |
| Rack Rail Type | 10-32 |
| Rack Type | Knockdown |
| UPC | 656747099465 |
Resources
You'll need these with it
Rackmount Power, 9 Outlet, 15A, Basic Surge Protection - 20 ft Cord
PD-915RC-20$264.60
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Rackmount Power/Cooling, 11 Outlet, 15A & 2-Stage Surge
PDCOOL-1115R$846.00

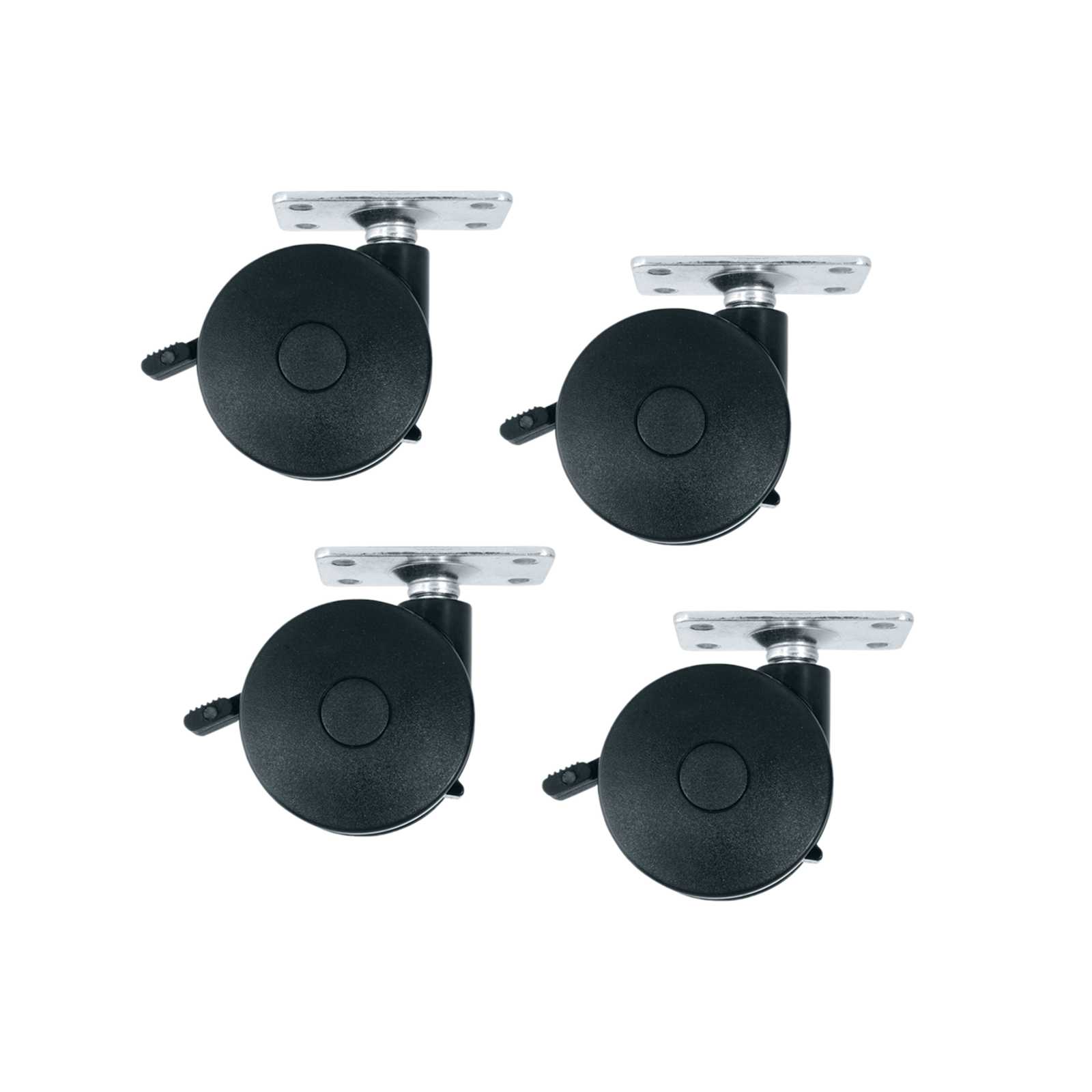

Caster Kit for Laminate Racks Heavy Duty
RKW-HD$135.00
1 RU Utility Rackshelf, 10.75 Inches Deep
U1$72.90

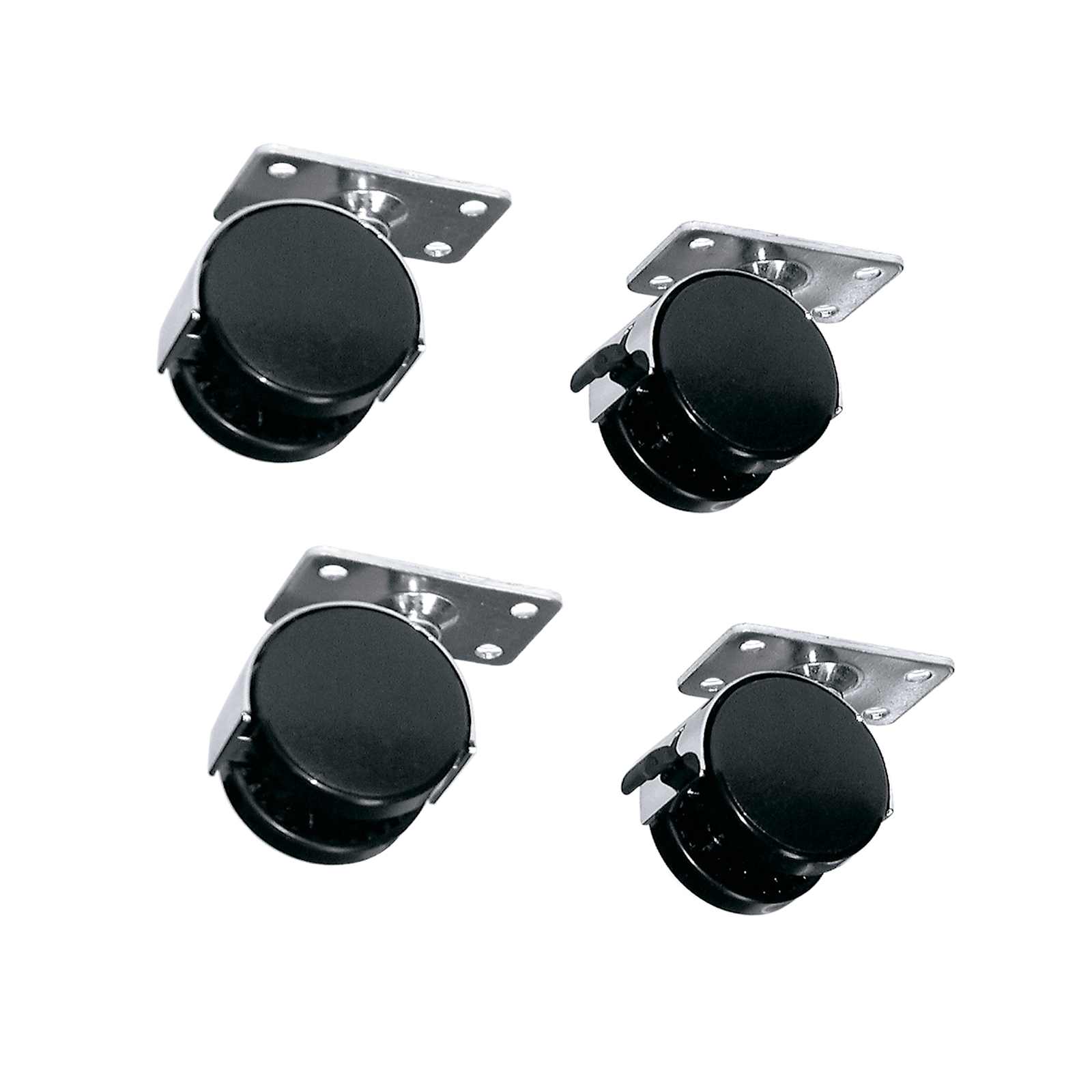

Caster Kit for Laminate Racks
RKW$92.70
10-32 Rackscrew Truss-Head - 25 Piece
HPS$13.50

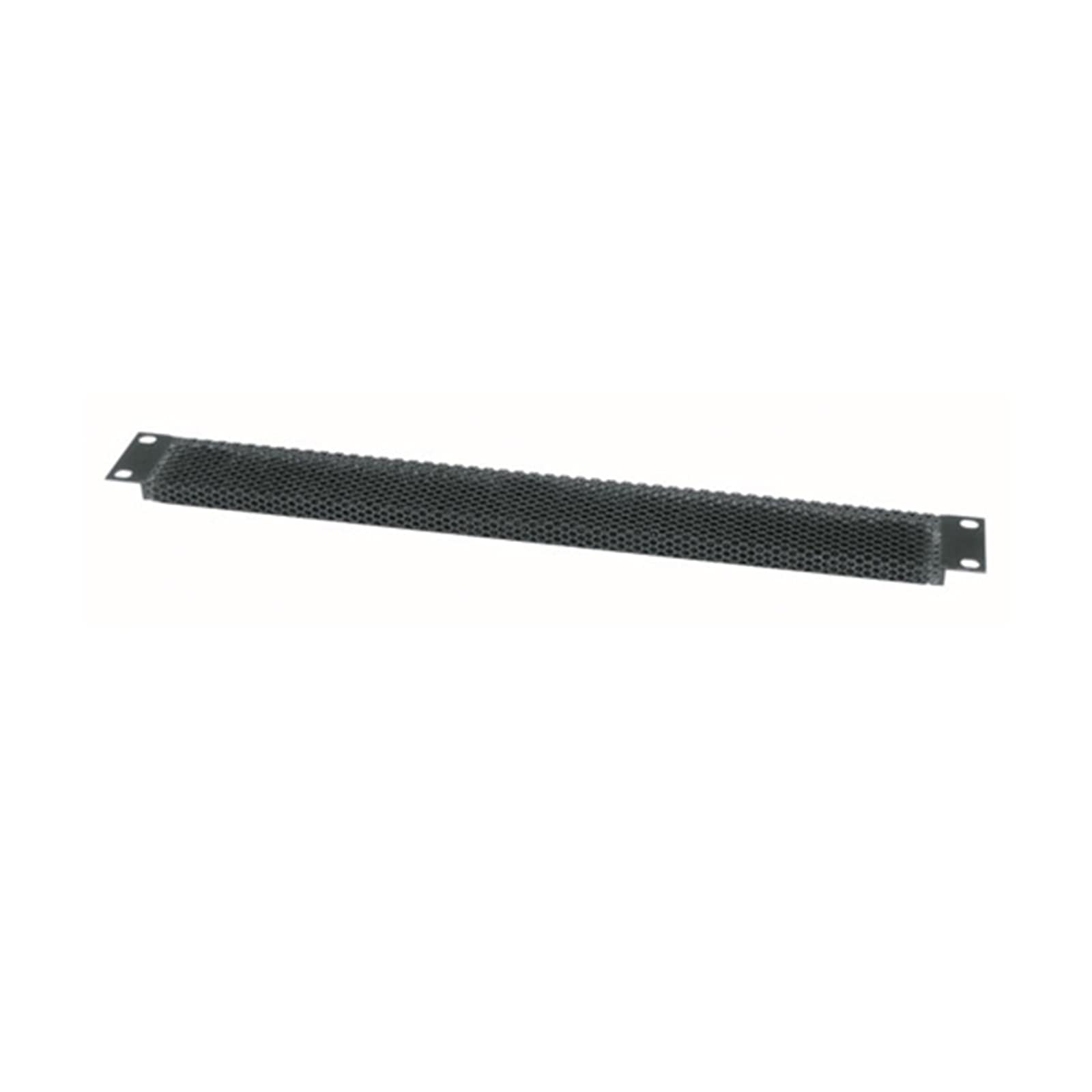

1 RU Rack Vent Panel, Light Blocking with 64% Open Area
VTB-1$42.30
Rackmount Power, 8 Outlet, 15A, Basic Surge Protection - Anodized
PD-815RA-PL$549.00
8 RU Rear Access Panel for BRK, MBRK,OBRK,RK Laminate Racks
RK-RAP8$172.80
4 RU Flat Blank Rack Panel, Aluminum
PHBL-4$40.50
Questions about this part
Will the BRK8-22 fit my equipment depth?
This rack has a total depth of 22 in (55.9 cm) and offers a usable depth of 21.5 in (54.6 cm) to accommodate your hardware.
What accessories are compatible with this rack?
You can add a RKW or RKW-HD caster kit for mobility, an RK-RAP8 rear access panel, or a U1 utility rackshelf.
Does this rack require a specific mounting style?
The BRK8-22 uses 10-32 threaded front and rear rackrails for standard equipment mounting.
Is the BRK8-22 TAA compliant?
Yes, this product is TAA compliant and also carries a PEP certification.
How much weight can I mount in the BRK8-22?
The rack has a rated weight capacity of 200 lbs (90.7 kg).
